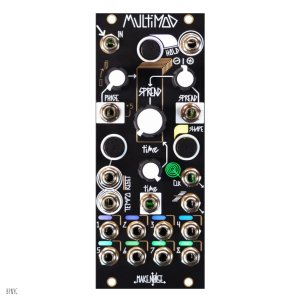

Make Noise MultiMod　

With MultiMod...from one control signal, we create many.



In a modular synthesizer, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.



Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.



When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.



MultiMod is built with our latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analog eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.



Features



Generate vari-speeded, phase modulated copies of any modulation signal.

Dramatically control 8 CVs with just 3 fully modulatable parameters.

Multiple unique read shapes for varying traversal through copied signals

Tempo/Reset inputs and Clock output for temporal system integration

Hold feature for looping captured signals

Ultra-Wide 20V p-p I/O ranges approach analog maximums of the eurorack system

Full TechniColor, Maximum Blinkenlights

Calibrated to accurately pass critical control signals such as quantized pitch CV

Internally generated signals for “LFO mode” when nothing is patched to the Signal Input.



Specifications

Width: 10hp

Max depth (incl power cable): 39mm

Power:

195mA @+12V

10mA @-12V
