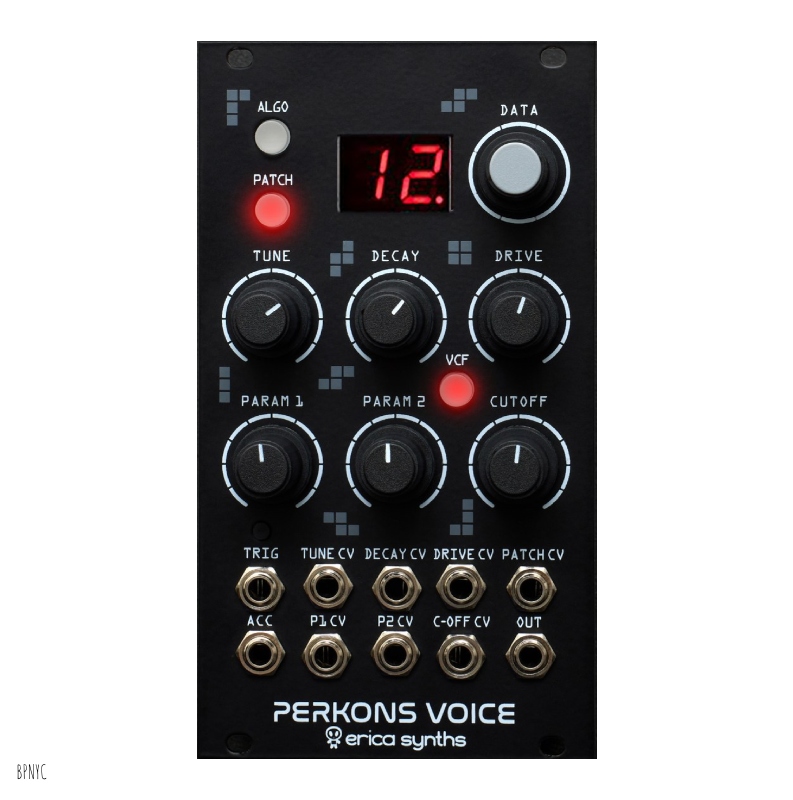

Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.
Features
- Versatile digital sound engine followed by analogue multimode VCF and overdrive
- 13 sound design algorithms
- Up to 99 user presets
- 1V/oct tuning on TUNE and PATCH CV inputs
- Drone mode
- 4-note poly overlap mode
Specifications:
| Audio output | 10Vptp |
| CV levels | configurable -5V - +5V |
| Power consumption | +59mA, -30mA |
| Module width | 14HP |
| Module depth | 35mm |
User manual — Jan. 20, 2025
