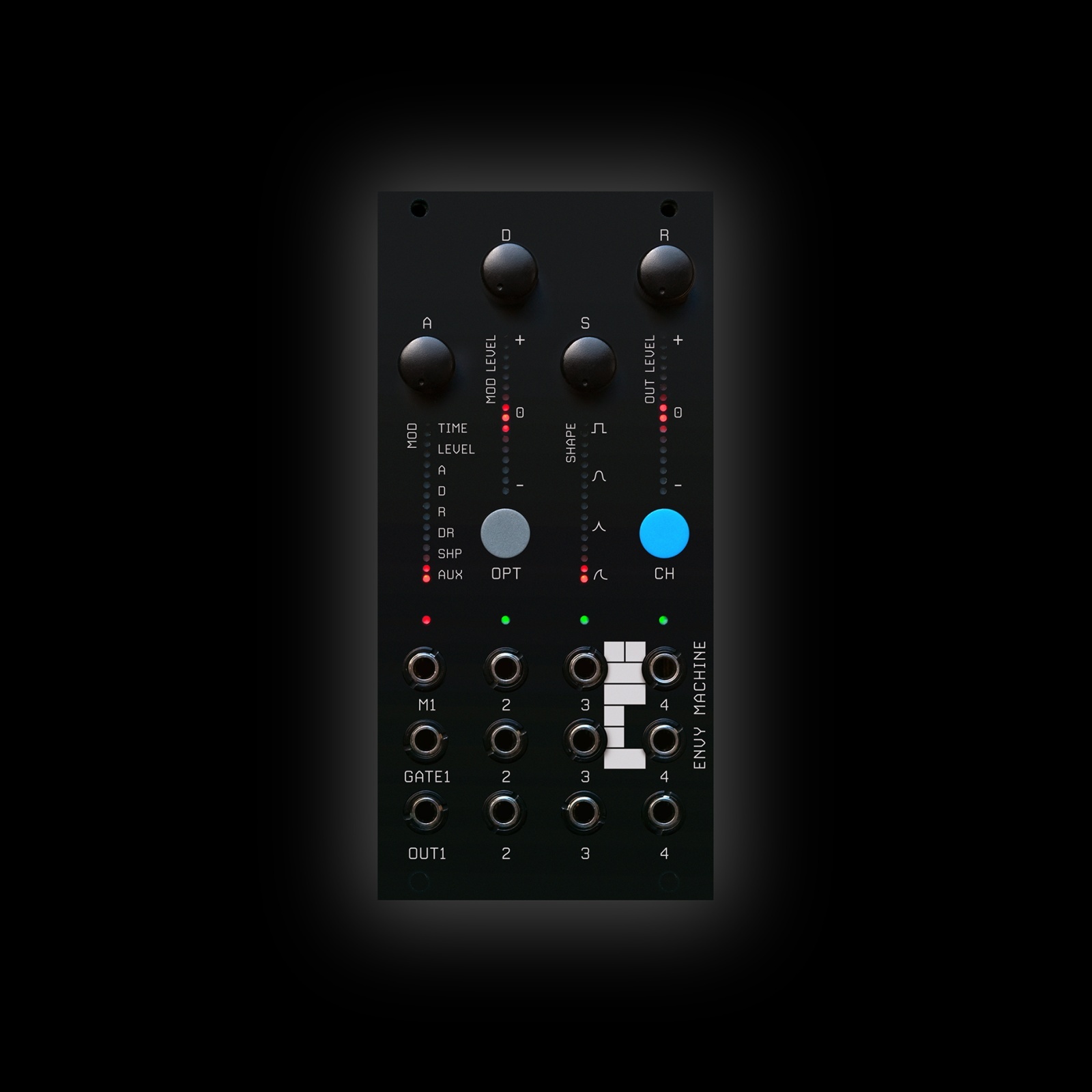

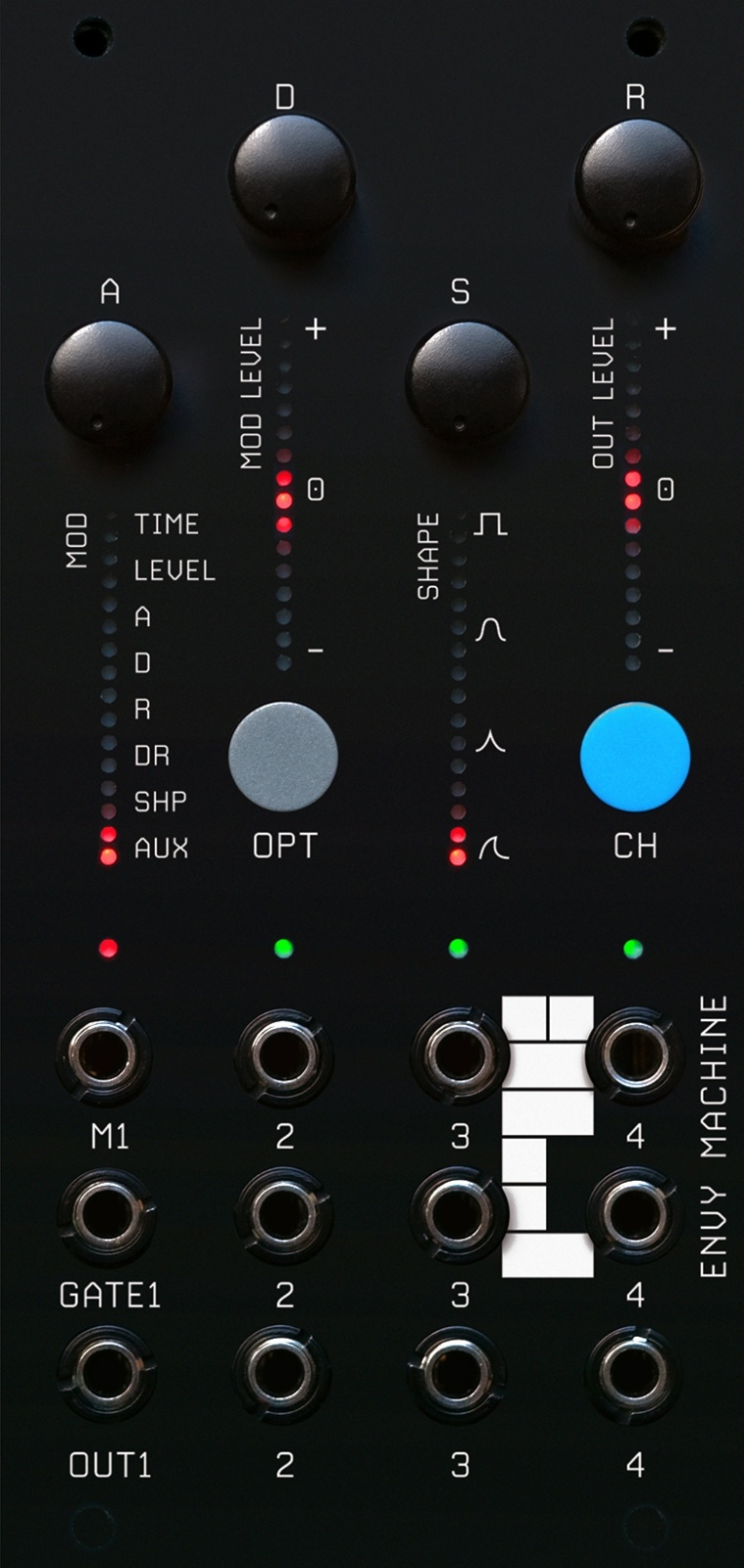

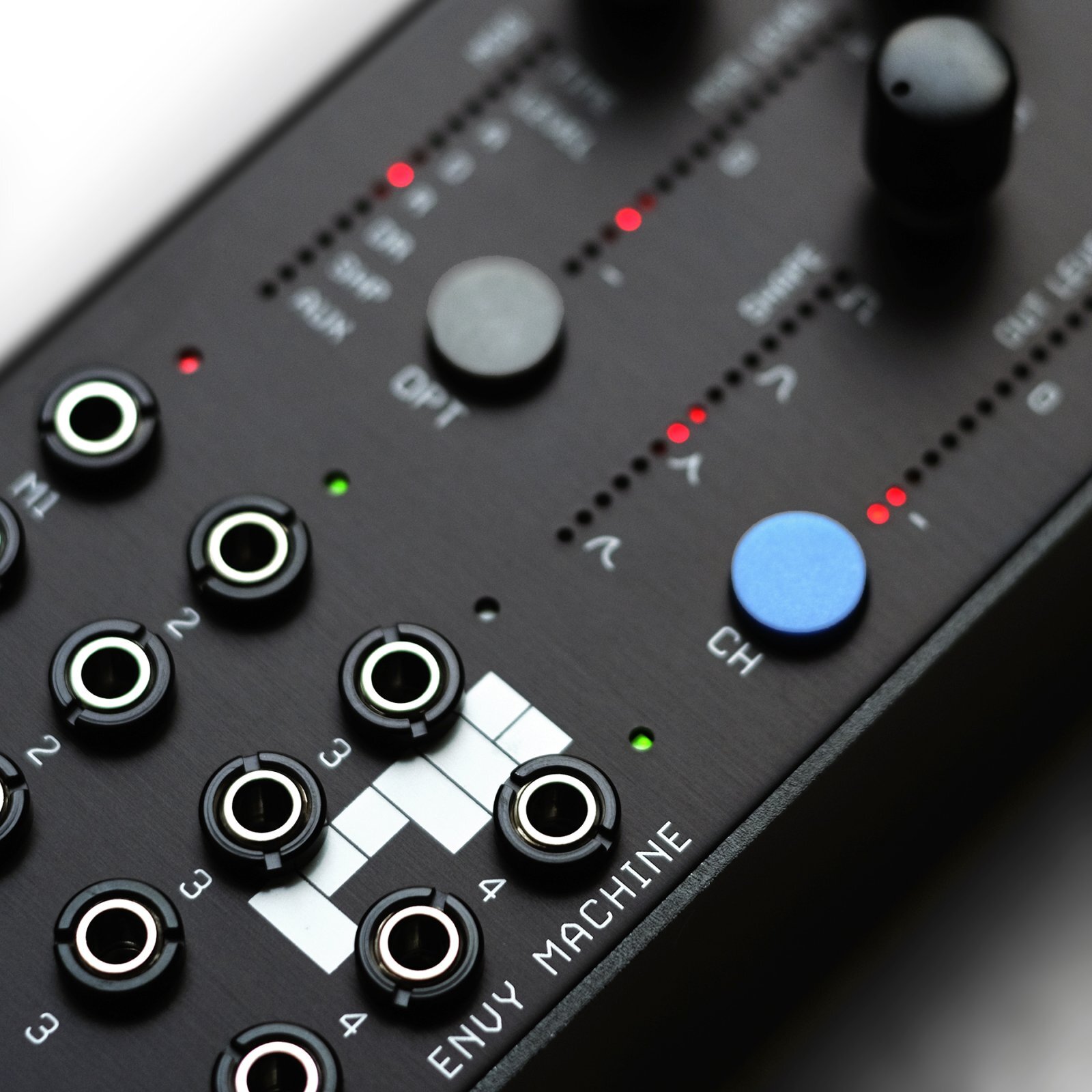

RYK Modular Envy Machine

A compact quad-channel modulation machine



Welcome to the Envy Machine !

A compact quad-channel modulation machine, with an envious array of Envelopes, LFOs, random voltages even Knob Recording.
With four channels of modulation, ENVY MACHINE makes an ideal companion to the RYK ALGO module

Each of the four channels on the ENVY MACHINE can be set to one of five super-flexible modulation modes:
- ADSR Envelope
- AD Envelope
- AD LFO
- Random Voltage
- Recordable Knob Voltage Control

Ghost hand - Parameters can be animated using KNOB RECORDING to create timed variations in your patch.
Oh, and with the dedicated MOD input per channel, you can use an external CV to control anything - TIME, LEVEL, WAVESHAPE, colour of your hair etc . . .

Polarity paradox - Modulation inputs AND channel Outputs come with bipolar attenuverters, now you can choose either bipolar or unipolar, with continuously variable level control.

Slippery slopes - WAVESHAPES are continuously variable between LOG, EXPO, SIN, TRAPEZOID, and SQUARE !

TECHNICAL SPECIFICATIONS

TIME
Envelopes: 1.5ms – 4min
LFO: 88hz – 7min
Random: 2khz - 2min

OUTPUT VOLTAGE RANGE
Envelopes: 0/8V (inverted: 8V/0V)
LFO/Random: 0/8V (Unipolar) or -5V/+5V (Bipolar)

INPUT VOLTAGE RANGE
-5V/+5V
