Dark System M1

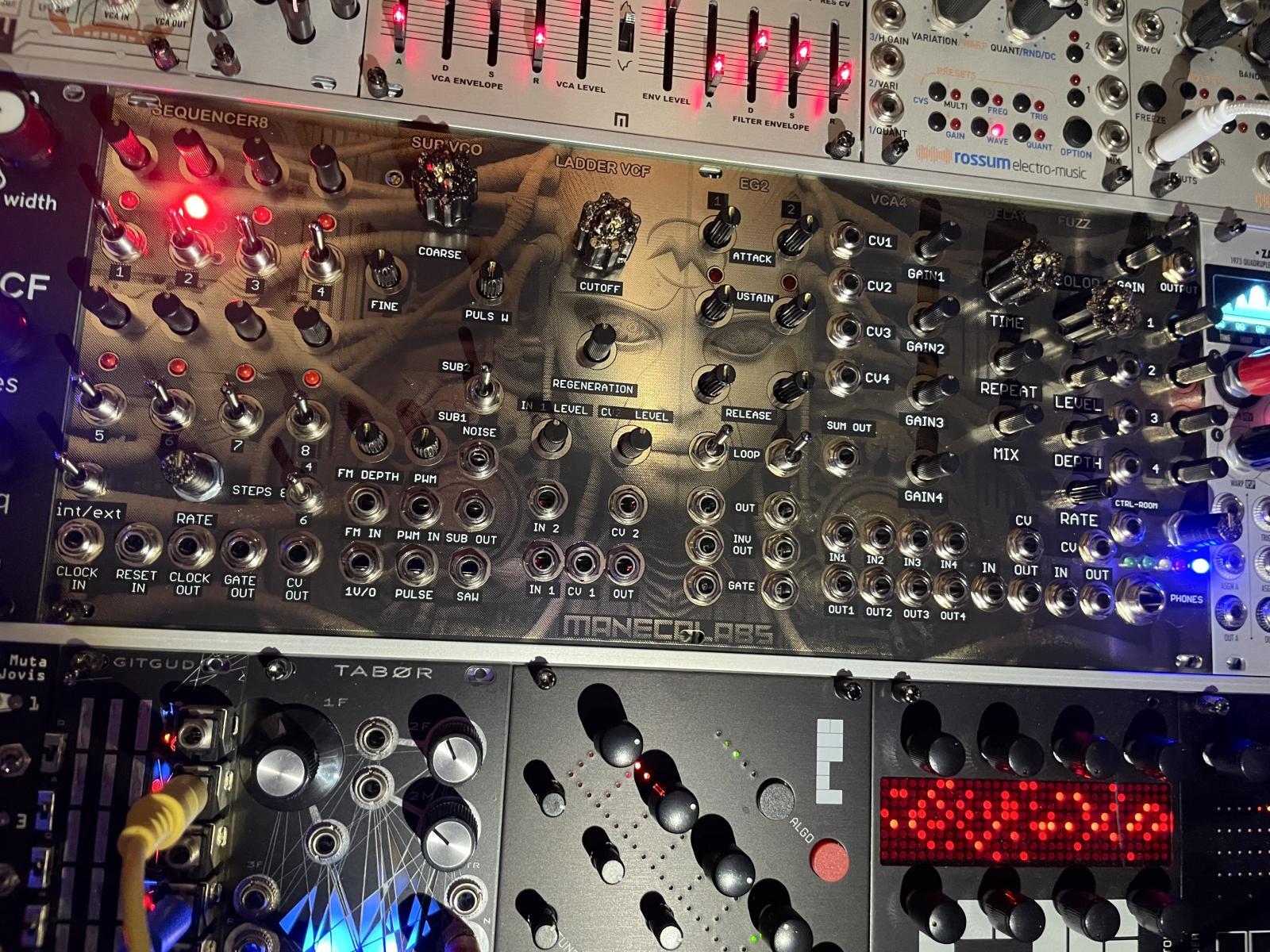

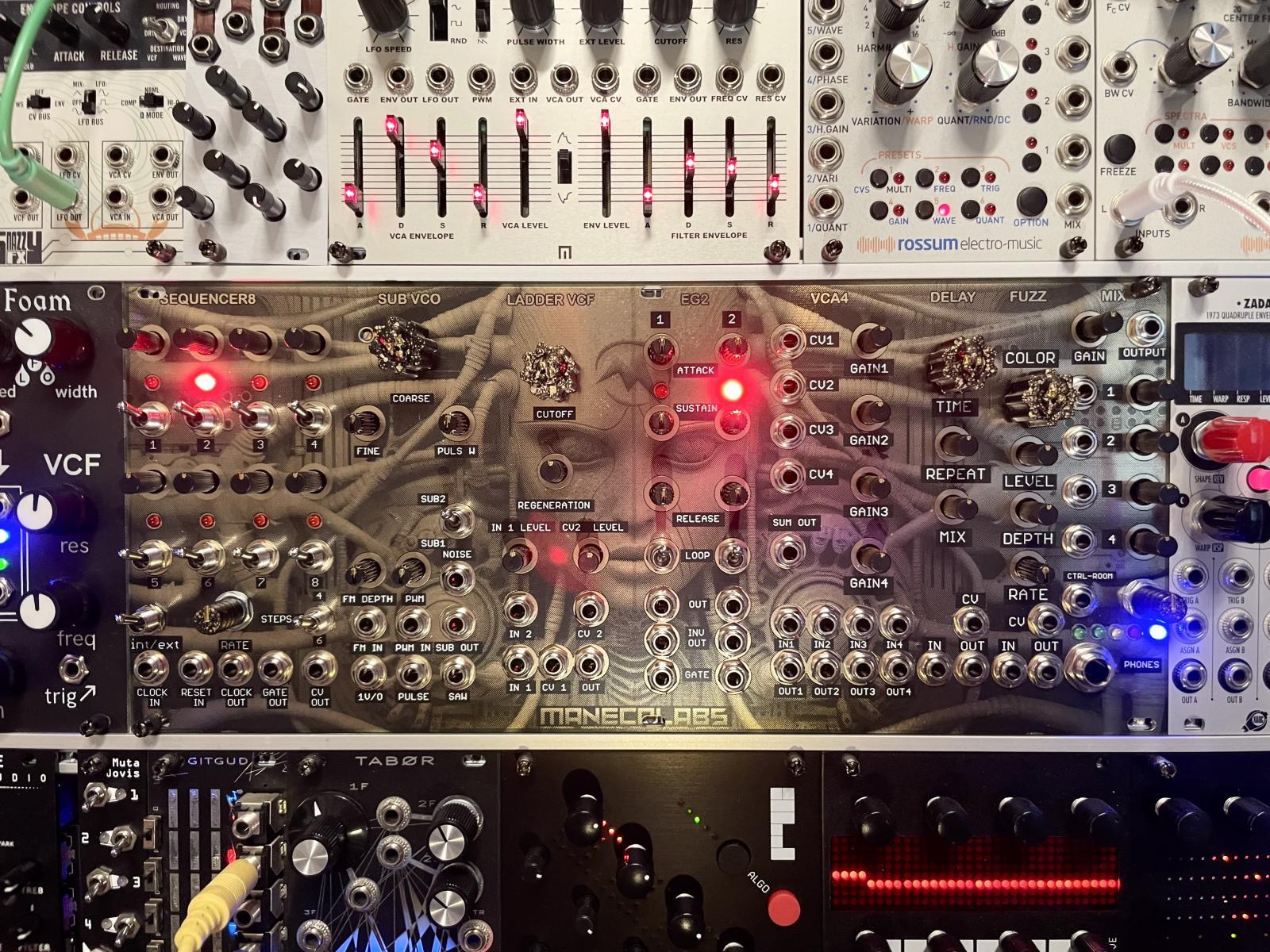

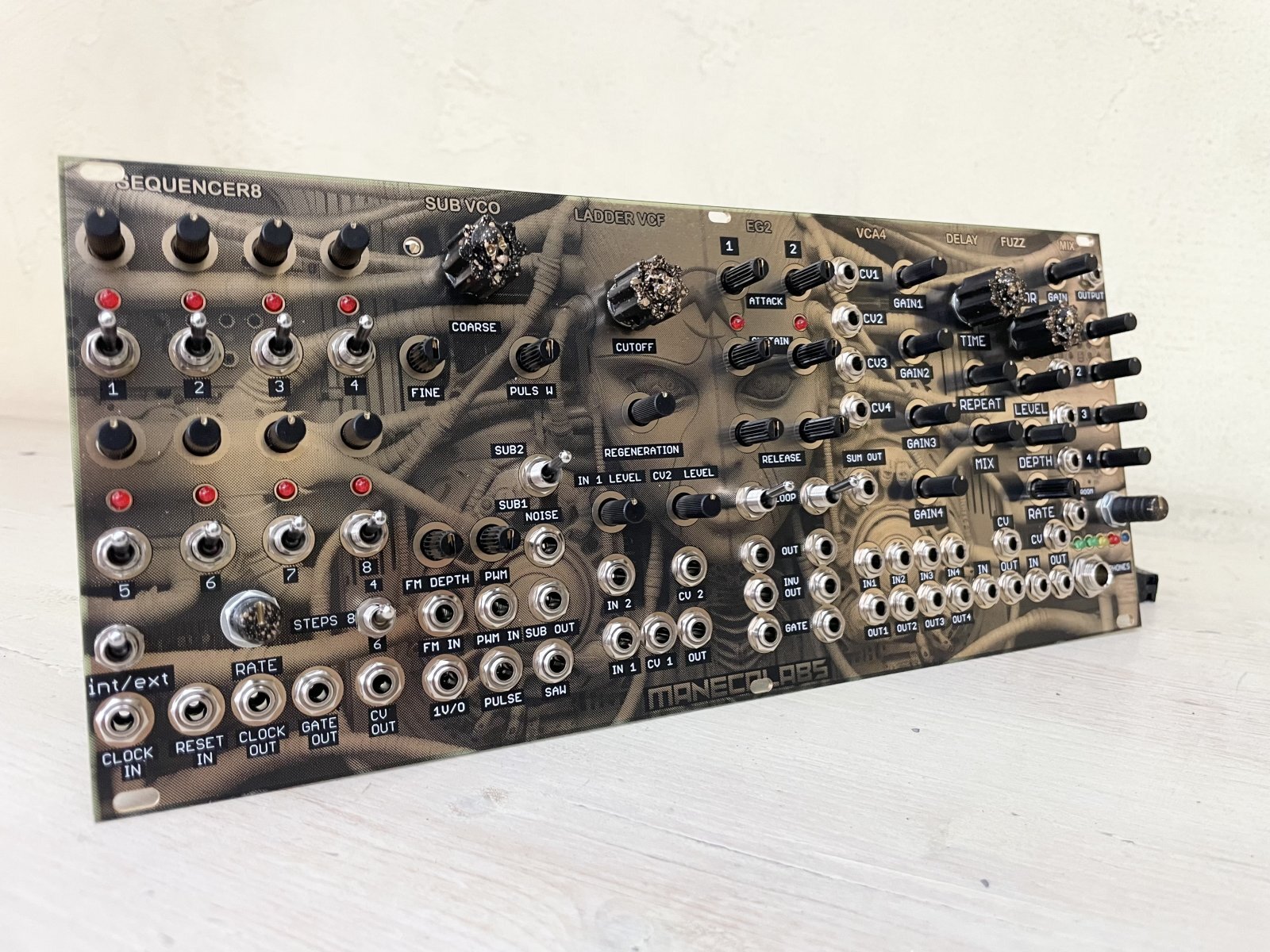

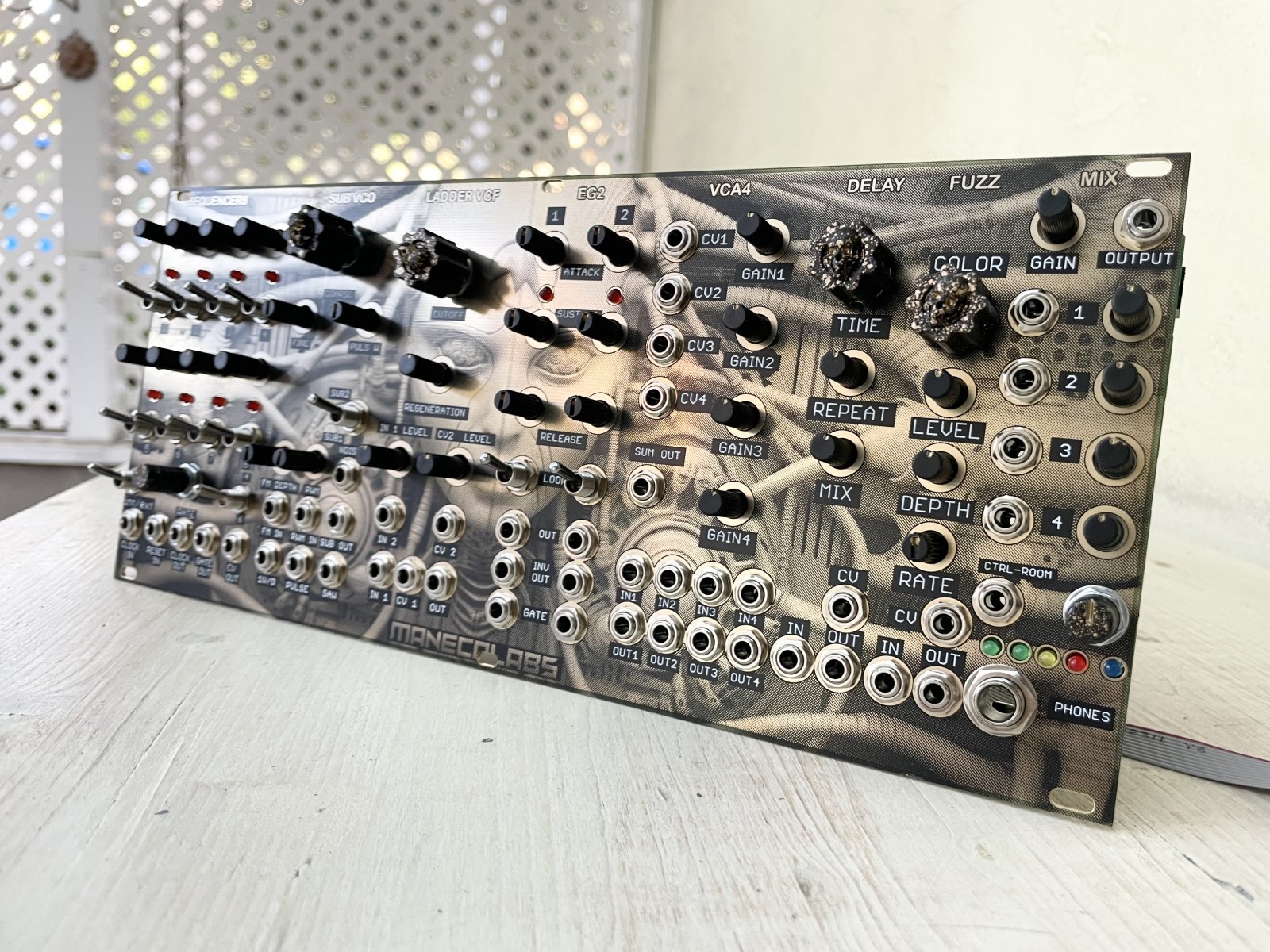

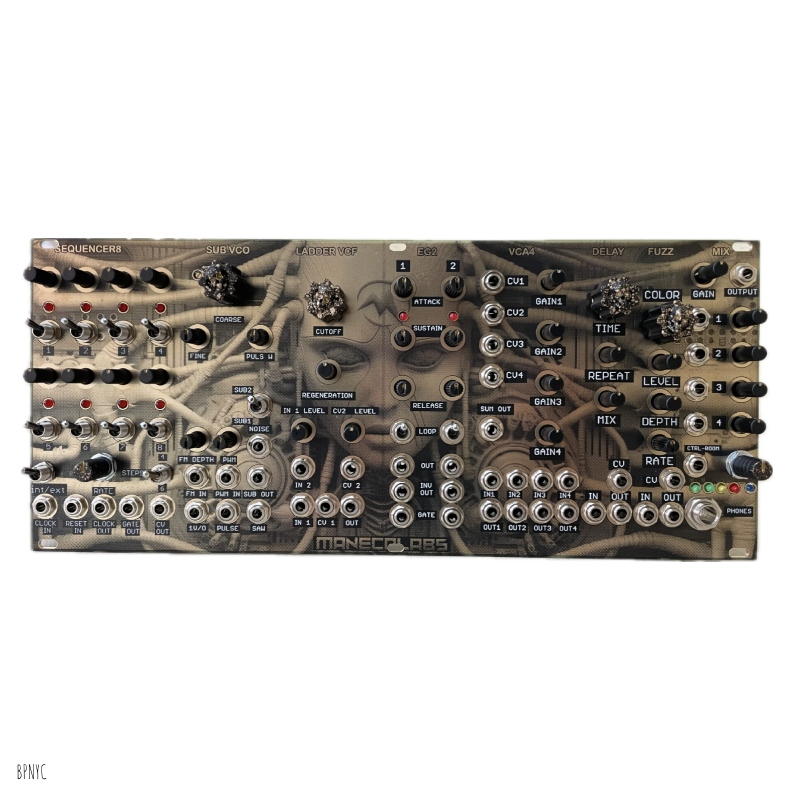

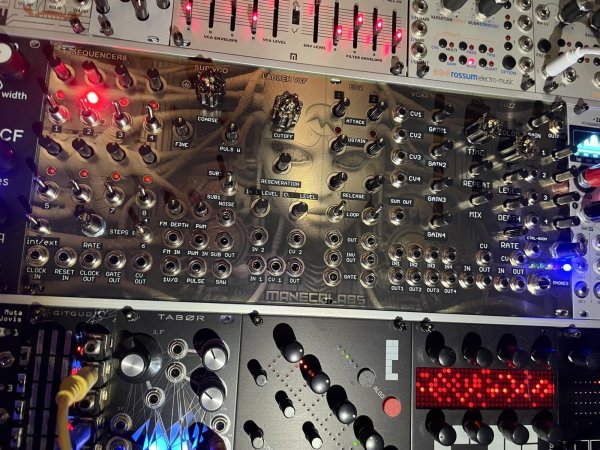

Dark system M1 is an analog modular monophonic synthesizer voice, in eurorack format, completely patchable with 8 step sequencer , fuzz and delay effects.



Modules:

1-Sequencer 8 , a modern version of the classic Baby8 analog sequencer.



2-Sub Vco , sawtooth and pulse oscillator, 1 v per octave compatible, also includes a noise source and one or two octaves sub square waveforms, selectable with toggle switch.



3-Transistor ladder VCF , modern version of the classic moog ladder filter, capable os self oscillating



4-EG2 , dual ASR envelope generator, with loop capabilities for use as a sort of low frequency oscillator.



5-VCA4 , quad voltage controlled amplifier, with per channel gain and summed output for use as a voltage controlled mixer



6-Delay , pt2399 based , with modulation input and self oscillations



7-Crash Fuzz , a wild square wave fuzz , with modulation over pulse width (color) , and internal triangle LFO for modulating color



8-HRmixer , 4 channel mixer with global gain, vu meter led level indicator, and headphone output.



Specs :

dimensions : 58HP width m 3U height in Eurorack standards
