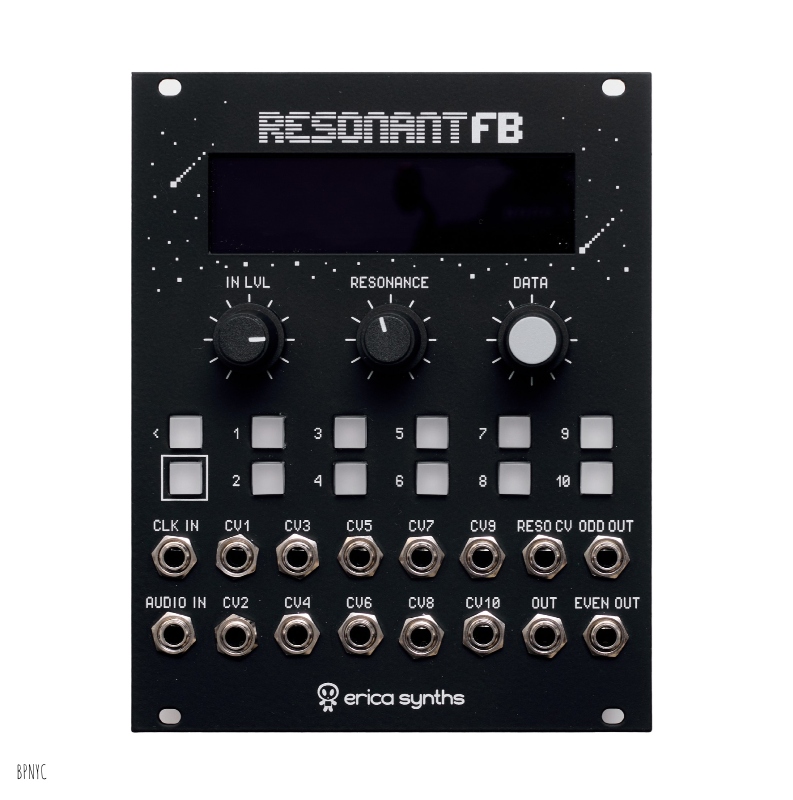

Erica Synths Graphic Resonant FB 次回入荷分
The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands’ boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.
Features
- Analogue 10 band filterbank
- Saveable presets for filterbank, filter modes, dynamic EQ, and resonance settings
- Main, even and odd outputs
- Manual and voltage-controlled band boost/cut
- Configurable resonance feedback loops
- Manual and voltage-controlled resonance
- Clock input for synchronization of events with a master clock source
- Multimode filter mode
- Spectral analyzer mode
- Dynamic spectral compressor mode
- Discrete and morphing pattern change
- Configurable CV inputs
- Expander module for immediate access to band levels
- Skiff-friendly design
SPECIFICATIONS:
| Audio signal amplitude | 10Vptp |
| Bandpass filter frequencies | 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10% |
| CV input amplitude (configurable) | -10V - +10V |
| Number of presets | 128 |
| Panel width | 20HP |
| Module depth | 30mm |
| Power consumption | (with EXP) 138(145)mA@+12V,50mA@-12V |
Erica Synths Graphic Resonant FB 次回入荷分
販売価格: 65,241円 [通常販売価格: 65,900円]
重さ: 1lb
＊＊＊ お問い合わせ＆予約受付中 ＊＊＊
当店で扱っている各商品は大量生産ではありません。 メーカーにも在庫に限りがあります...
確実に欲しい商品に関しては早めに予約／在庫確認する事をおすすめします...
