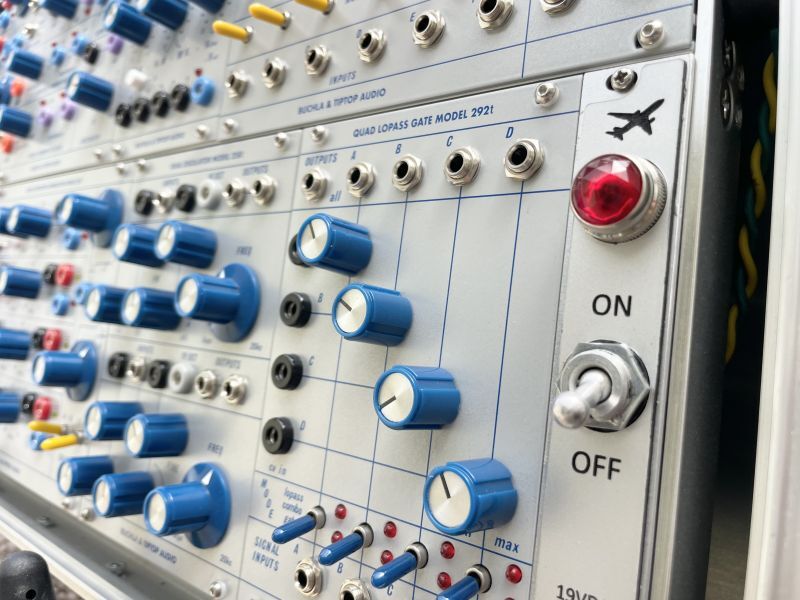

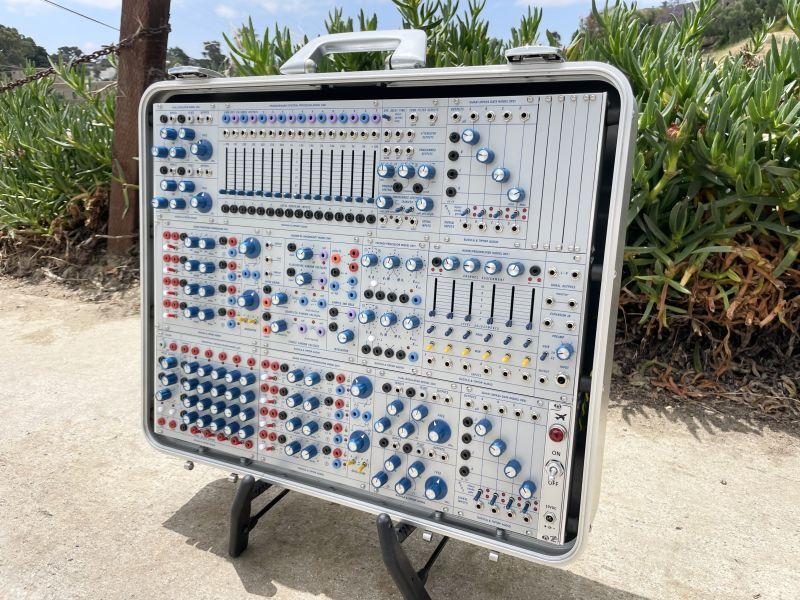

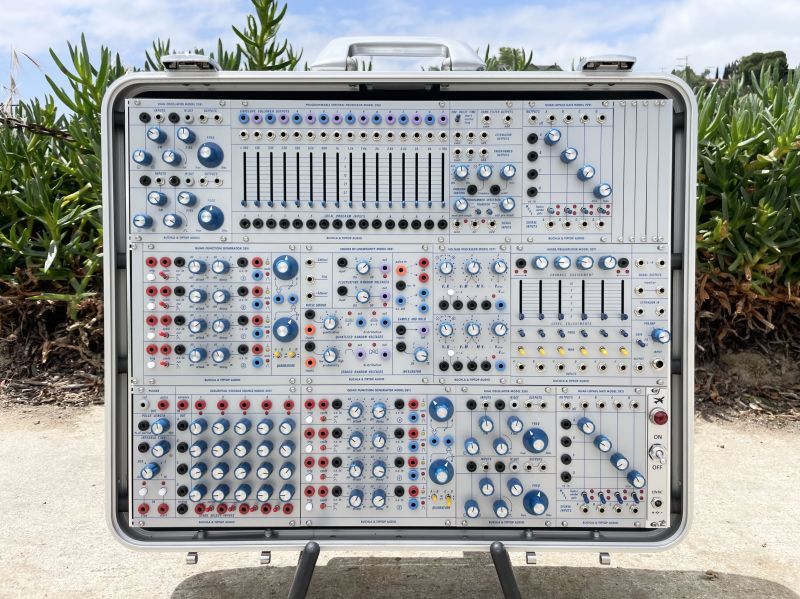

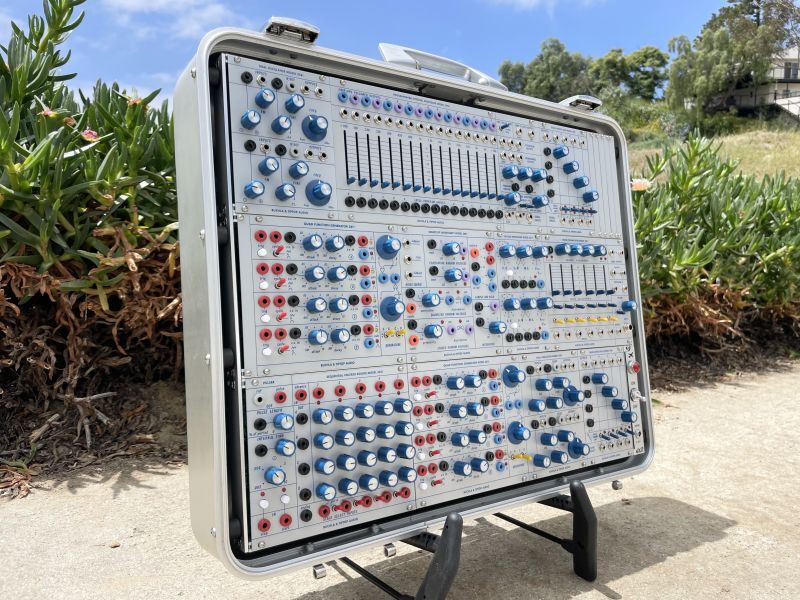

Buchla Tiptop 200t series with BPNYC ZERO Halliburton Eurorack Modular Travel Case 9U　要予約

9U BPNYC Original Zero Halliburton Eurorack Modular Travel Case

with

258t x2

296t x1

257t x1

292t x2

281t x2

266t x1

207t x1

245t x1

2hp Blank x3 sets (Total 6x 2hp blank)

----------------------------------------------------------------------------------------------

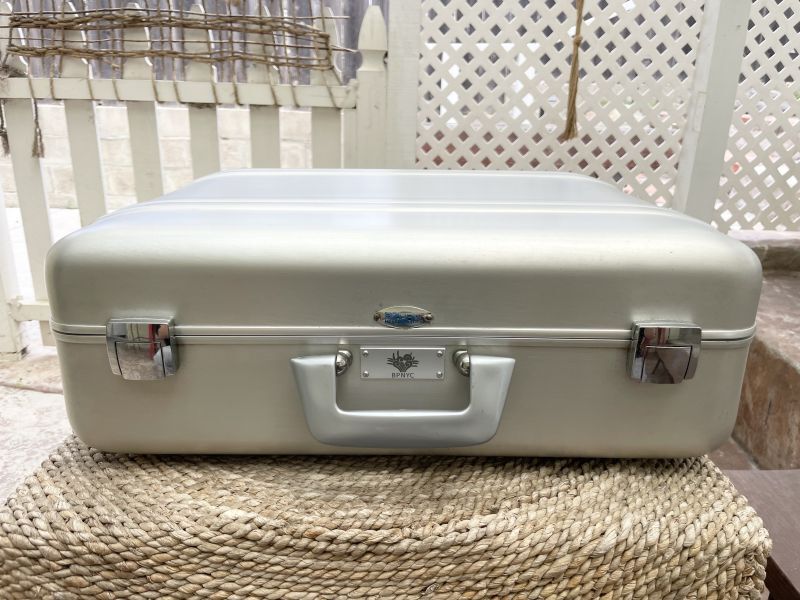

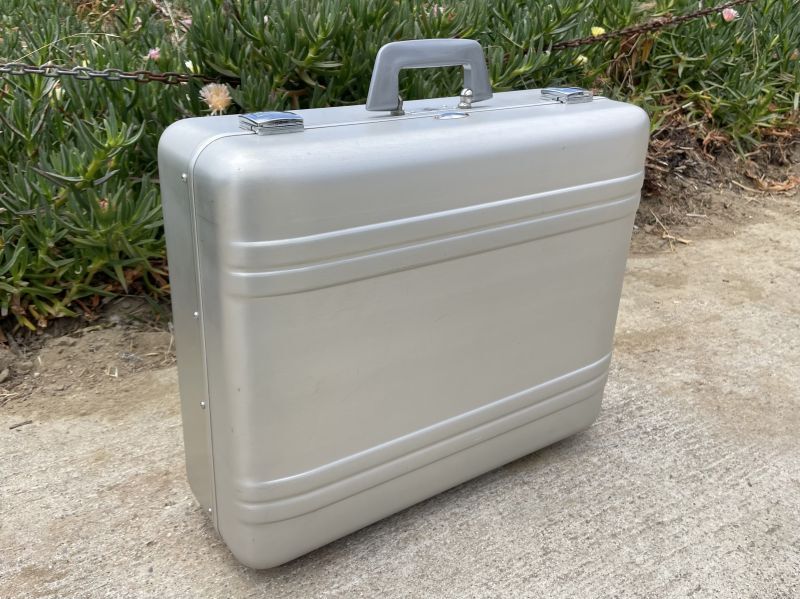

BPNYC ZERO Halliburton Eurorack Modular Travel Case

One of a kind eurorack modular case!

I used to work at vintage clothing store in NYC. One day customer brought in 2 Vintage　Halliburton travel case. That was the first time I actually learned about this cool travel case.

I fell in love with this space age/spy movie/durable design and aluminum material right away. Since then I always wanted one for myself but never had an opportunity for some reason.

In Eurorack modular world, case is essential to power up the module and also to protect modules…

Everybody spends hundreds of dollars on their modules but a lot of them don’t like to spend much on their cases… I have a completely opposite of that idea. I would want a case that’s durable and also shows your character and aesthetic.

That’s when I realized that I wanted to do make one of a kind case that’s beautiful and original, also strong. Vintage Halliburton case fulfilled all my needs on that. Indeed these cases are designed to survive tough condition on all sorts of traveling and on top of that they look cool. It will protect your modules and you will stand out at the show with this space looking design. You can find pictures of Beatles traveling with this case or Apollo 11 Astronauts carry moon rocks back to earth in a Halliburton case!!!

These cases are made for different scenarios. They are made as for traveling/camera equipment/business brief case… at BPNYC we would like to convert these cases into one of a kind Eurorack Modular Cases!!! Just like Don Buchla was using Halliburton cases for their Music Easel back in the day??  How cool is that?

Here is how it works to build each one of this unique case:

1.finding a right size case that’s suitable for Eurorack.

2.get rid of unnecessary parts and clean up… (ie: brief case folders or whatever inside the case and sometimes stuff on outside)

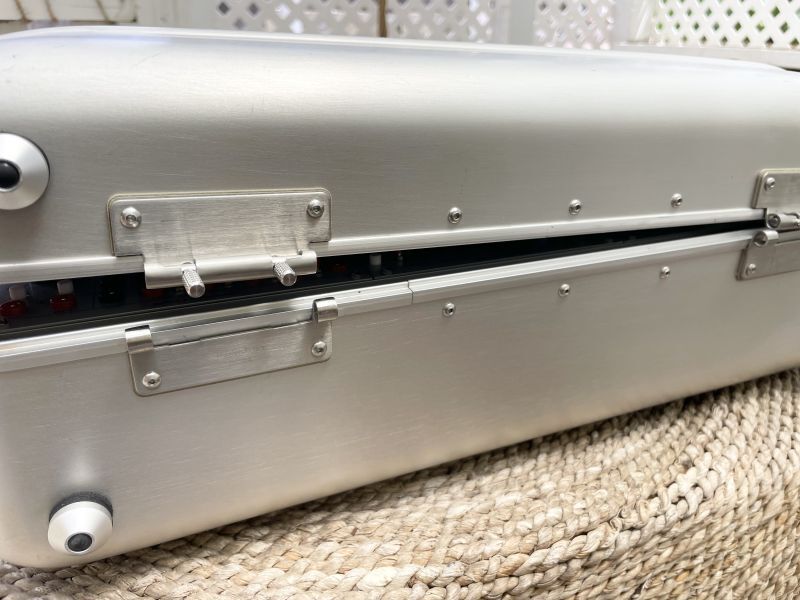

3.removing original long hinges that connects top and bottom case and adding removable hinges(so that case top comes off). Also replacing all four feet to slightly taller ones so it doesn’t damage new hinges.

4.installing eurorack power bus, rails…

*Each case I find is in different condition so they all require slightly different jobs…

*There are a lot of small details to make each cases look nice and function properly~

All cases are already in vintage used condition so they all have scratches and imperfections but that’s part of the cool patina factor for these cases!

9U Case = 3U+3U+3U  96hp/Row Total 288HP(-4hp for power module)

-------------------------------------------------------------------------------------

This case is powered by Konstant Lab SeventyPWR SET – 70W Eurorack power supply

Description

SeventyPWR SET – includes a small 70W power board (zero HP) (+12V / 2.5A, -12V / 2.5A, +5V / 2A), power inlet panel with switch, two Filtered bus boards #1 – each of them has 18 output headers (6 filtered and 12 direct) or Filtered bus boards #2 – each of them has 19 output headers (6 filtered and 13 direct) which ensures that you will be able to power up quite a lot of modules, 90W Meanwell power brick, wires, spacers, and screws.

SeventyPWR is a small but powerful and precise PSU solution. It is sturdy and stable PSU with immunity against high startup currents which require some modules. You can mount it into your synth case without sacrificing any HP. SeventyPWR is safely supplied from an external DC power brick (18-24V).

Filtered Bus Board is a low profile bus board with extra filtered output headers. Bus board contains 18 or 19 output headers (depends on what kind of bus board you chose). 12 (13) direct headers and 6 filtered headers with LC filters. Filtered headers are specially dedicated to feed analog modules that are sensitive/susceptible to power quality. Filters reject noise caused by PSU and digital modules by 70%. Each power rail is protected against over voltage so your modules and system are safe under all conditions. 90% of the bus board area has only 11mm with inserted connectors. This feature makes Filtered bus board an ideal power distribution solution for skiff cases where depth is a concern.

Technical Information
DIMENSIONS: 43 × 30 × 6 cm

WEIGHT:1500 g

POWER: 70W

OUTPUT: +12V / 2500mA, -12V / 2500mA, +5V / 2000mA

TYPICAL OUTPUT RIPPLE NOISE: under 17mVpp / 20MHz BW

NUMBER OF HEADERS:Filtered bus board #1 option – Total 36 angled output shrouded headers

OTHER FEATURES:Overvoltage protection on PSU also on each bus board – keep your modules safe
High quality shock resistant "Push to Connect" terminals
Unique LC filtering circuits
LEDs indicate presence of voltage and voltage drop
Easy for montage and connection
Meanwell power brick with worldwide input range

PLUG:USA Plug

BUS BOARD VERSION:Filtered bus board #1 – angled connectors

-------------------------------------------------------------------------------------------
