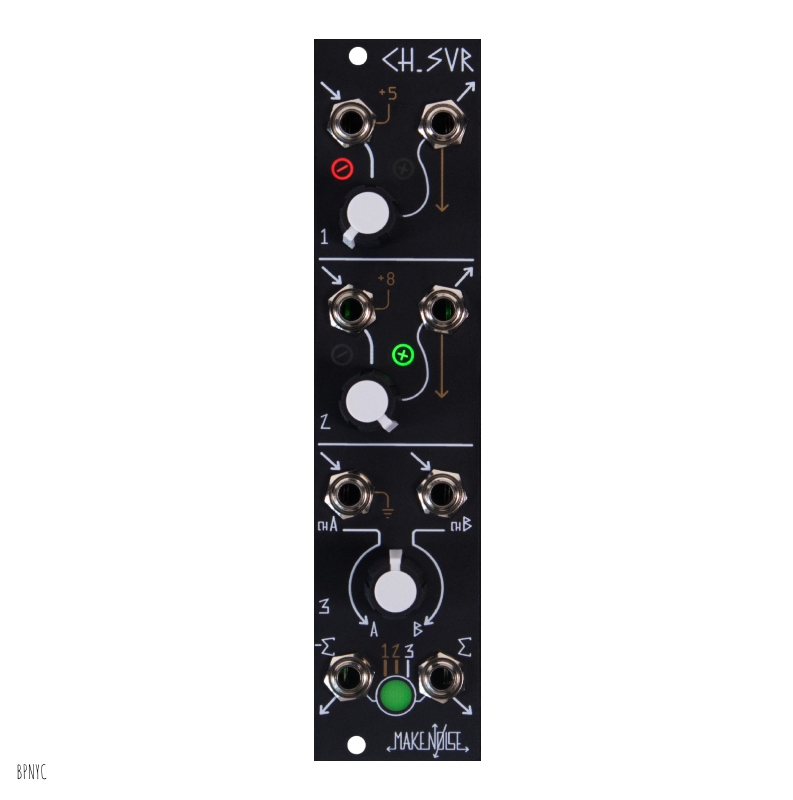

Make Noise Channel Saver　

The Channel Saver music synthesizer module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.



Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2

Generate DC offsets when Channel 1 or 2 is unpatched

Crossfade between two signals, or attenuate one signal, using Channel 3

SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.

Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels

Anywhere you need more subtle modulation, Ch. Svr is there for you… now all your eurorack slivers may have subtle and intentional modulation they deserve!



Specs:

6hp

20mA @+12V

10mA @-12V

30mm depth (incl. power cable)
