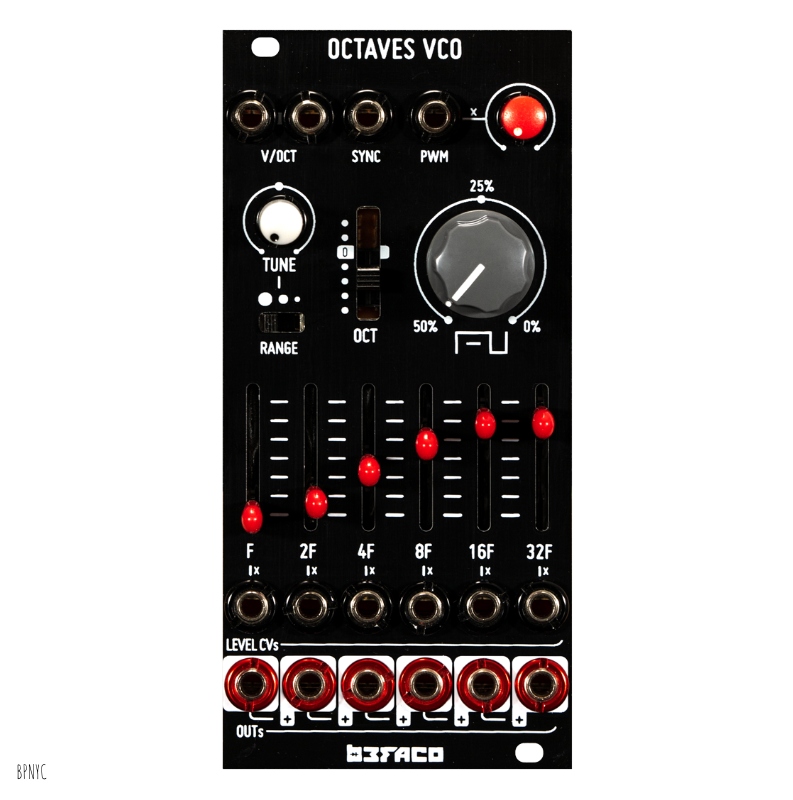

OCTAVES VCO

A harsh and funky take of an additive Oscillator.
Pile up multiplications of your frequency to get a lo-fi-retro wall of squared sound!
You get six doubled frequency pulses, or octaves, with common PWM and volume control for each of them.

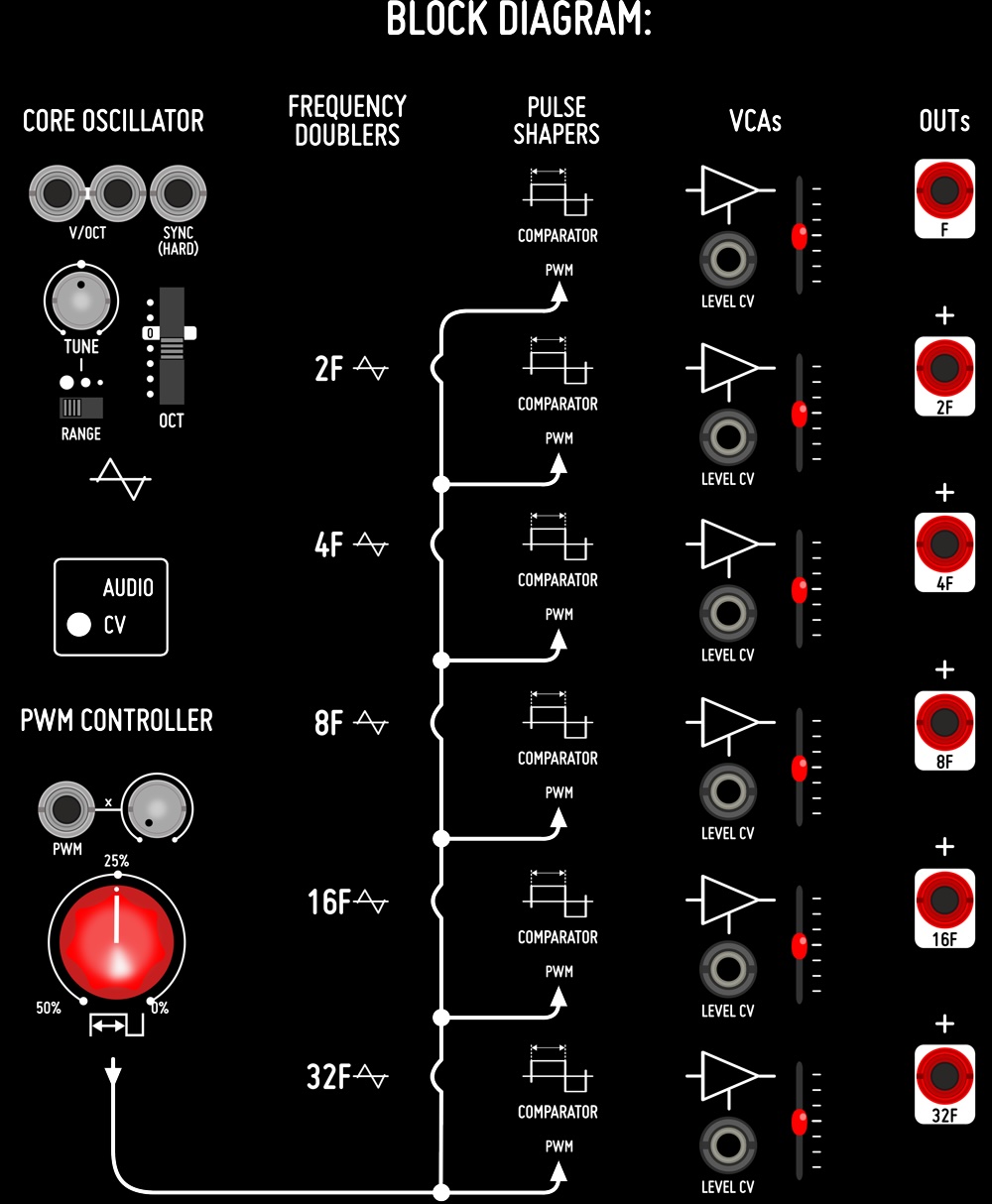

The output of each is cascaded to the next one, so you can either have one output with all frequencies or break the chain and get several sums and modulate each independently!

FEATURES

• Six bands, multiple of the base frequency.
• Square wave oscillator with Octaves selector PWM control and sync.
• Range control for Tune pot.
• Volume CV control and individual output for each band
• Cascaded summing outputs.

SPECS

• Current needs: +12V: 110mA, -12V: 84mA
• Width: 12 HP
• Depth: 22mm (assembled and DIY), including power connector
• Aluminium, heat-treated front panel
• Designed, kits prepared and completed modules assembled in Barcelona

RESOURCES

• User Manual >>
