Trogotronic m673 / WaveWraith Analog Tube Synth Module w/Breakout Module 次回入荷分

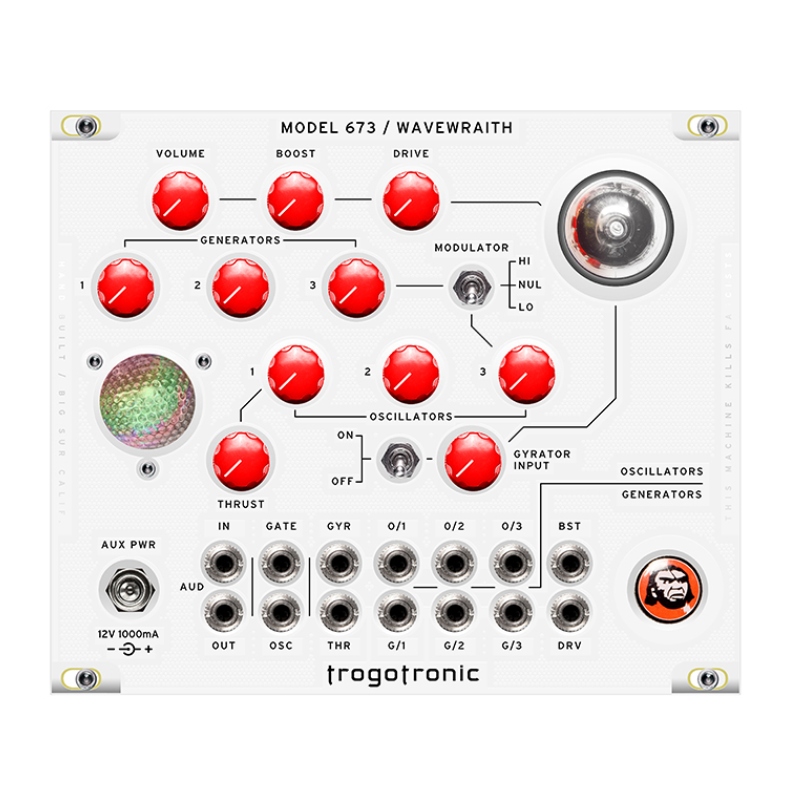

Model m673 WaveWraith is an Analog Vacuum-Tube module that packs the console’s core into a Euro-Module the size of a CD Case. After a tube-warming countdown from ten, WaveWraith is knobs-deep in Interstellar Sonic Horror straight outta the box. Patch into Audio Input & bewitch what’s brung (as an unprecedented sidechain FX) or send a white-hot panic-patch tangler far beyond the event horizon.

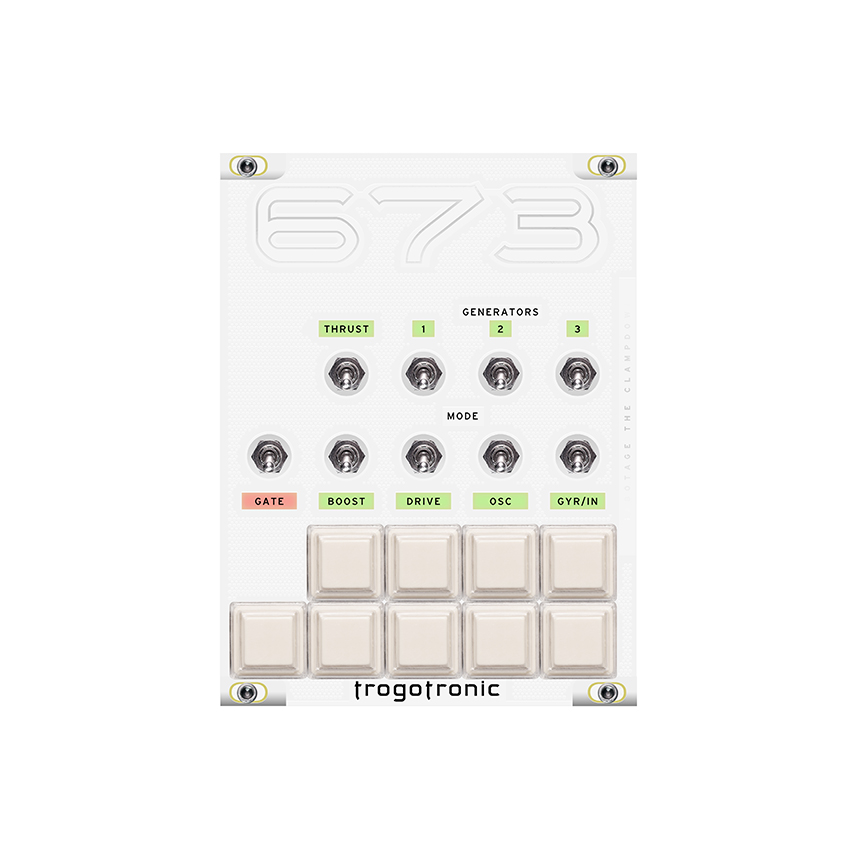

A FULL-DOZEN Gate & CV inputs are primed to dock hard in 30hp of your modular space-station & if you’ve got any landing zone left keep the pod-bay doors wide open for the 19hp breakout. The optional performance-button module puts the same layout & premium switchgear as the “Semi-Modular” Console Version at your digit-tips. High voltage vacuum tubes can be hungry so the Optional Auxiliary PSU accommodates power-starved modular-starships @ 0mA load on the +12v rail (21mA load on -12v rail).

  • All-Analog Signal Path
  • 11 Control Knobs
  • Multi-Lamp Analog-Feedback Display
  • Audio Input for deeply haunted Audio FX
  • 12 Gate / CV 1/8″ Inputs
  • 10 Element Vactrol Control-Voltage Array
  • 10 CV Attenuators / Parameter Controls
  • Gates for Output & Triple-Osc Array
  • 9 Multimode Key Breakout Module = Optional
  • Aux. PSU = Optional
  • Swappable 9-Pin Twin-Triode Tube

which is to say you can change “glass” with MOST of the MANY versions of new (or classic) Twin-Triode Preamp Tubes to subtly alter the overall sound of the instrument.

Simultaneously delicate & brute, terrifying & beautiful, time invested in WaveWraith bears dividends: ghastly transitions, lengthy Rube Goldberg cycles & endless foley ideas for the classic sci-fi horror movie of choice. Instantly playable yet confoundingly deep, WaveWraith packs a haunted universe in CD-Cover sized piece of rack-space.

Main Module Specs:

  • Euro-Format
  • 30hp
  • Depth = 1.75” (45mm)
  • +12v rail Peak Cold-Start 950mA; Running 365mA
  • +12v rail Peak w/Optional Auxiliary PSU 0mA
  • +5v 0mA (not used)
  • -12v rail Peak 21mA
  • 12vDC Aux. Power Supply: Optional

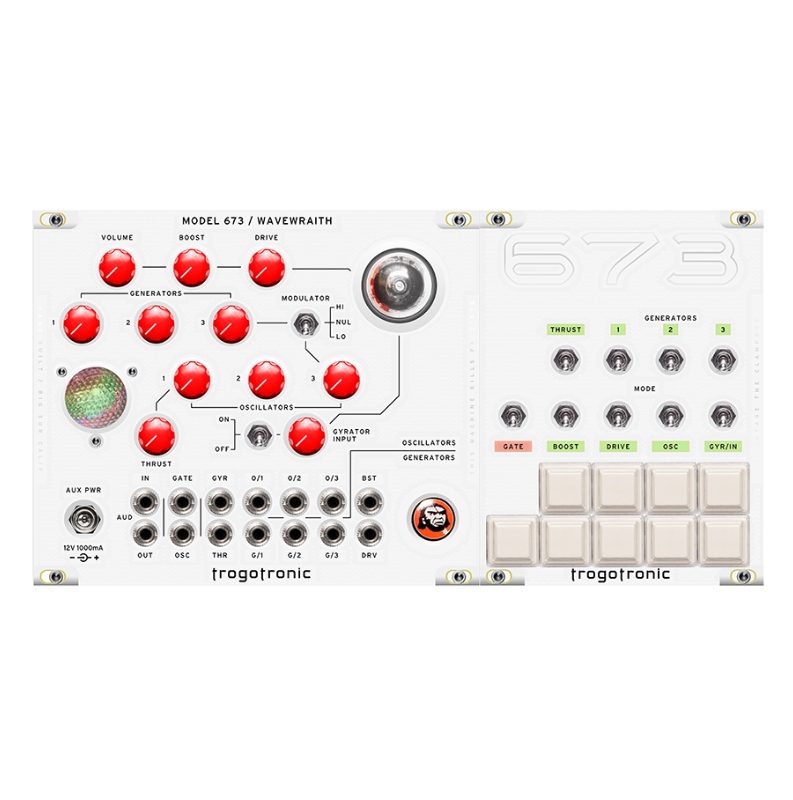

Main Module + Breakout Specs:

  • Euro-Format
  • 49HP
  • Depth = 1.75” (45mm)
  • +12v rail Peak Cold-Start 950mA; Running 425mA
  • +12v rail Peak w/Optional Auxiliary PSU 0mA
  •  +5v 0mA (not used)
  • -12v rail Peak 21mA



* Trogotronics 各商品はお取り寄せのため納期は約1ヶ月になります事をご了承ください...

Trogotronic m673 / WaveWraith Analog Tube Synth Module w/Breakout Module 次回入荷分

販売価格: 95,931円 [通常販売価格: 96,900円]

重さ: 3lb

数量:
お問い合わせ

*** お問い合わせ&予約受付中 ***
当店で扱っている各商品は大量生産ではありません。 メーカーにも在庫に限りがあります...
確実に欲しい商品に関しては早めに予約/在庫確認する事をおすすめします...
