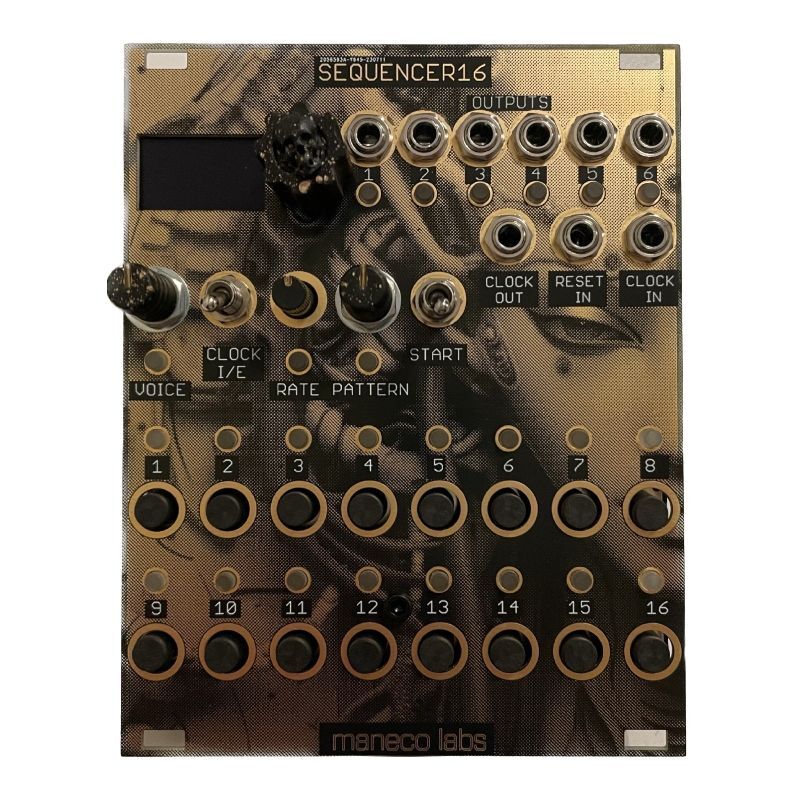

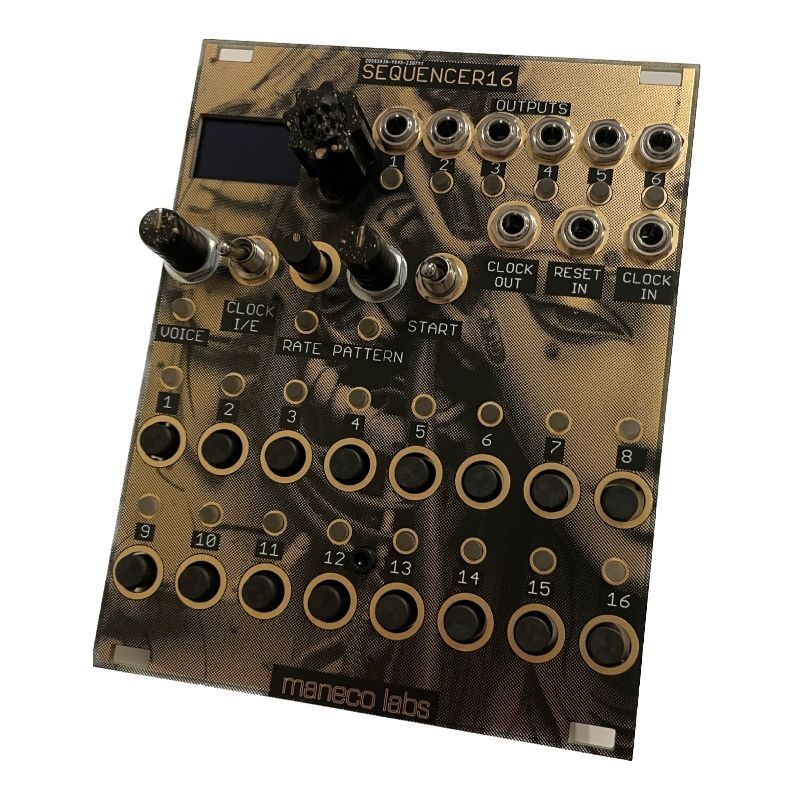

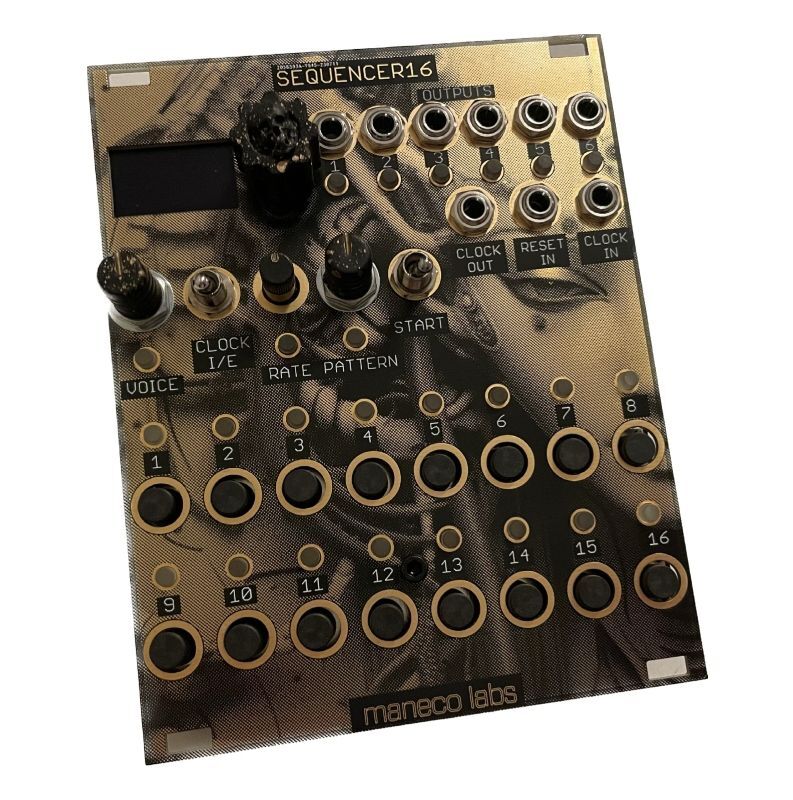

Maneco Labs SEQUENCER16 (Eurorack)　

Sequencer16 is a six channel trigger sequencer for Eurorack Systems , with X0X like operation, intuitive, fun and visually appealing.

Its simple operation allows for flowing live use and inspirational studio experimentation.

The structure is based on 6 channels “voices” each with a descriptive color identification , and four patterns also featuring a unique color.

Controls:

Rotary encoder : it’s related to display operations, especially save that puts in non volatile memory the 4 patterns content .

IMPORTANT: Display is refreshed only in stop mode for more precise timing during playback

Voice potentiometer : selects which channel “voice” is controlled by the 16 push buttons XOX grid, identified by color in led and grid

Clock i/e toggle : selects internal clock source or external from sync input jack Rate potentiometer: internal clock generator speed.

Pattern potentiometer: selects patterns 1 to 4 , with color feedback for selected.

Start : allows for playback either from internal or external clock source, stop resets pattern to “1” position

Jack connectors:

Output 1 to 6 : Voice channel trigger outputs Clock out : output for sync to other devices, either from internal clock or forwarding the external clock input set by int/ext toggle Reset in : a positive signal resets sequence to “1” position Clock in : external clock input for slaving to other devices.

Dimensión : 20HP Power: +12v 180 milliamperes , -12v 15 milliamperes
