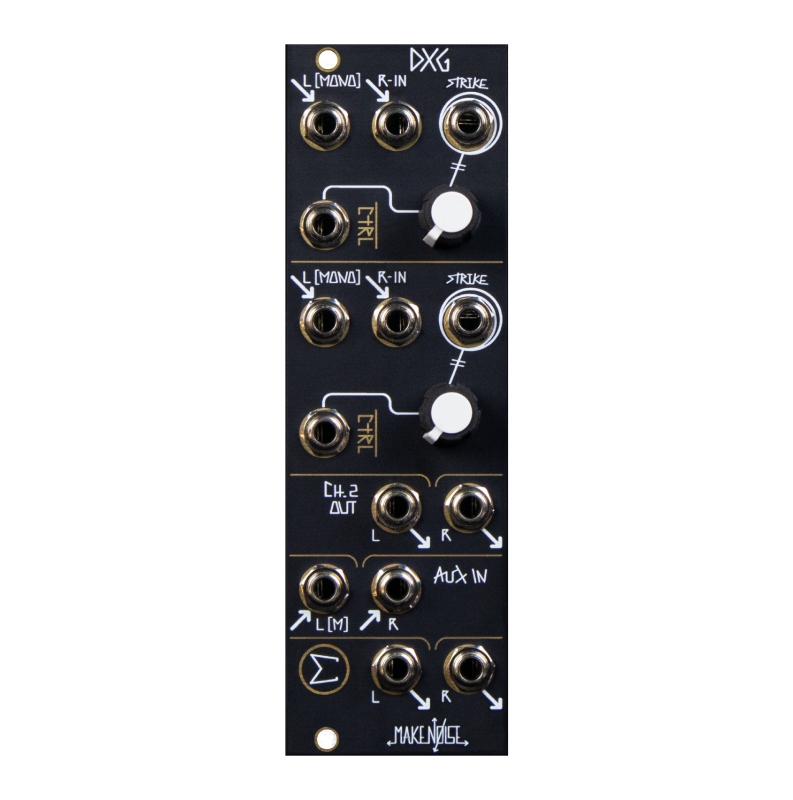

Make Noise DXG　

The Dual Stereo Gate (DXG) music synthesizer module is a Dual Stereo Low Pass Gate and Mixer. It follows in the footsteps of the QMMG, Optomix, RxMx, DynaMix, and LxD. Unlike its predecessors, the DXG is specifically oriented around mixing stereo signals, making it an important addition to any system containing modules like XPO, QPAS, Morphagene, Mimeophon,Spectraphon, and other stereo modules by Make Noise or others.

Unique to the DXG is a new low pass gate circuit that does not use vactrols. This circuit is 100% analog and its response was arrived at after many months tailoring it to meet or exceed the expectations that have been set by all the vactrol low pass gates that Make Noise has created over the years. The DXG is a completely new approach which better implements the gentle single pole filtering of a low pass gate, while also emulating the slow decay and memory of the vactrol based low pass gate. This new circuit makes possible the consistency of response necessary for versatile stereo use, while also keeping the module small and affordable so that it can be a key part of just about any modular system.

Unlike previous low pass gates made by Make Noise, all the DXG’s inputs and outputs are stereo. Each set of inputs is normalled so that the left input can be used for a mono signal, sending a copy to both left and right outputs. The Auxiliary inputs are also a stereo pair with mono normalization. These normalizations allow for the DXG to be used as a simple three channel stereo mixer, with one or two of the channels additionally being used for dynamics control and note event generation. The Aux inputs can be used to chain together larger decentralized mixes using additional DXG modules, or X-PAN, Optomix, modDemix etc.

features
Our first Stereo Low Pass Gate

Vactrol-free design for classic Low Pass Gate sounds, but with the balance and consistency needed for true Stereo

Fully Stereo i/o for easy integration into a Stereo-equipped modular synthesizer

All Left inputs normalled for easy use with Mono signals

STRIKE INput allows use of Gate signal to trigger Low Pass Gate circuit, creating “plucking" or "pinging" sound from any Gate

Summing stage with Stereo AUXiliary IN allows for chaining of multiple units, creating larger mixes

Part of a decentralized mix console integrated throughout the system along with X-PAN, Optomix, XOH, etc.

Pairs well with XPO, QPAS, Morphagene, Mimeophon, Spectraphon etc.
specifications
Width: 8hp
Max Depth
(incl. power cable): 43mm
Power:
74mA @+12V
86mA @-12V
