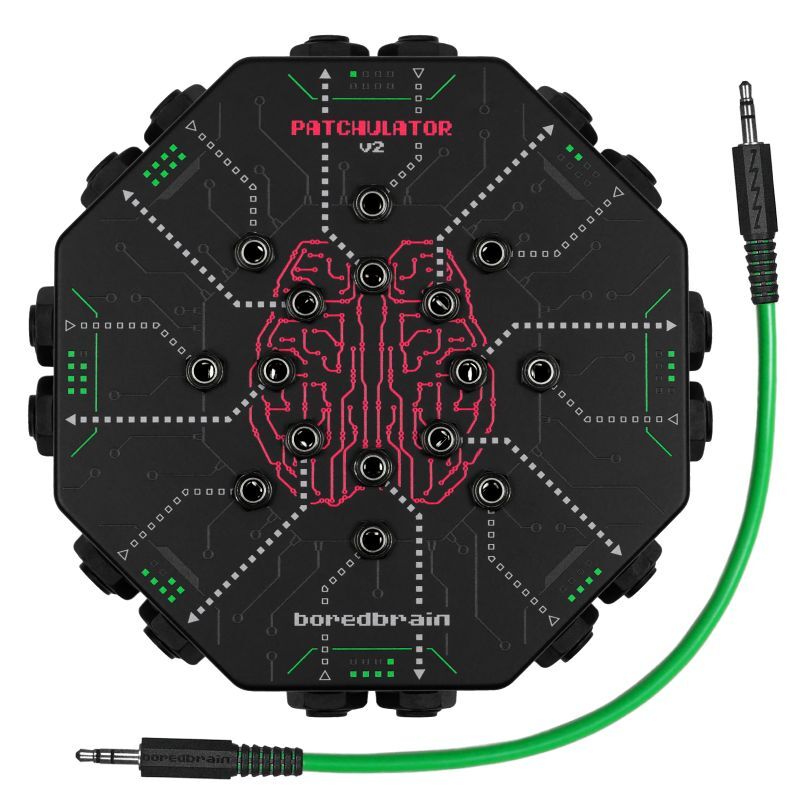

patchulator v2

8-CHANNEL MINI PATCHBAY

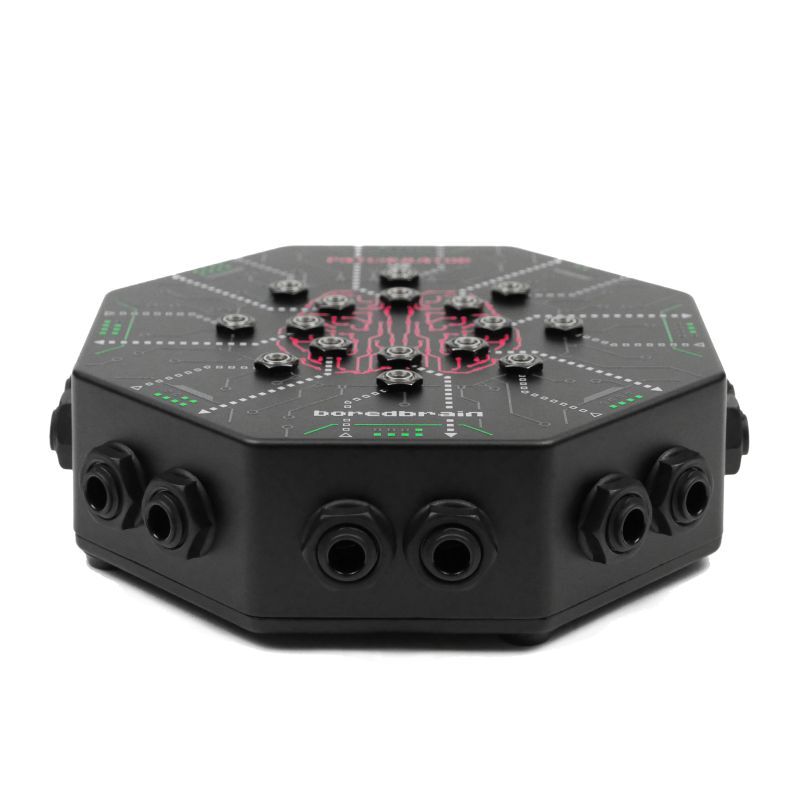

• Eight pairs of ¼-inch send and return connections
• Eight pairs of 3.5 mm patch points for signal routing
• TRS connections support stereo or mono applications
• Passive design accepts all types of signals including CV

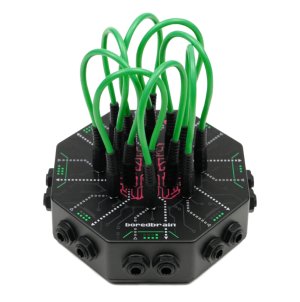

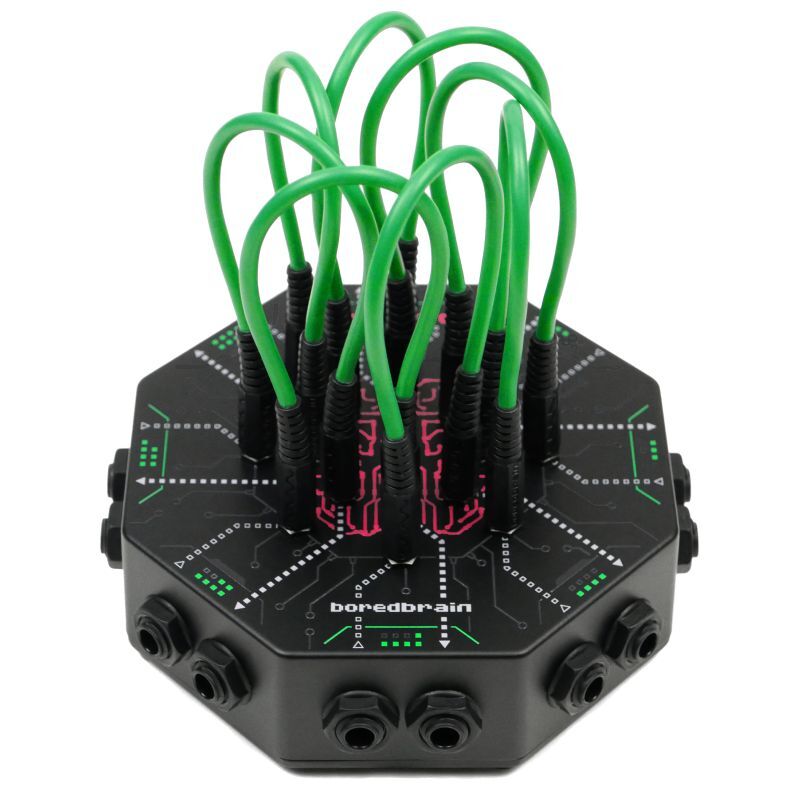

• Includes eight 6-inch mini patch cables (TRS)

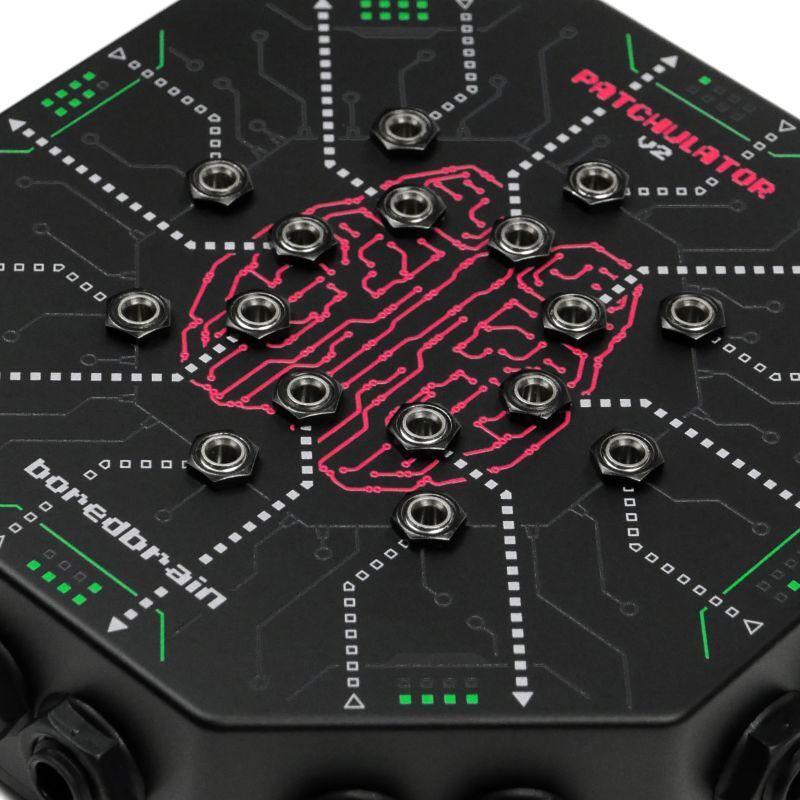

Version 2 has been upgraded with new high-quality 3.5 mm jacks, premium finish with fresh UV printed graphics, and is completely lead-free.

Experiment with signal flow

Patchulator is the ultimate tool for quick experimental signal routing of guitar pedals, synths and more. The patchbay is designed to easily re-order audio effects, swap effects between instruments, and make quick changes to the flow of signals.

Is your pedalboard brain-dead? The Patchulator provides a tangle-free way to change the order of your effects to create new tones using little to no brainpower! With the provided mini cables, just patch signal from your guitar or bass into (and out of) each effect, then back out to your amp or mixer. Invent new and interesting sounds while your synapses are firing, simply by rearranging the sequence of effects! All your gear and cabling stays put. Oh, and any effect not patched is “truly” bypassed… Genius!

Are your cables giving you a brain freeze? In the world of electronic music, the Patchulator desktop patchbay becomes a powerful nerve center for your instruments, allowing you to share and swap effects all around your setup, without needing to solve a brainteaser. Just connect your keyboards, synthesizers, samplers, drum machines (or any sound source) to a few channels, then fill the other channels with your effects’ ins and outs. Using the mini patch cables, you can then route any of the effects into and out of the signal path of any instrument, just like a real patch bay! Hmmm… what will you mastermind?

In the world of modular synthesizers, the Patchulator is the brainstem between your modules and outboard gear, since it uses both standard and mini phono plugs. So if your brain tissue needs some electro-stimulation, simply inject control voltages and audio signals directly from your modular into effects units and chains. Better yet, use two Patchulators and seriously expand your cranial capacity! Whatever it is that you can brainstorm – guitar pedals and studio effects, synths and samplers, grooveboxes and drum machines, modulars and modulation signals, mixers and recording interfaces – the Patchulator allows it all to interconnect.

Basic Effects Re-ordering

Choose easily which individual pedals are placed into your signal chain and in what sequence. Experiment with new chains instantly.

Effects Grouping

Expand the possibilities with more pedals and effects placed into groups or chains, used in conjunction with their bypass switches.

Instruments and Effects Swapping

Intercept signals from your electronic instruments, and easily insert different effects on each instrument.

Audio and CV/Modulation Routing

Patch eurorack signals directly in and out of your pedals and devices, using the Patchulator as a format-converting hub.



technical specs

• 16 x ¼-in TRS jacks
• 16 x 3.5 mm TRS jacks
• 8 x 6-in TRS patch cables (3.5 mm)
• Power: None (passive)
• Dimensions: 5.75 in x 5.75 in x 1.5 in
• Weight: 16.5 oz (465 g)
