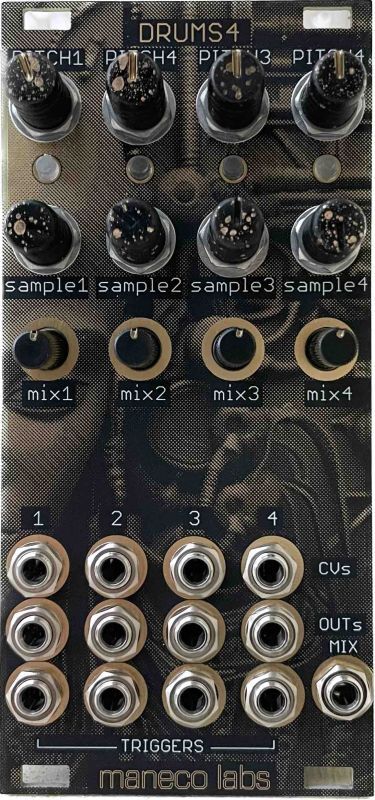

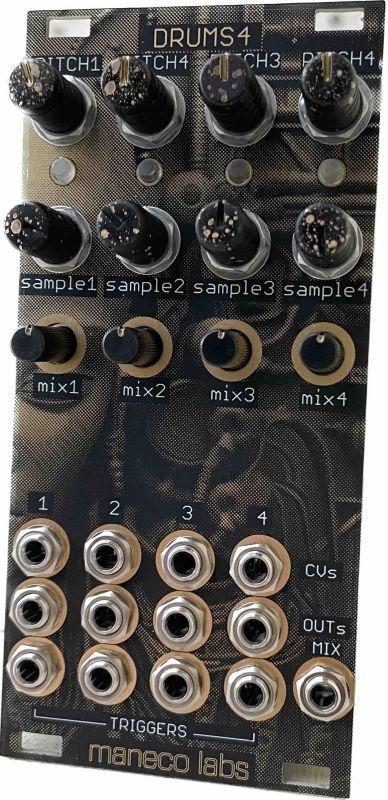

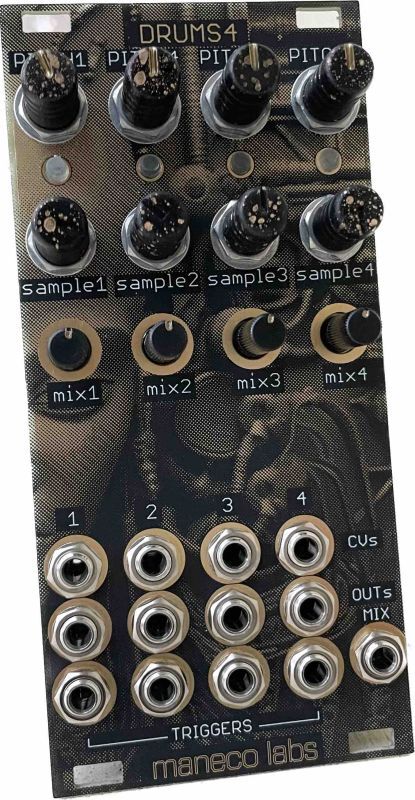

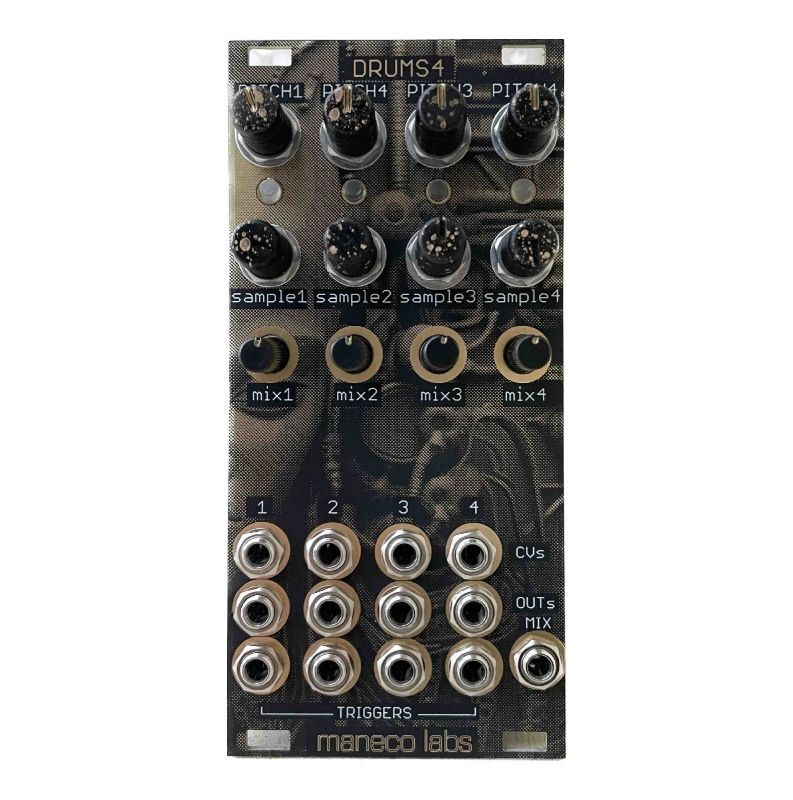

Maneco Labs DRUMS4 (Eurorack)　

Drums4 is a 4 voice, sample based percussion sound generator.
Each voice can select its sound from a 48 sample global bank, samples are curated from my own collection of percussion sources  used in my music.
Each sample can be tuned and has an individual output for independent processing , and there’s also a simple mixer that controls levels to the main mixed output.
Operation is simple and intuitive, the selected sample is remembered after power down for each of the 4 voices.
Incoming triggers are displayed on each voice led indicator.

Specifications:
Width : 12HP
Depth: 28 millimeters
Power consumption: 130 milliamps +12v , 10 milliamps -12v
