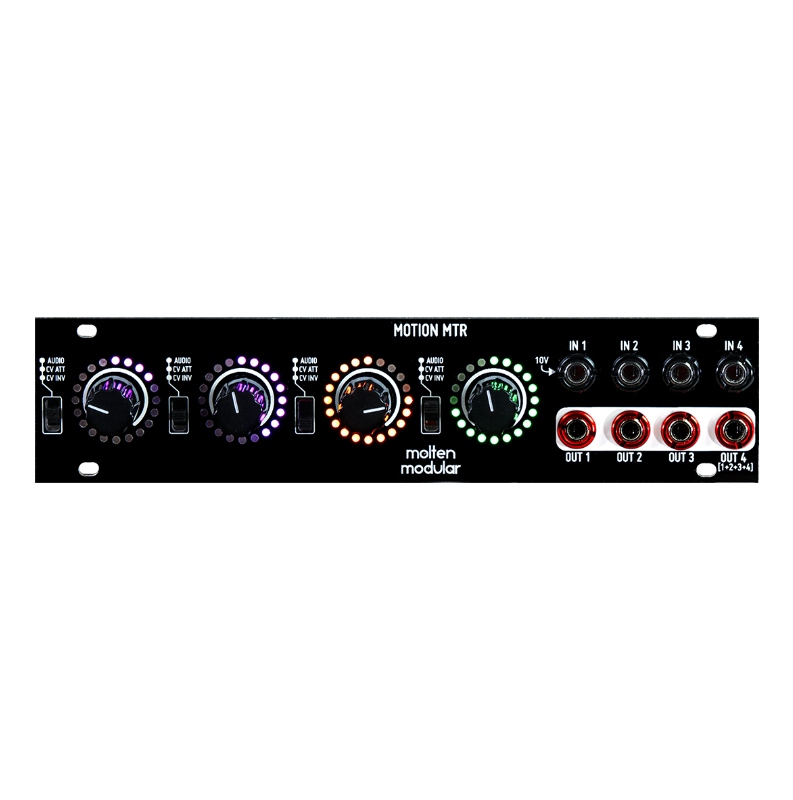

CV AND AUDIO UTILITY / REALTIME VISUALIZER

Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels.
Each channel can function as:

• Audio level control with VU meter
• CV attenuator with voltage meter
• CV inverter with voltage meter

Each input is normalled to 10v, so you can
use each of them to generate fixed voltages.
Also, the outputs of channels 1, 2 and 3 are summed into Out 4 to be used as a mixer.
Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!

FEATURES

• Four channels attenuator.
• CV and inverted CV visualization.
• Audio VU meter mode.
• Normalled inputs to 10v.
• Outputs summed at OUT4.

SPECS

• Current Draw: +12v: 110 mA -12v: 30 mA
• Width: 34HP
• Depth: 30mm including power connector
• Aluminium, heat-treated front panel.
• Designed and assembled in Barcelona.
• Concept design by Robin Vincent

• User Manual >>
