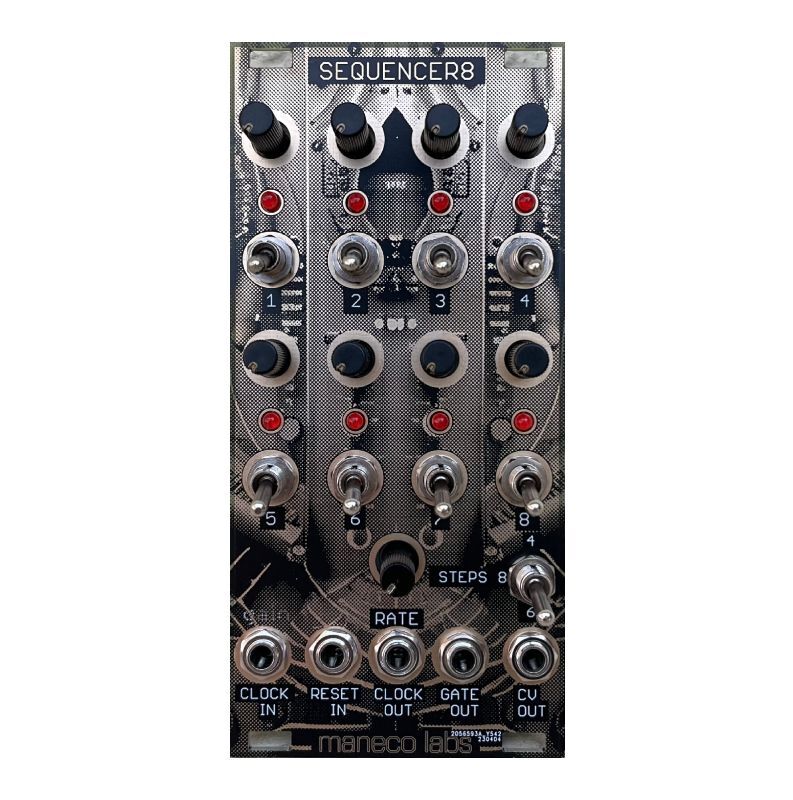

Maneco Labs SEQUENCER8 (Eurorack)　

This eurorack module is Manecolabs’ take on the classic baby 8 sequencer , an eight steps voltage sequencer with added switchable gate per step.

Other features include internal clock generator , and versatile input output sync and reset configuration.

Controls :

Step potentiometer: allows to set the voltage generated by each step.

Step gate switch : sets step gate output on or off Rate potentiometer : sets internal clock step over a wide range .

Max steps selector switch : selects 4 , 6 or 8 maximum steps in the sequence.

Internal / external selector switch : toggles between internal clock generator or external clock sync.

Jack connectors :

Clock in : input for external clocks, 5 volts minimum .

Reset In : forces sequence to reset to step 1.

Clock out : outputs clock signal for sync of other devices.

Gate out : outputs gates from each step whose toggle is on .

CV out : main control voltage output set by each step potentiometer. Specs :

width : 12HP Power consumption : +12v 50 milliamps , -12v 15 milliamps
