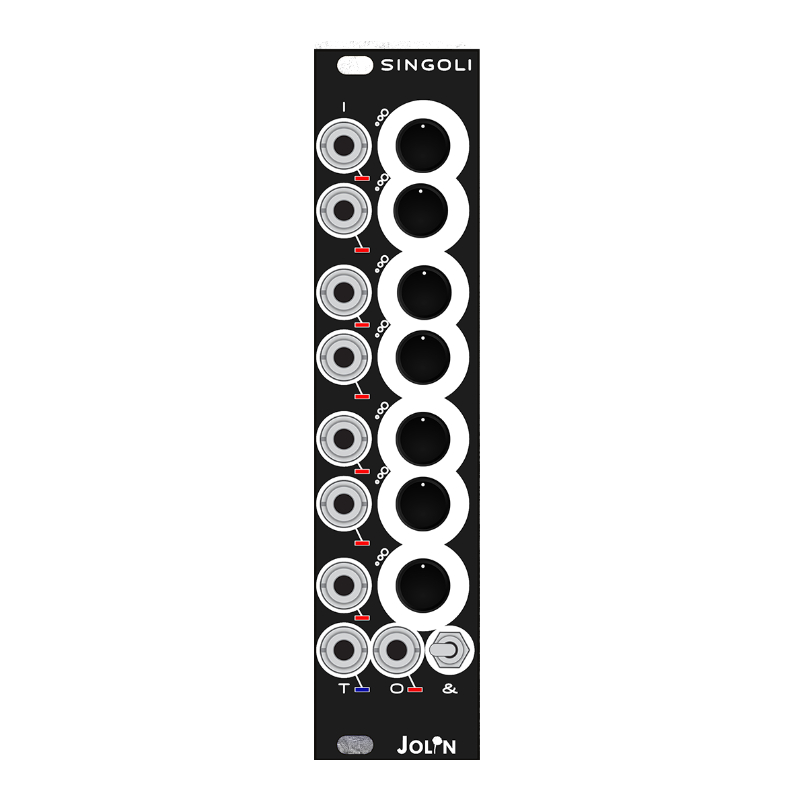

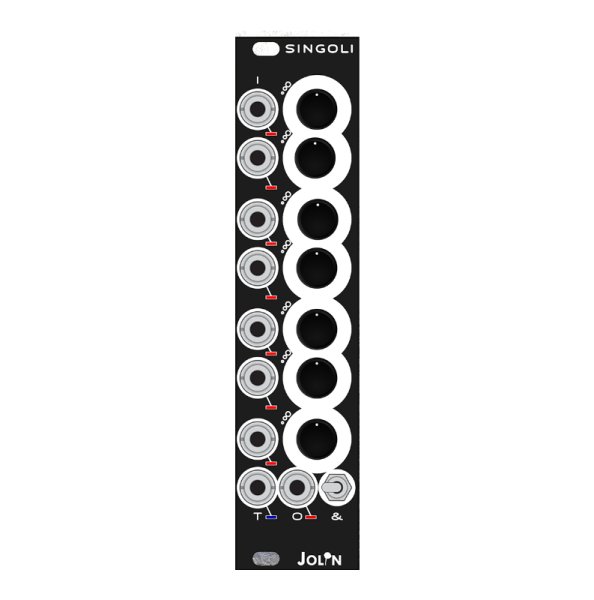

Jolin Lab SINGOLI combining transient detector

SINGOLI is a 7 channels DC coupled active combiner with an analogue transient detector output.

All the inputs I are equipped with LED meters and a dedicated attenuating potentiometer.

O will give you the combined mixed output.

T is an additional transient detector out that will fire only when a certain threshold is detected from the sum of all the inputs.

The toggle switch activates or deactivate the internal connection to Tutto&Sempre when the two modules are paired together thanks to the included JST cable.

Features

• DC coupled mixer with 7 inputs and individual attenuators.

• Intensity sensitive LED meters on all the inputs.

• Analogue transient detector output.

• Toggle switch to activate / deactivate its normalization to Tutto&Sempre.

• “Whatever” power connector a.k.a. don’t mind the polarity.

• width 6HP

• depth 25mm

• 15mA +12V

• 10mA -12V
