BEFACO MIXER　次回入荷分

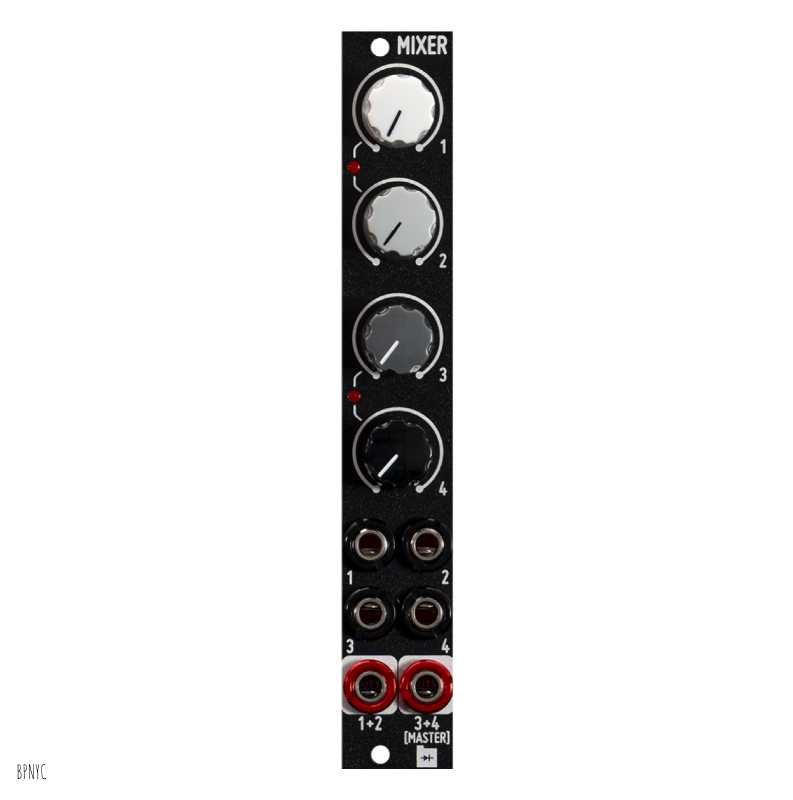

Combine up to four audio sources into one output, with independent manual level control.
It can be used as a four-channel mixer or as two separate two-channel mixers, depending on the connection.
If a cable is connected to the Master output but not to the 1+2 output, all channels will be summed at the Master output. If both the Master and 1+2 outputs are connected, the Master will output the mix of channels 3 and 4, while the 1+2 output will provide the mix of channels 1 and 2.
Each pair of channels has an LED indicator that shows the presence of a signal.



FEATURES
Dual Sumimg topology.
DC Coupled.
lLED Signal Indicators.
SPECS
Current needs: +12V: 35mA, -12: 25mA, 5v:0
Width: 4 HP
Depth: Assembled version 25 mm
Depth: DIY version 35 mm
Designed, kits prepared and modules assembled in Barcelona.
