Jolin Lab NEXUM multi cable tester

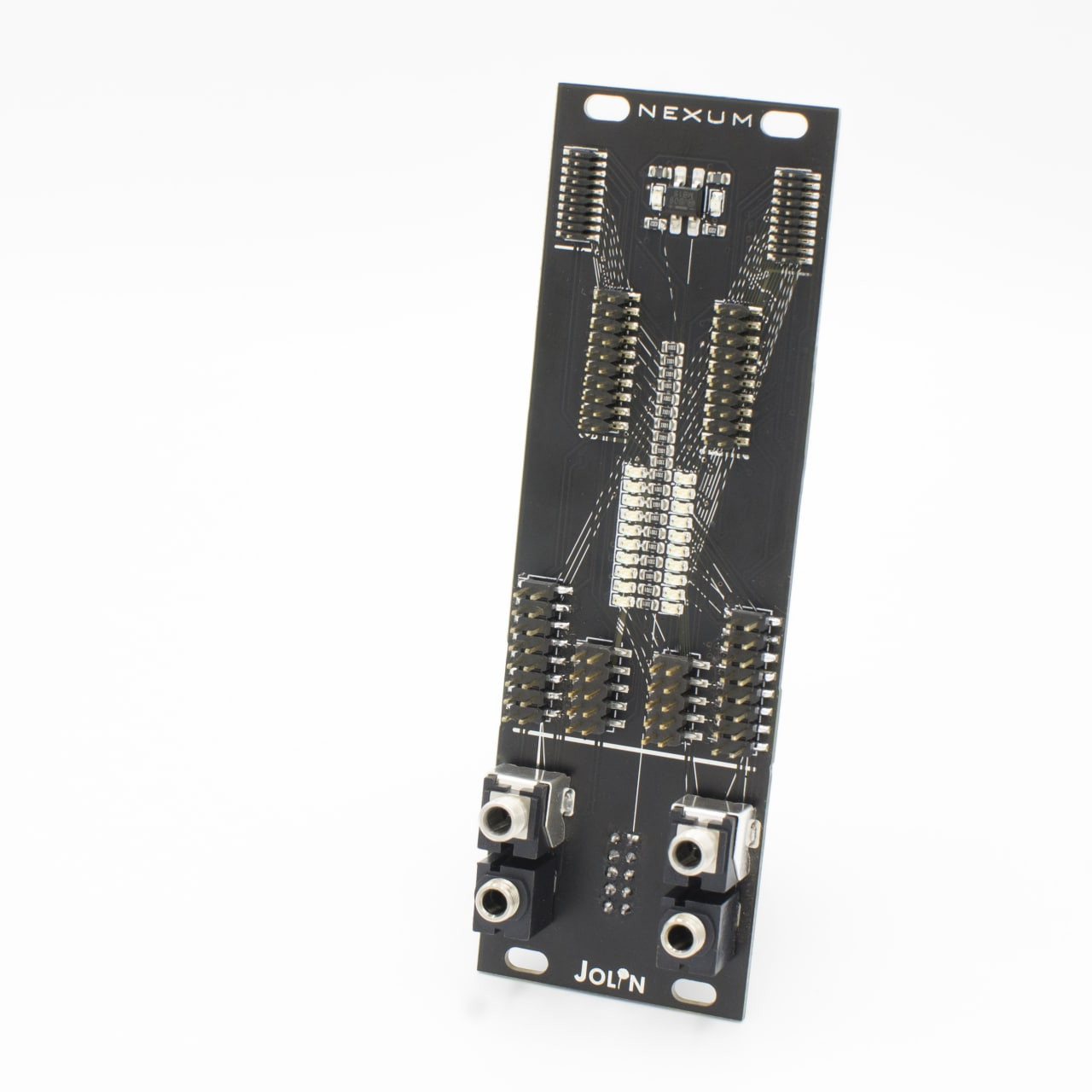

NEXUM is a smart eurorack multi-cable tester.

Plug a cable in one of the sockets and the other end specularly on the opposite side. Check if the blue LEDs light up steady in a number equal to the cores of the cable you are testing. Wiggle the wire back and forth just to be sure that all the individual cores are firmly connected.

Due to its configuration, the connection is considered true only if there is no continuity between the adjacent wires or discontinuity in that specific core. This smart feature will avoid false positives.

Features

Universal eurorack power cable tester - 10 and 16 pins 2.54mm.

Mono and stereo patch cable compatibility - 3.5mm TS and TRS.

Additional 20 pins 1.27mm / 2.00mm sockets.

Power line indicators.

Single board design – extremely skiff friendly.

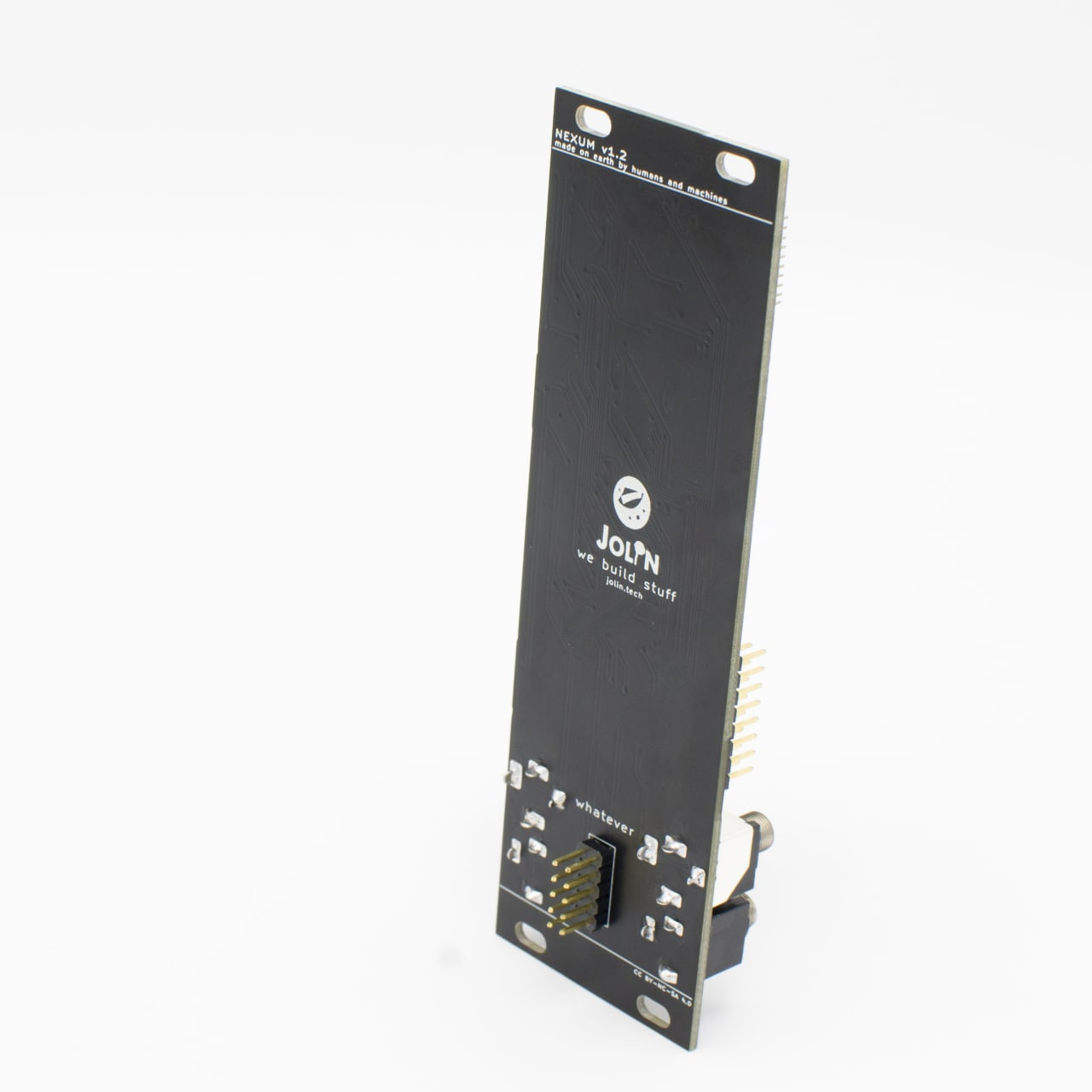

“Whatever” power connector a.k.a. don’t mind the polarity

• width 8HP

• depth 18mm

• 50mA +12V

• 5mA -12V
