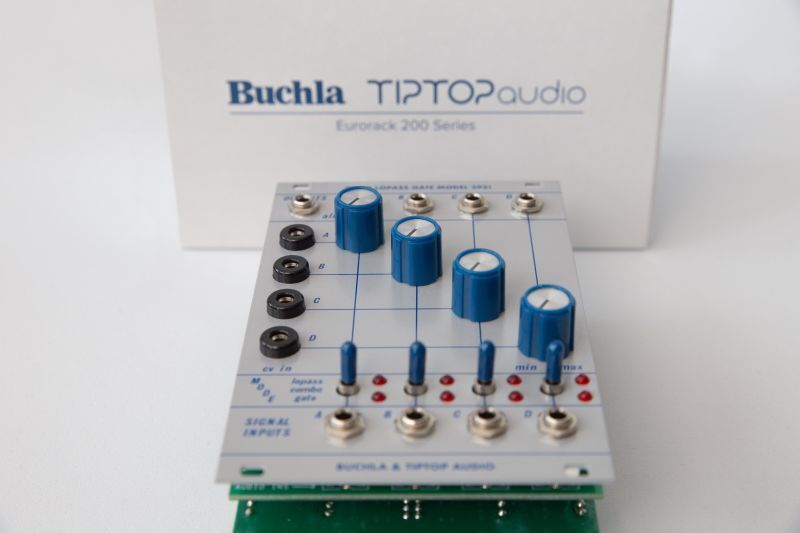

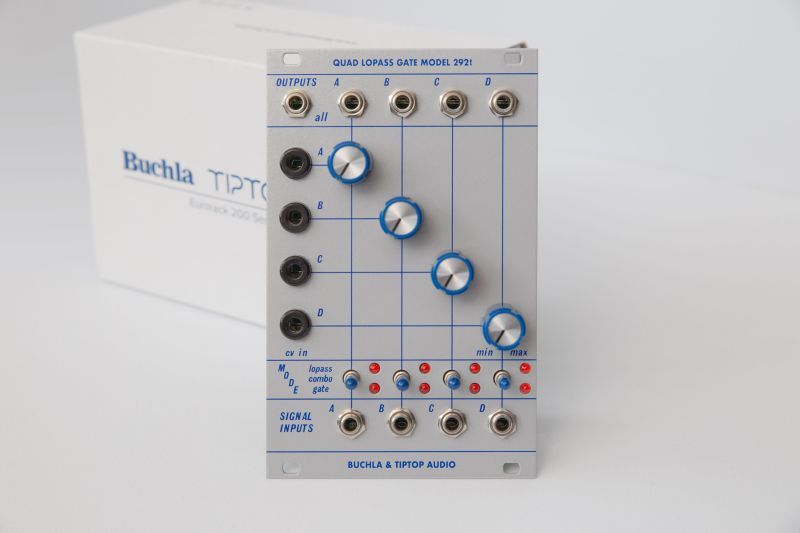

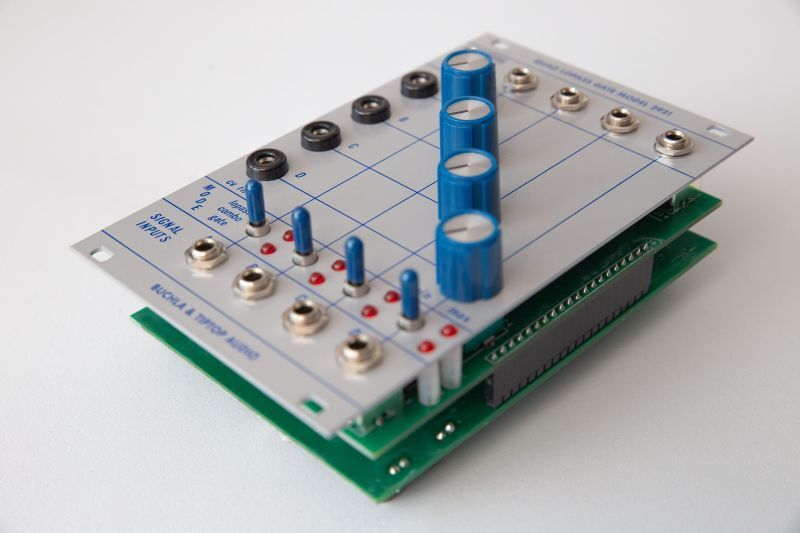

Buchla & Tiptop Audio Quad Lopass Gate Model 292t　

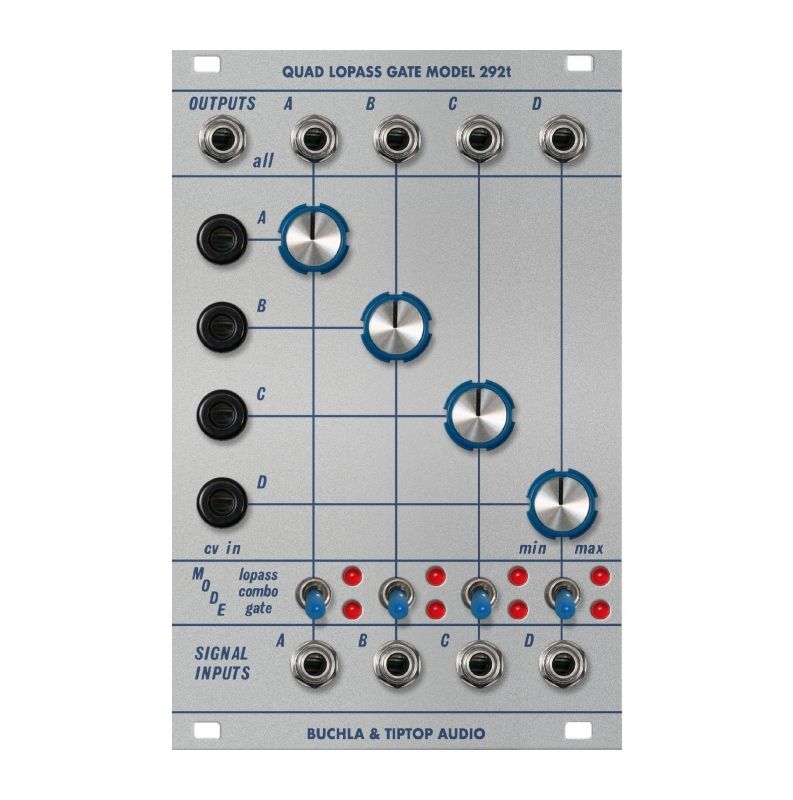

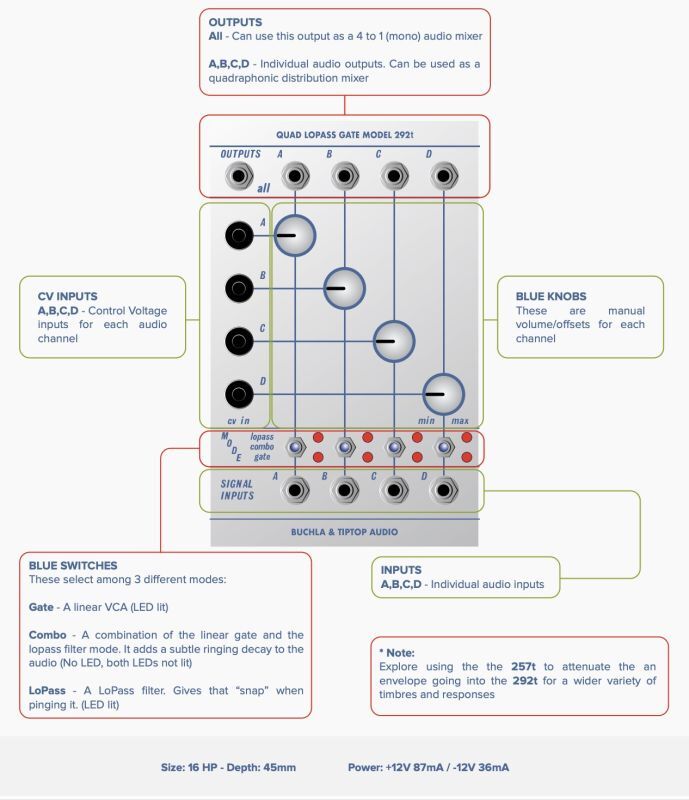

QUAD LOPASS GATE - MODEL 292t

Size: 16 HP - Depth: 45mm Power: +12V 87mA / -12V 36mA

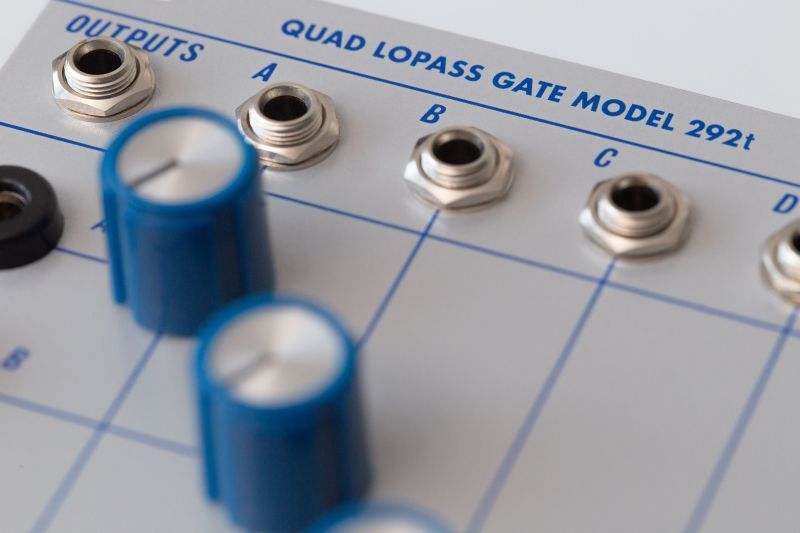

OUTPUTS All - Can use this output as a 4 to 1 (mono) audio mixer

A,B,C,D - Individual audio outputs. Can be used as a quadraphonic distribution mixer



CV INPUTS A,B,C,D - Control Voltage inputs for each audio channel



BLUE KNOBS These are manual volume/osets for each channel

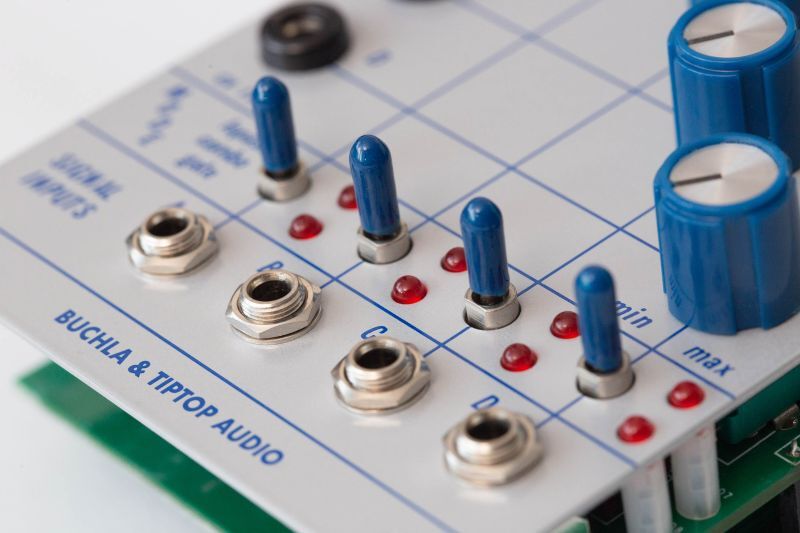

BLUE SWITCHES These select among 3 dierent modes:

Gate - A linear VCA (LED lit)

Combo - A combination of the linear gate and the lopass filter mode. It adds a subtle ringing decay to the audio (No LED, both LEDs not lit)

LoPass - A LoPass filter. Gives that “snap” when pinging it. (LED lit)



INPUTS A,B,C,D - Individual audio inputs



* Note: Explore using the the 257t to attenuate the an envelope going into the 292t for a wider variety of timbres and responses
