Dual Rectifier II - S is a small yet versatile and essential module for any Eurorack system. It can be used as an AC to DC converter, a distorsion, a complex waveform generator, a frequency doubler, a clock doubler or a enveloppe follower and more.
Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance.
Whether you're starting a small system or have a wall full of modules, Dual Rectifier II - S is a must-have for any eurorack system.

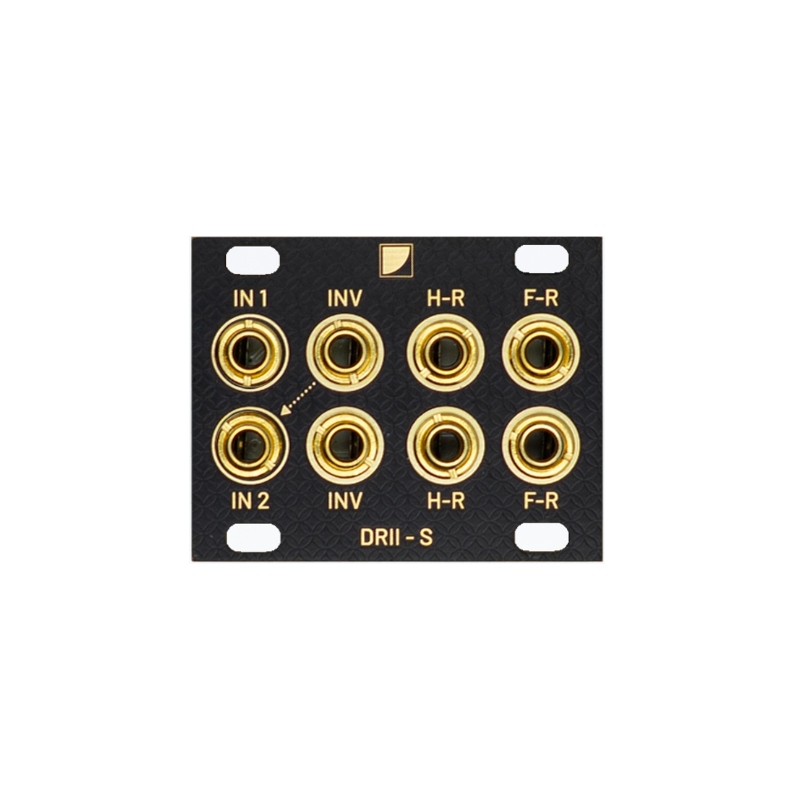

DUAL RECTIFIER II - S is divided into two sections:
On top section the Positive Rectifier offer 1 input and 3 outputs :
-Output 1 is a Inverted copy of input 1.
-Output 2 Half-rectified, signal from input 1 below 0V will be remove.
-Output 3 Full-rectified, signal from input 1 below 0V will be rectified.
On bottom section the Negative Rectifier offer 1 input and 3 outputs :
-Output 1 is a Inverted copy of input 2.
-Output 2 Half-rectified, signal from input 2 above 0V will be remove.
-Output 3 Full-rectified, signal from input 2 above 0V will be rectified.
By default input 2 is normaled to output 1 (inverted) of the top section.
Panel Width
10HP
Module Depth
20mm (skiff friendly)
Power Consumption
+12V : 5mA
-12V : 3mA
+5V : 0mA
