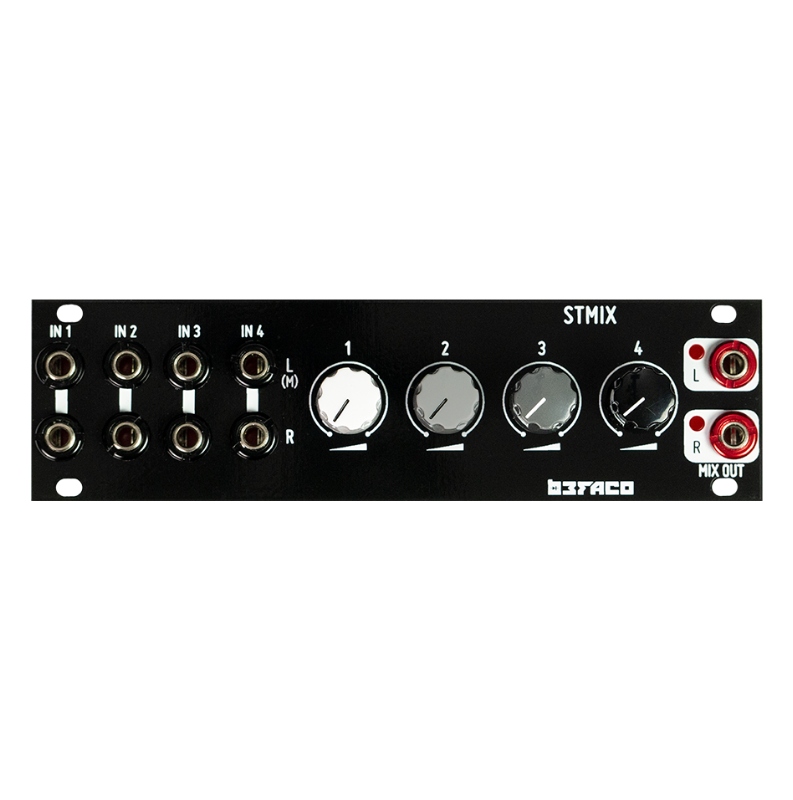

STMix is a four-channel stereo mixer in 28hp and 1U format. It can work independently or as an expansion of our Hexmix module via the six-pin connector located in the back. The module is designed under the Intellijel 1U format.

FEATURES

• Four channels stereo inputs with volume control.
• AC Coupled inputs to improve audio performance.
• Output clipping LED indicators.
• Connector at the back to interface with the Hexmix module.
• 1U Intellijel format.
• Pulp Logic Panel format available on demand.

SPECS

• Current needs: +12V: 30mA, -12V: 30mA
• Width: 28 HP
• Depth: 20mm (including power connector)
• Aluminiun, heat-treated front panel
• Designed, kits prepared and completed modules assembled in Barcelona

RESOURCES

• Assembly Instructions >>
• User Manual >>

• Schematic >>

• BOM File >>
• ModularGrid Page >>
• Add to ModularGrid >>
