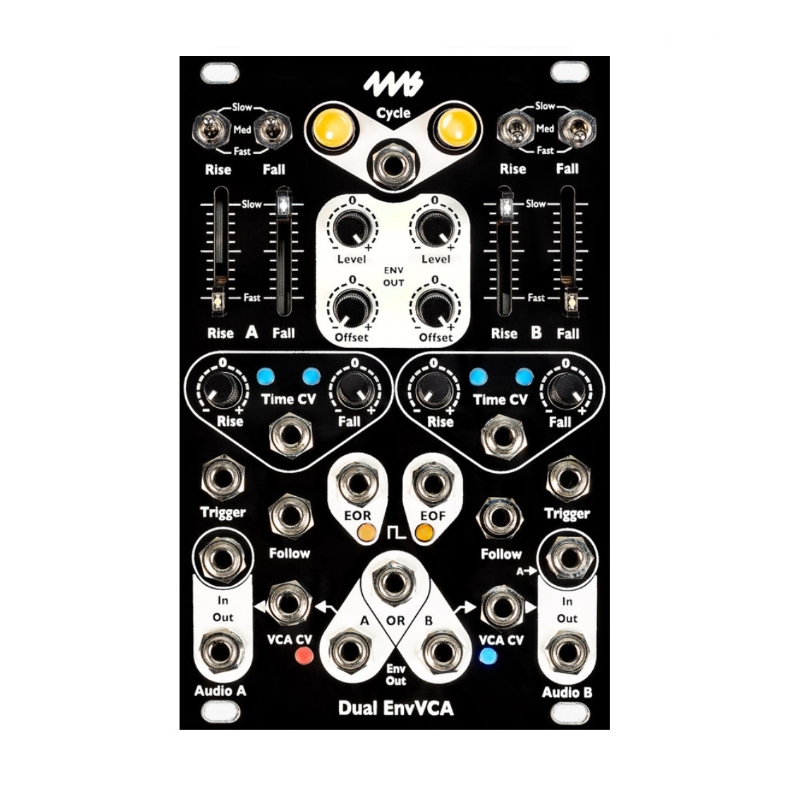

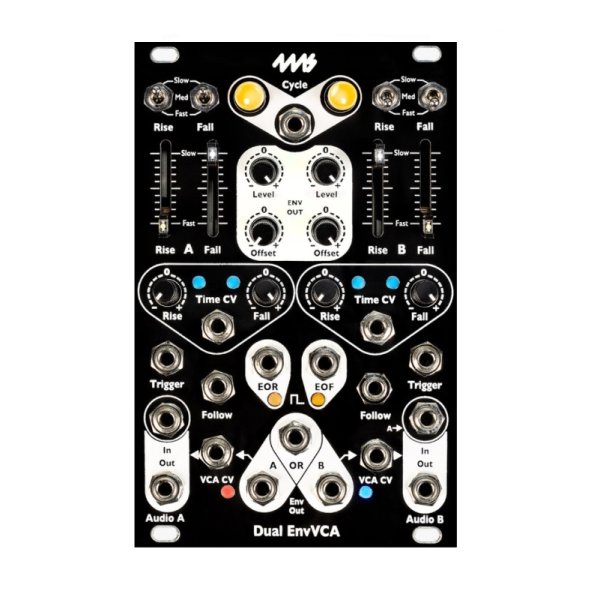

The Dual EnvVCA is a two-channel analog linear envelope generator with two fully independent low-noise exponential VCAs. With time ranges from 30 minutes to 8kHz, it can be used as an LFO, slew limiter, ASR/ADSR complex EG, audio-rate oscillator, stereo audio/CV VCA, envelope follower, sidechain processor, and general utility module. The outputs can be attenuated, inverted, and offset without disrupting the VCA, making it a versatile modulation source.

100% analog

Dual EnvVCA features:

• Versatile linear envelope generator/LFO
• Low-noise, low-distortion, DC-coupled exponential VCAs
• 100% analog
• Sliders and Range switches control Rise and Fall times from ~1.25ms to ~5 min.
• Time CV jack extends time range: ~125µs (8kHz) to ~30 min.
• Independent attenuverters for Rise and Fall time
• Blue/Red LEDs indicate strength and polarity
• Cycle buttons for looping envelopes (LFO)
• Trigger input jacks fire a one-shot envelope
• Cycle gate input jack toggles cycling for both channels
• EOR/F (End of Rise/Fall) gate outputs can be used to chain and sequence events
• Env Level and Offset knobs scale and shift Env Out without changing VCA volume
• Audio In and Out jacks for passing audio or CV through the VCA
• VCA CV inputs to use VCAs independently from the envelopes:
  • VCA gain internally connected to envelope output when VCA CV jack is left unpatched
• Follow input jacks allow for slew limiting, sustain (ASR), and exotic filtering effects
• Re-trig jumpers allow for re-triggering during rise phase

The Dual EnvVCA is essentially a Shaped Dual EnvVCA without the waveshaping abilities, ASR trigger mode, or extra 5V envelope outputs.

Dual EnvVCA

• 16HP Eurorack format module
  • 0.95” (24mm) maximum depth (includes power cable)
  • 10-pin Eurorack power header
• Power consumption
  • +12V: 156mA
  • -12V: 131mA
• Audio/VCA
  • 100k input impedance, 1k output impedance, DC-coupled
  • VCA gain range: -90dB to +0.9dB
  • DC to 20kHz, +/-0.1dB
  • VCA response to CV: exponential
• Envelope Times
  • Minimum rise or fall time: ~62us per segment (8kHz max frequency)
  • Maximum rise time: >10 minutes (typically > 13 minutes)
  • Maximum fall time: >20 minutes (typically > 40 minutes)
• Jacks:
• Env jack: Min = -10.2V, Max = +10.1V
, maximum amplitude 9.3Vpp
• Trigger jack: rising edge threshold = 2.5V
• Cycle jack: rising edge threshold = 2.5V
• Follow jack: active range = 0V to +5V
• EO* jacks:
  • EOR (channel A): <80mV low to >4.50V high gate output
  • EOF (channel B): <80mV low to >4.95V high gate output
  • Minimum stable pulse width: 1ms. Shorter than this may produce extra 50µs pulses
• Audio In/Out jacks: -10V to +10V maximum range without clipping

Manual:

• Dual EnvVCA User Manual v1.0
