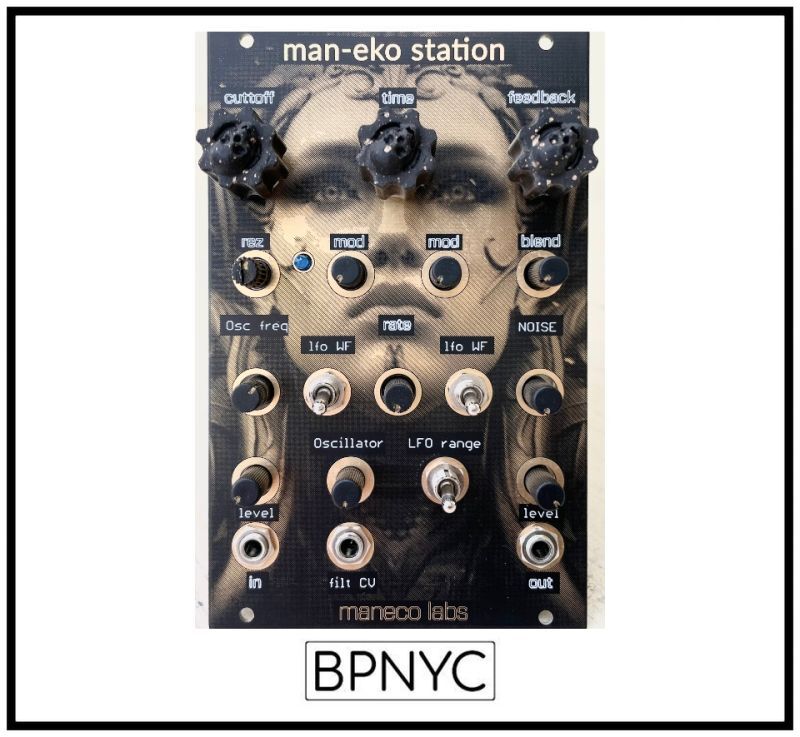

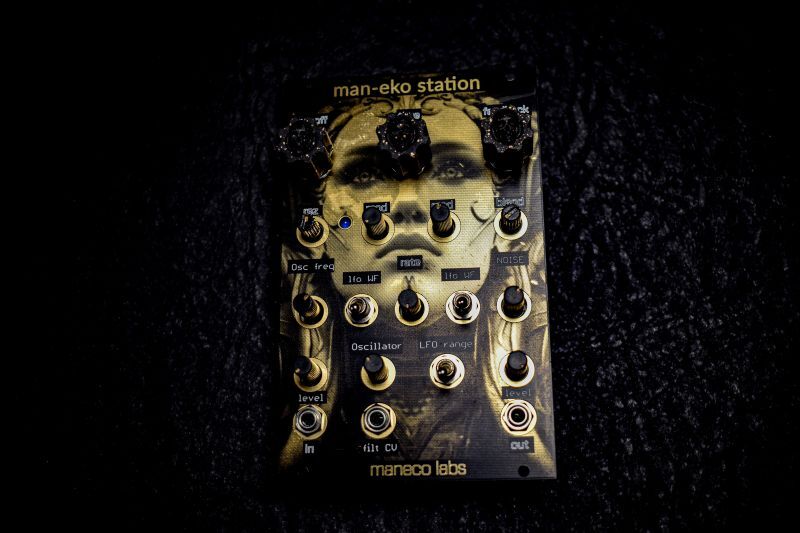

Maneco Labs man-eko station (eurorack)　

This Eurorack model is an effect unit including a resonant low pass filter and a delay section, both modulated from an LFO with square or triangle selection.

It also includes a square wave oscillator and white noise generator, for self sounding capabilities.

Nose generator combined with modulated filter allows for waves, wind, spaces to be self synthesized inside the unit.



Controls:

Cut Off : Low pass filter cut frequency

Rez : filter resonance

Mod left : filter lfo modulation



Time : Delay rate

Feedback : delay recirculation.

Mod right : delay lfo modulation

Blend : Delay mix



Osc Freq : square wave oscillator frequency

Oscillator: square wave oscillator level



Rate: Low frequency oscillator speed

LFO WF left : filter modulation wave selector, square and triangle

LFO WF right : Delay modulation wave selector, square and triangle

LFO range switch: allows LFO to generate audio range oscillations besides its normal low frequency operation



NOISE : white noise generator mix



Level Left: Input volume Level right : Output volume



jacks: input, filter control voltage, output
