SOMA LABORATORY LYRA8-FX　次回入荷分

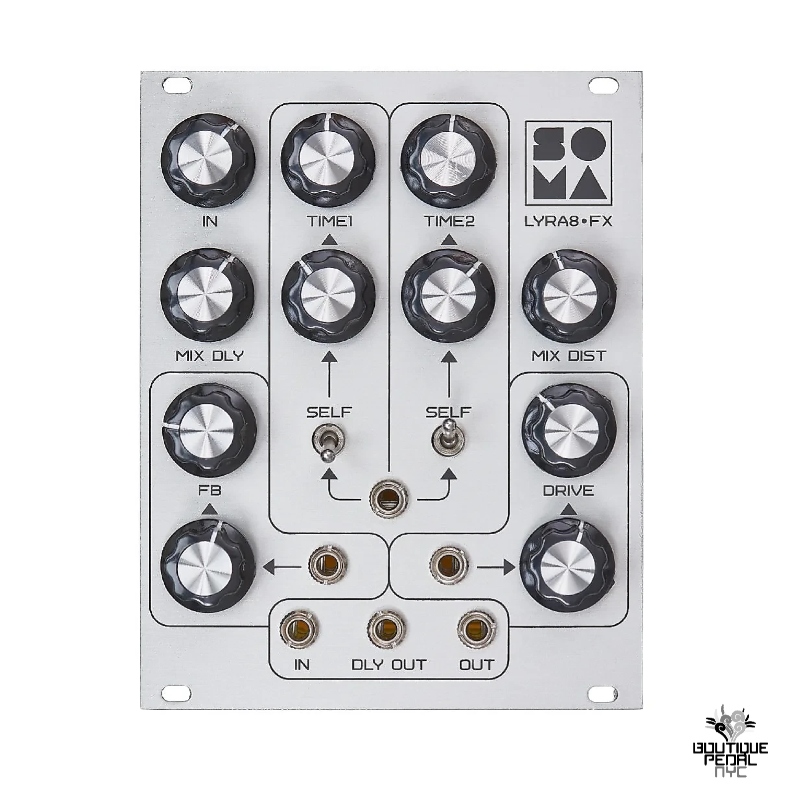

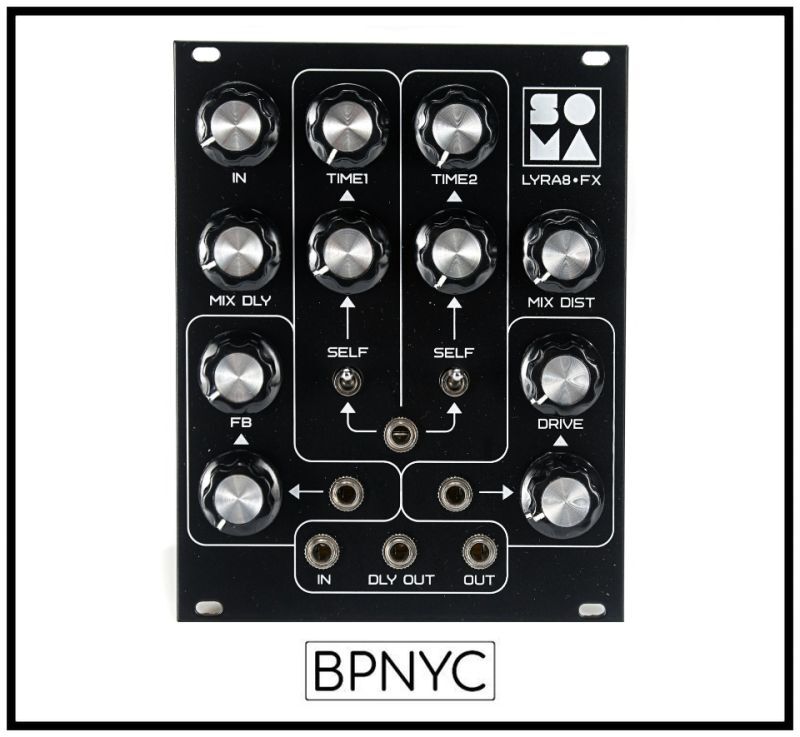

LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It’s much more than a delay – you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

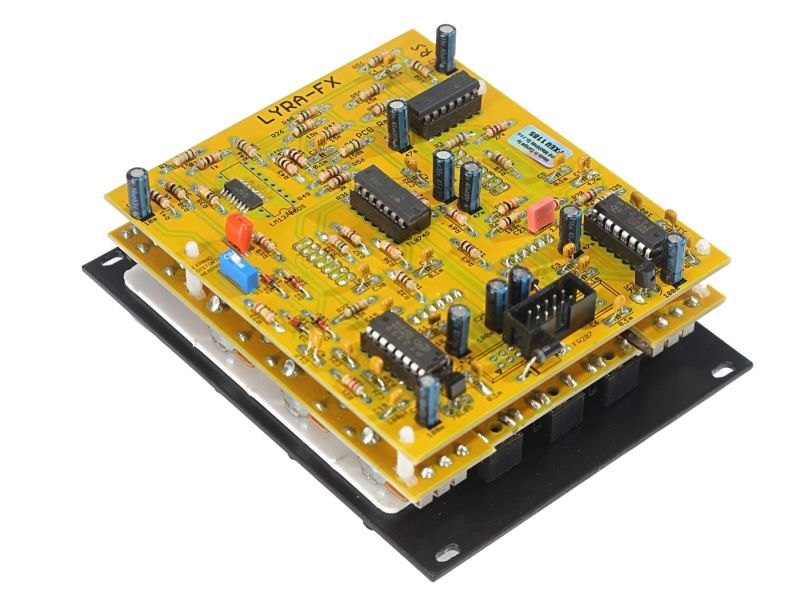

It has a famous LYRA-8 build quality – no SMD, no twisted plastic shafts, no crappy parts.

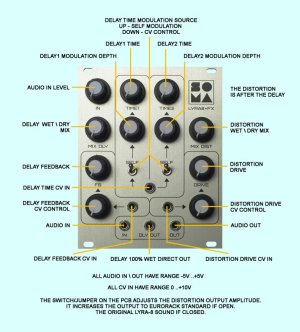

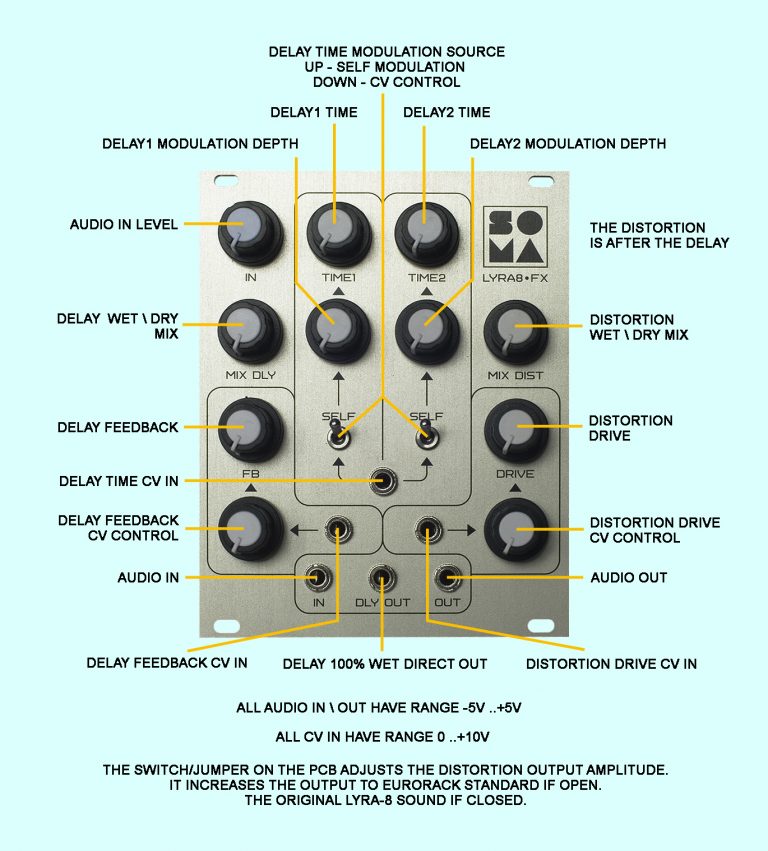

Pots:

– IN volume

– Stage 1 delay time

– Stage 2 delay time

– Stage 1 delay time modulation depth

– Stage 2 delay time modulation depth

– Delay feedback

– Delay feedback CV amount

– Delay mix

– Distortion drive

– Distortion mix

– Distortion drive CV amount

Switches:

– Stage 1 delay time modulation source

– Stage 2 delay time modulation source

Ins:

– Audio in

– Delay time CV

– Delay feedback CV

– Distortion drive CV

Outs:

– Main audio out

– Delay only out

Dimensions:

– Width – 20HP

– Depth – 40mm

Power consumption:

+12V – 90ma

-12V – 20ma
