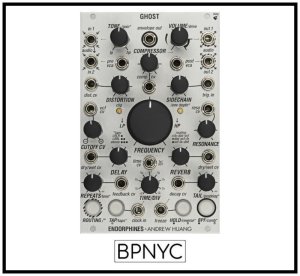

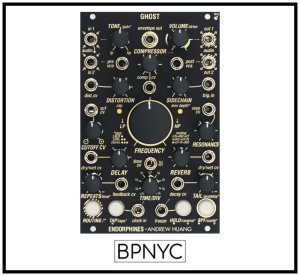

Endorphin.es GHOST　

ENDORPHIN.ES X ANDREW HUANG
In collaboration with ANDREW HUANG, based on his modern music production techniques ENDORPHIN.ES developed a creative audio processor with multiple blocks that can be moved around in order to achieve different flavors for sound design.

processing unit without fixed structure: intuitively create astonishing and ephemeral timbres, from atmospheric rumbles to heavy or distorted textures.

creative stereo effect processor with delay, reverb, filter and distortion with quickly explorable routing chain with single button press.

new generation ARM Cortex - M7 processor with 96 kHz 32 bit internal processing.

lush hall and whooshing reverse reverbs with audio freeze and pre-delay.

sidechain audio ducking envelope available both internally and externally with additional one knob single band compressor.

tap delay with maximum delay time up to 2.5 seconds, external clock input with onboard clock divider and 1v/oct time control.

8x oversampled distortion algorithm.

pre- and post - VCA, tone and volume controls with extra gain.


Power consumption

135 mA +12V

35 mA -12V

0 mA 5V

Dimensions

16 HP

26 mm deep with power ribbon cable connected.
