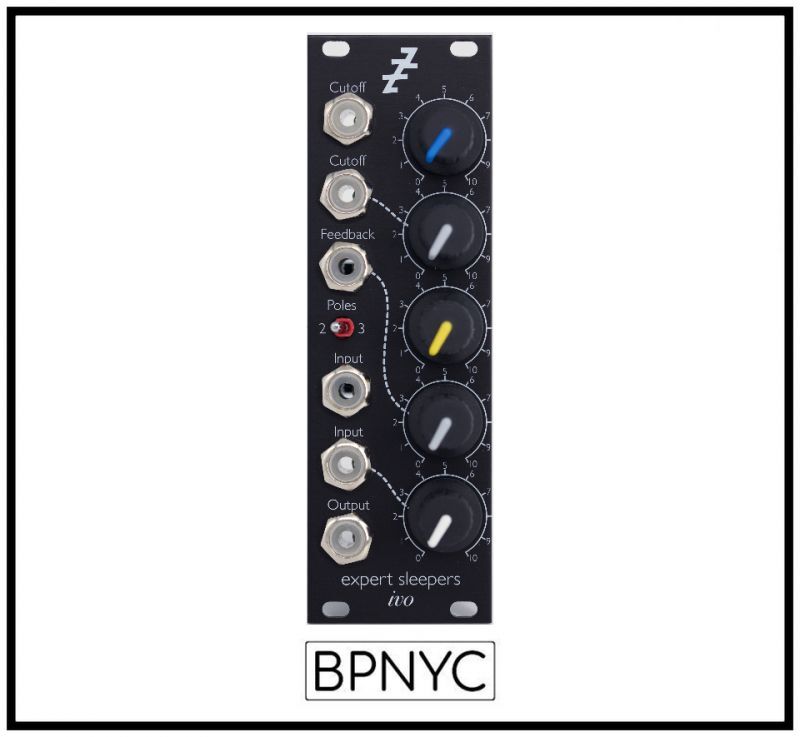

Expert Sleepers IVO -Filter module　次回入荷分

'Ivo' is a resonant low-pass VCF (Voltage Controlled Filter), switchable between 2-pole (12dB/octave) and 3-pole (18dB/octave) responses, with voltage control over feedback (resonance) as well as cutoff frequency. It will self-oscillate in 2-pole mode.

The module has two audio inputs, one with an attenuator, so it will also mix two signals at the filter input.

The module is 100% analogue, using discrete transistor OTAs.



Specifications

Ivo's specifications are as follows:
  • Panel width: 8HP
  • Module depth: 37mm
  • Current draw: 22mA on the +12V rail, 18mA on the -12V rail
  • Inputs:
    • Cutoff (approximately 1V/octave)
    • Cutoff (with attenuator)
    • Feedback (with attenuator)
    • Audio input
    • Audio input (with attenuator)
  • Outputs:
    • Audio output

For more detail, please see the user manual.


Expert Sleepers IVO -Filter module　次回入荷分

販売価格: 31,581円 [通常販売価格: 31,900円]

重さ: 1lb

数量:
