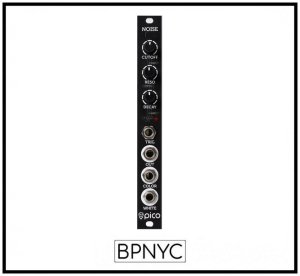

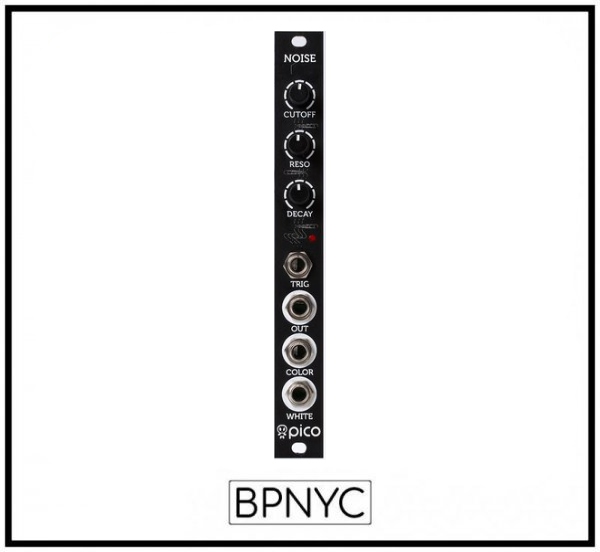

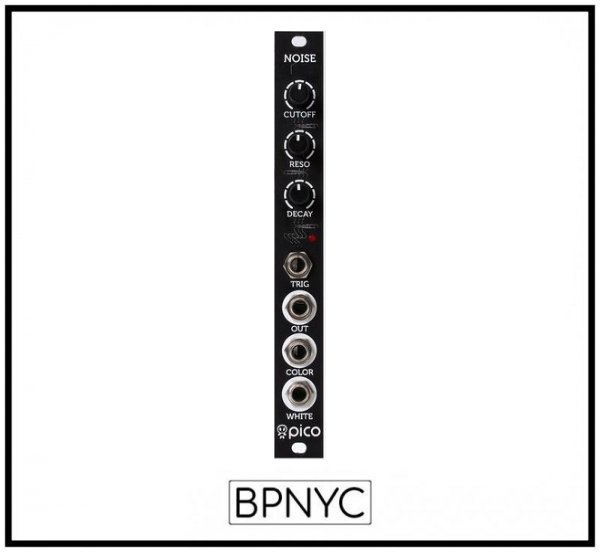

Erica Synths Pico Noise
Pico NOISE is a versatile noise and percussion sounds source. It consists of white a noise generator, a resonant VCF to generate various colours of the noise – from extremely dark ones to high pitched resonant sweeps and a VCA/decay envelope generator combination to create range of percussion sounds to emulate hi-hats, cymbals and even sine tone-based percussions, when the resonance is full up.
Features
- White noise generator
- Resonant VCF for coloured noise
- VCA and decay envelope combo for percussion sounds
- Input and output protection against overvoltage
- Protection against reverse PSU connection
Technical specifications:
Output amplitude | -5V — +5V |
Max decay time | 350ms |
Power consumption | +27mA, -25mA |
Module width | 3HP |
Module depth | 35mm |
Manuals
- User Manual — July 8, 2019
