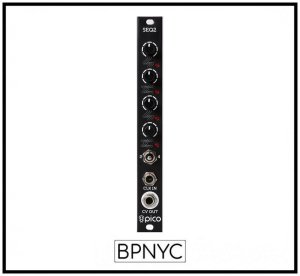

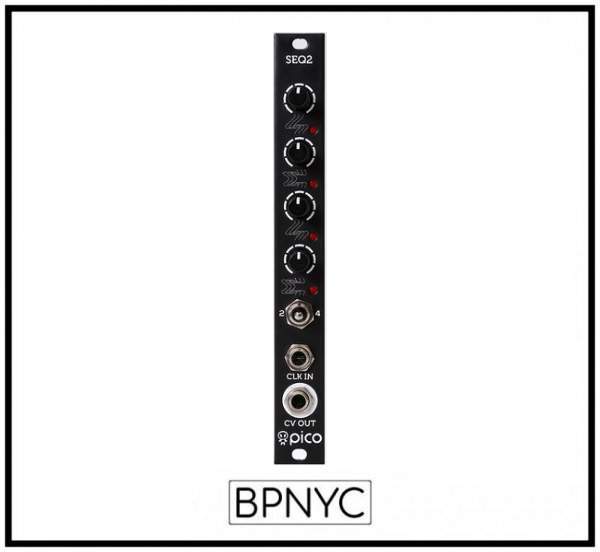

Erica Synths Pico SEQ2
Pico SEQ2 is straight-forward, full analogue 4 step sequencer/waveshaper with adjustable sequence length. If you want to have a simple, compact stepped modulation source in your setup, then this is it! Particularly interesting use of the Pico SEQ2 is waveshaping – just apply any audio source to the CLK IN, tweak the knobs and be amazed!
Features
- Up to 4 steps analogue sequencer
- Step count selection 2-3-4
- Full analogue circuit
- Input and output protection against overvoltage
- Protection against reverse PSU connection
Technical specifications:
Output amplitude | 0V — +6V |
Power consumption | +16mA, -12mA |
Module width | 3HP |
Module depth | 35MM |
Manuals
- User Manual — July 8, 2019
