XOR Electronics NERDSEQ – MORE VIDEO-IO EXPANDER

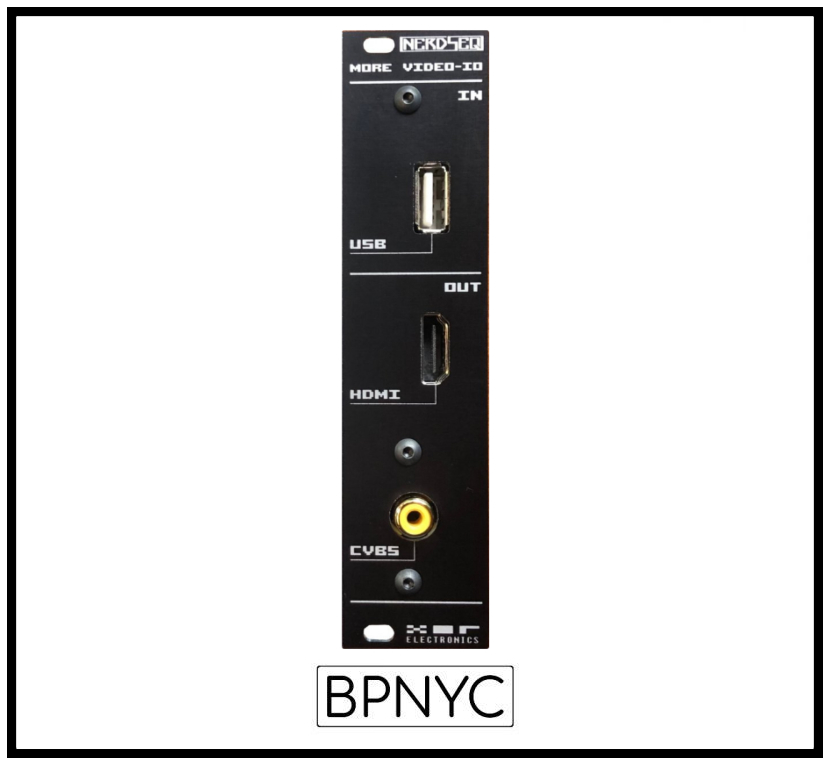

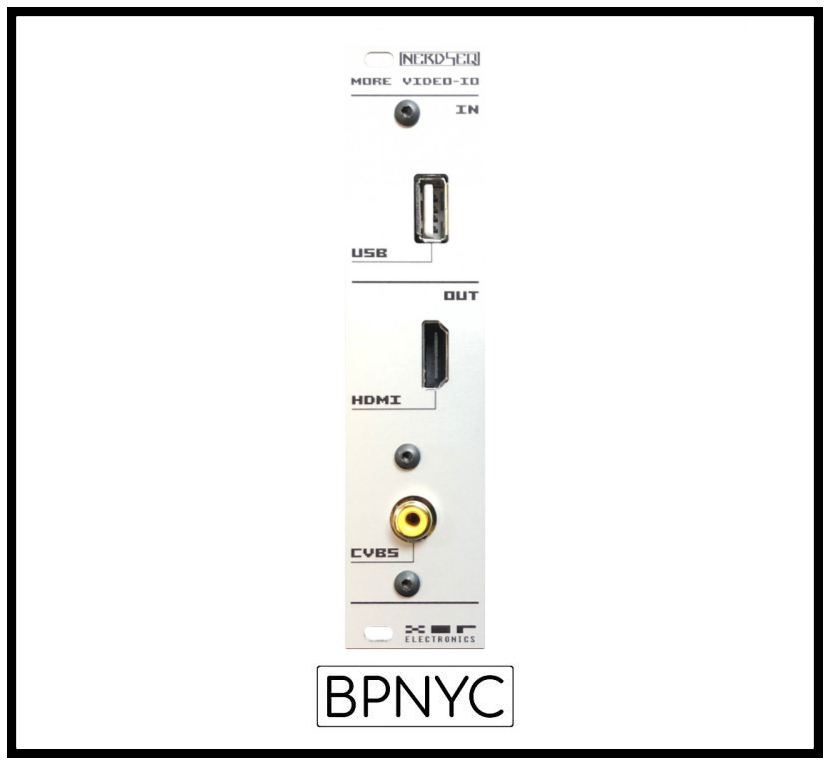

This is the More Video-IO Expander  for the NerdSEQ

It adds a HDMI (Type A) or Composite breakout for the NerdSEQ screen as well as a USB Host input for connecting a Computer/PC Keyboard. The video outputs are currently able to perfectly clone the NerdSEQ screen as well as some experimental visual generation (visual functions are currently very limited, unfinished and experimental, but will be more advanced on the way…).

The keyboard layout has been optimized to provide all NerdSEQ functions directly together with additional live editing and performance possibilities. Currently the USB Host port supports only a USB Computer-Keyboard. There is no USB Midi support with the Video-IO Expander.  (The USB-Midi expander is another future product)

The expander uses one NSA Port (fixed port 4).

Width: 6HP (42cm/1.64″deep)

This is not a standalone product! It works only together with the NerdSEQ.

Please check this forum post to find out about the keyboard layout as well as some additional information. The Manual with all information will be updated with the new firmware Release which enables the Video-Expander functionality. The new firmware will be released before July 4th.

The More Video-IO expander will be delivered with 2 ribbon cables for the interconnection.
Please be aware that it doesn’t contain a HDMI cable.
