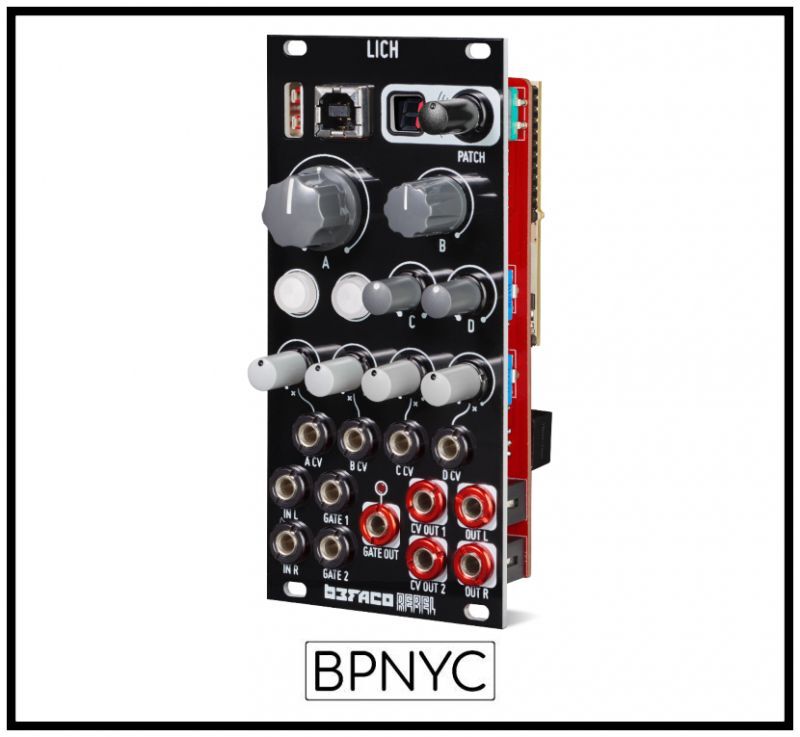

Lich is a programmable multi-function module based in Rebel Technology OWL platform that allows you to use Pure Data, Max Gen or Faust code into your module! This is a Befaco Rebel collaboration that brings back Owl’s platform with this new hardware iteration. It has stereo in and out, four pot controls summed to cv inputs (like the classic Owl module) And as addition, CV and Gate outputs, patch selection with display and USB MIDI host and device connections.

FEATURES

• Stereo Audio IN and OUT at 48k 24 bits.
• 4 CV controls (Pot + Attenuated CV in)
• 2 CV outputs.
• 2 Gate intputs + buttons.
• 1 Gate Output.
• Patch selection and visialization via display.
• USB host and Device connections

SPECS

• Current needs: +12V: 140mA, -12V: 30mA
• Width: 12 HP
• Depth: 26 mm (including power connector)
• Aluminium, heat-treated front panel.
• Designed, kits prepared and completed modules assembled in Barcelona.

RESOURCES

• Assembly Instructions >>

• User Manual >>

• Schematic v1>>
• Patch Library>>

• ModularGrid Page >>
• Add to ModularGrid >>
