Erica Synths Pico VCA2 次回入荷分

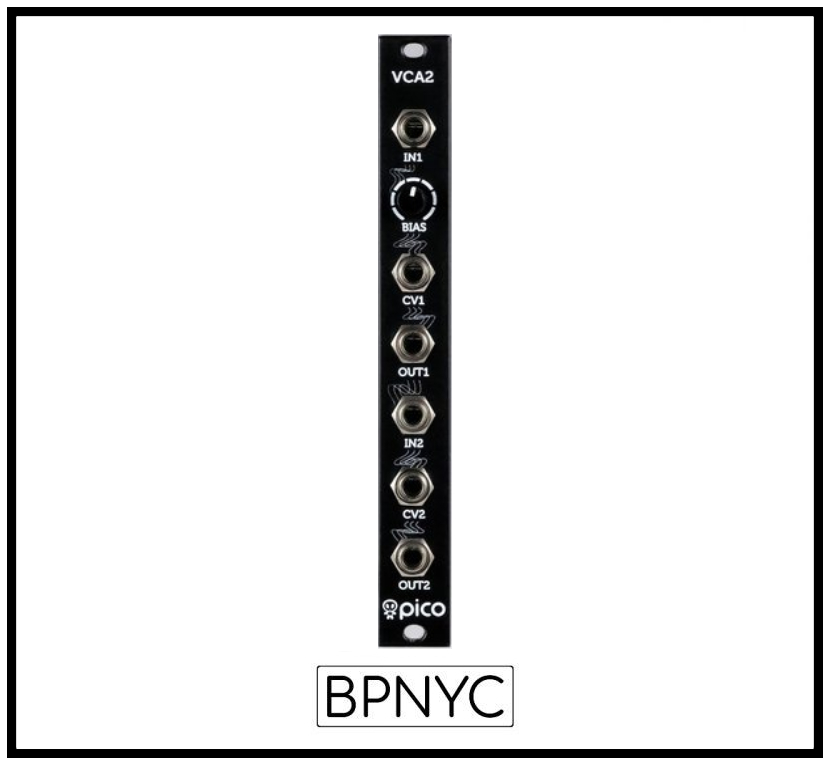

The Erica Synths Pico VCA2 is compact voltage controlled amplifier module, based on reliable AS3330 chip. It features two independent channels, and the first one comes with the manual offset adjustment, useful for full span vibrato effects. Audio and CV inputs of the first VCA are normalled to the second one, so the module can also be used as a buffered audio splitter. VCAs are DC coupled, and they can be used for controlling amplitude of control voltage signals.

Features

  • Two independent VCAs with a linear response
  • Manual bias adjustment on the top VCA
  • Input normalling
  • DC coupling
  • Input protection against overvoltage
  • Protection against reverse PSU connection

Technical specifications:

Nominal audio signal level0Vptp
CV level (full span)-5V - +10V
Max attenuation-110dB
Power consumption+20mA, -19mA
Module width3HP
Module depth35mm

User manual — Jan. 25, 2021

Erica Synths Pico VCA2 次回入荷分

販売価格: 18,711円 [通常販売価格: 18,900円]

重さ: 1lb
