4ms Pod 64X Powered パワーサプライ付き

  • Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

    The Pod64X is 64HP with 2.16" (55mm) of available module depth. The built-in power supply has six power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

    Pods require a power brick, or a barrel cable to daisy-chain to a Pod or Row Power that's already powered.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod64X typically will house up to six modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

  • 64 HP of Eurorack modular space
  • Extra room for deep modules
  • Standard M3 threaded holes
  • 100% lightweight anodized aluminum

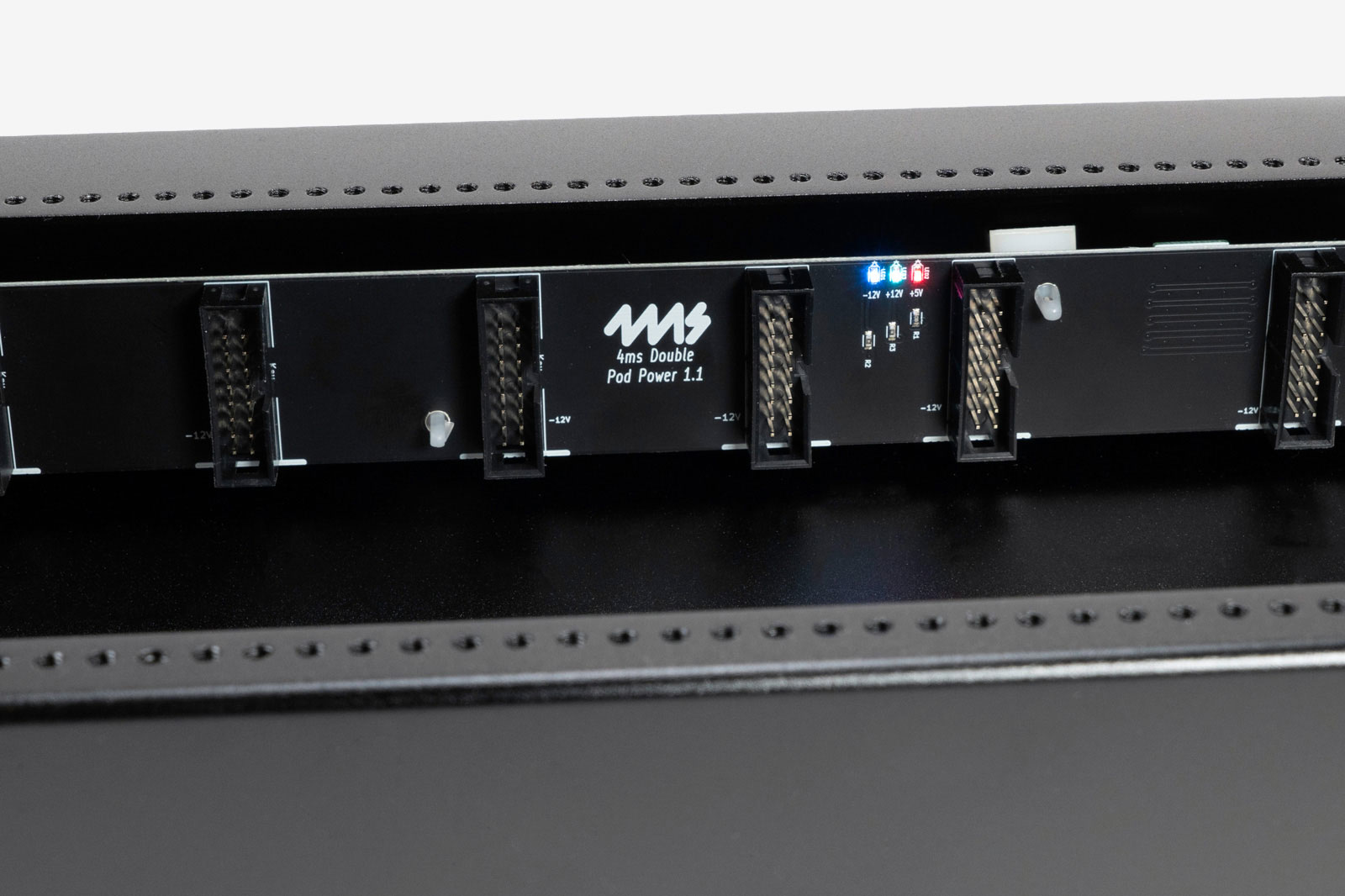

  • Built-in Power supply
  • Red, White, and Blue LED power indicators

Includes:

  • 64HP Pod, black anodized aluminum
  • Built-in power supply with six Eurorack power headers
  • Extra deep (2.16"/55mm) fits virtually every Eurorack module
  • M3 x 8mm pan-head screws, stainless steel (20)
  • Adhesive rubber feet (4)
  • power brick



Power Supply:

  • Four 16-pin Eurorack power shrouded headers
    • +12V max 1.4A
    • -12V max 0.67A
    • +5V max 1.0A

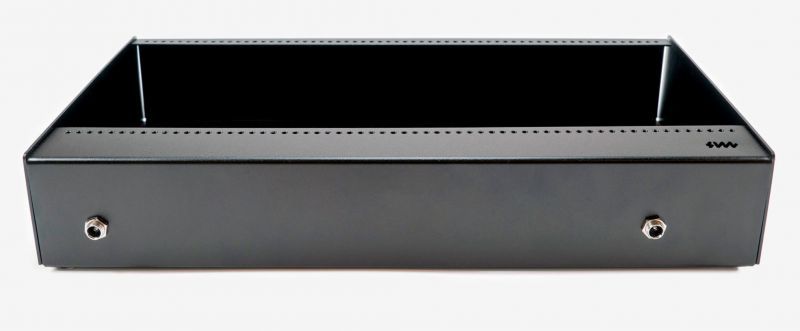

  • Power input: Two barrel jacks for daisy-chaining
    • 15V-20VDC, 2.1mm positive tip

Exterior dimensions:

  • Width: 329.7mm (12.98")
  • Height: 159.5mm (6.28")
  • Depth: 57mm (2.24")

Interior dimensions:

  • Max module depth: 55mm (2.16")
  • Module width: 64HP

Weight:

  • 0.5 kg = 17 oz

User Manual:

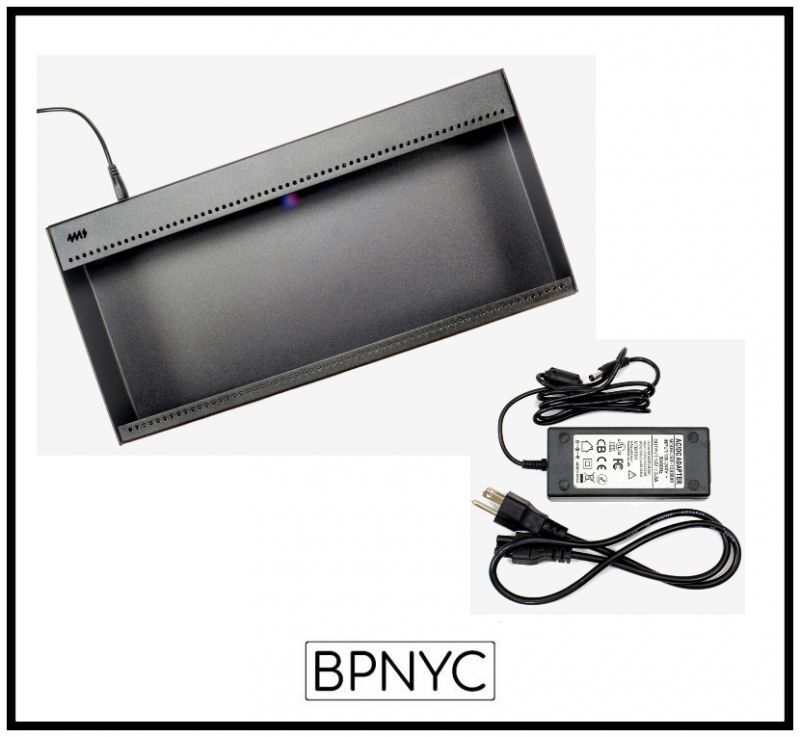

Power Brick Spec.

15V/3A (45W) / 2.1mm Barrel Plug (5.5mm outer diameter) / Positive Center

You also may use your own power brick if it meets the following requirements:

  • 15V to 20V DC
  • Positive center 2.1mm barrel plug
  • Minimum 20W output power
  • Low-noise output



他の写真

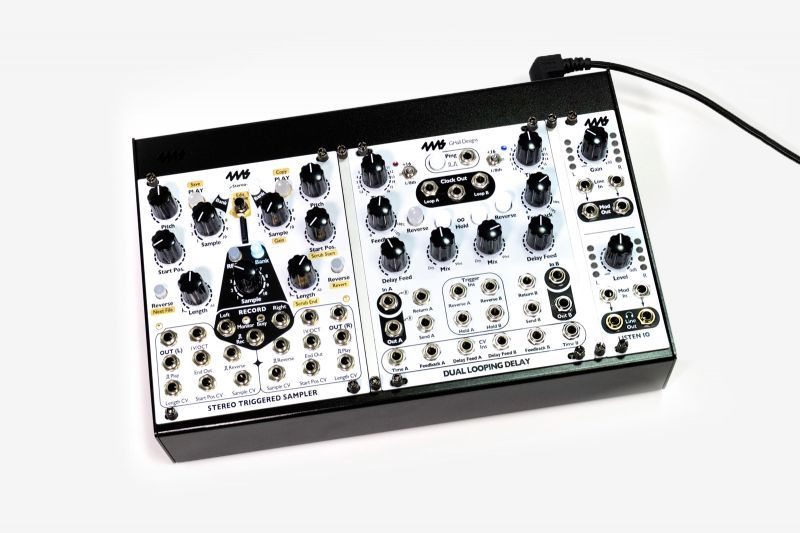

  • *使用例(モジュールは別売りです...)
