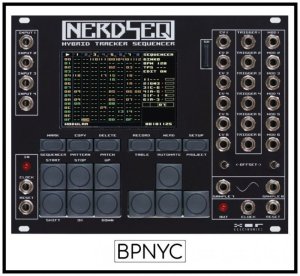

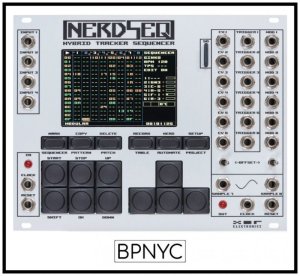

XOR Electronics NERDSEQ　

Power: ~150mA(+12V), ~32mA (-12V), 0mA(5V)
Hardware:
– 32HP, 2.5cm deep
– 3.5″ Colour Graphics IPS display with a resolution of 480 x 320 pixels
– 10 full size and 6 half size buttons
– 28 mini-Jack (mono), 4 CV Inputs (range 0..10 Volt) , 12 CV
outputs (Range -5 Volt /+5 Volt or 0 Volt / +10 Volt), 6 Trigger/Gate Outputs (5 Volt),
2 Sample outputs (-5 Volt/+5 Volt), Clock + Reset In/Output (5 Volt)
– microSD connector accessible on frontpanel
– 2 Expander ports for Midi and up to 4 extensions
Firmware:
– 8 Tracks -> 6 CV/Trigger/Gate, 2×2 sample tracks for 2 audio outputs
– 239 Sequencer rows
– 175 Patterns with each 64 (and less) Steps
– flexible and comfortable arrangement of patterns
– Capable for advanced song arrangements as well as live access to patterns
– Euclidean Rhythm input for Trigger Expander
– 176 Patches
– 32 Tables with 16 (and less) steps
– 8 Automation slots (LFO/Modulations)
– 8 ADSR Envelopes
– 12 Sample slots
– Sample support for RAW 8 bit mono and WAV 8/16 bit, Mono/Stereo
– 4 Oscillators with Sine, Triangle, Sawtooth, Pulse, Noise Waveforms
– 4 Operator FM Synthesis
– Projects as many as the SD card can hold
– Launchpad Integration
– With expansions up to 64 additional outputs sequenceable
– Midi multitrack / multichannel polyphonic sequencing with all midi features and additional modulations
…..and much more….
