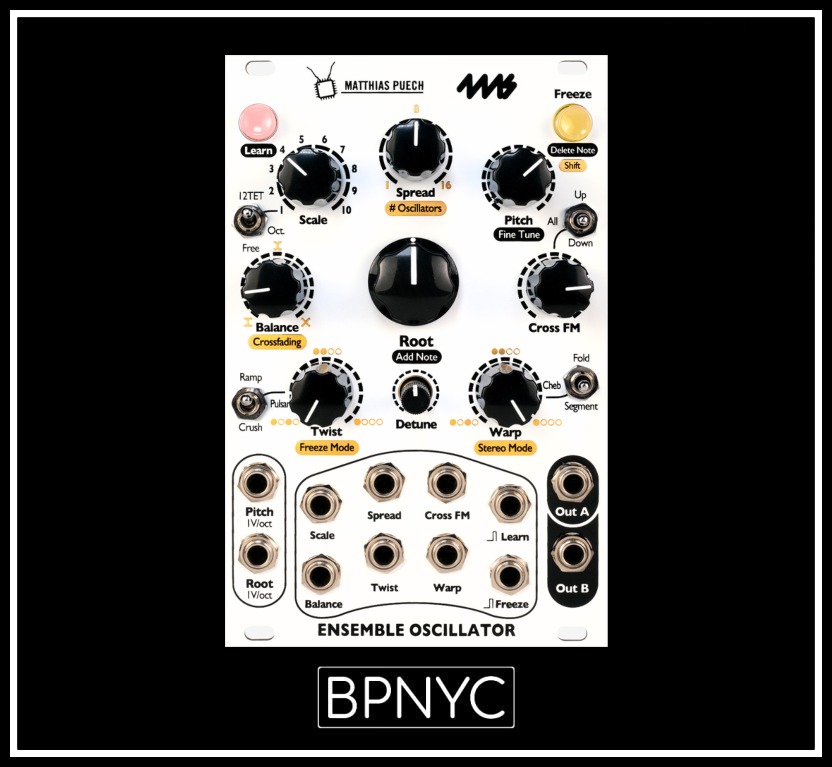

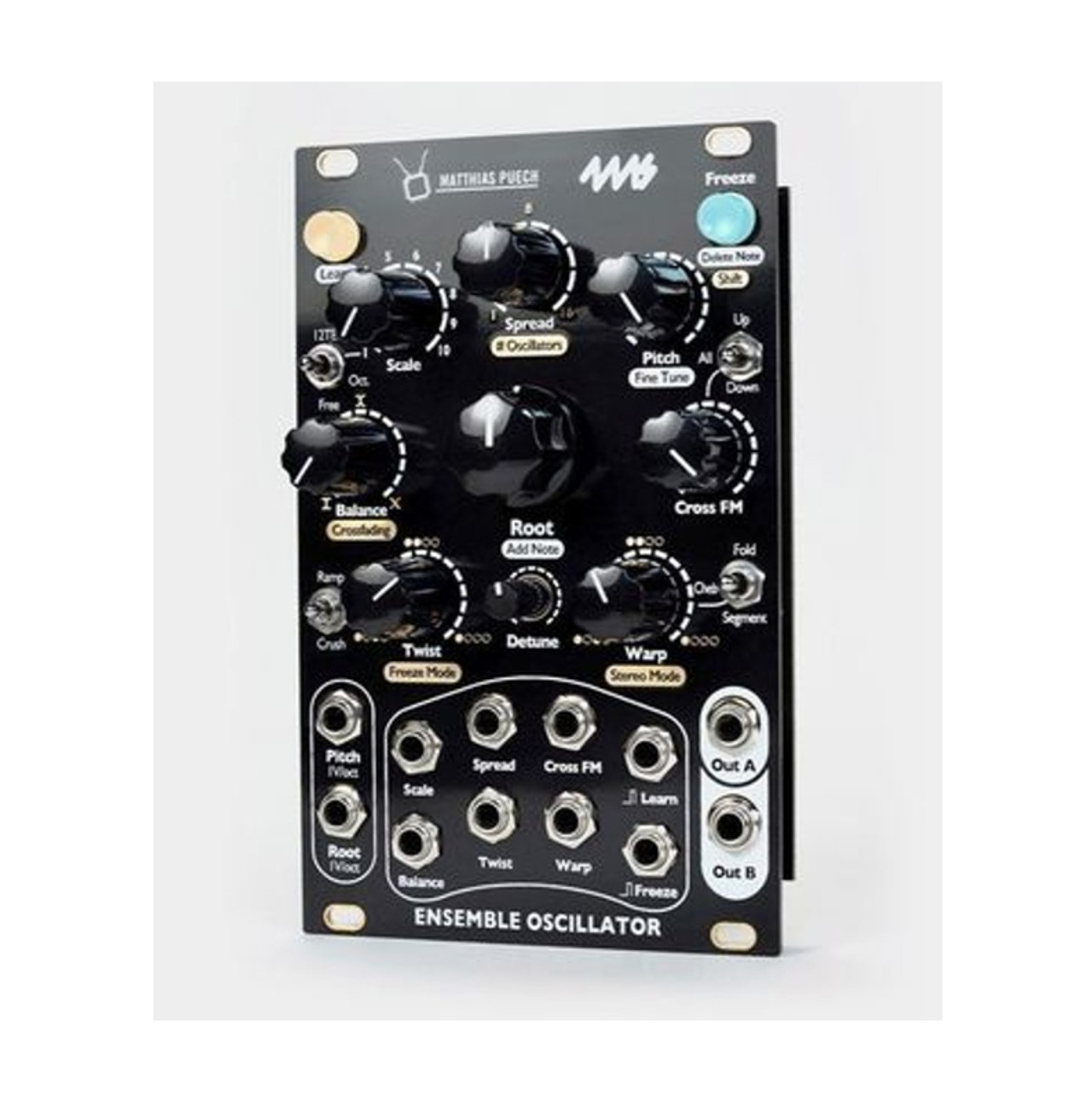

4ms Ensemble Oscillator [ENOSC] 次回入荷分

The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be “learned” and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

Features

16 sine-based oscillators bound to intervals of a selected Scale
30 factory-programmed, user-writeable scales organized in three groups:
12TET: all notes quantized to equal temperament, repeating over octaves
Octave: unquantized notes, repeating over octaves
Free: unquantized notes, repeating over the interval between the lowest and highest note
A simple method to program (“Learn”) your own scales manually or with a CV/Gate keyboard
Three Twist phase distortion effects
Three Warp wave distortion effects
Three algorithms of Cross FM for modulating the oscillators with each other
Mono or stereo output with selectable panning algorithm
Freeze button and jack to freeze the frequency of some of the oscillators, with selectable algorithm
Two 1V/oct inputs: Pitch (non-quantized), and Root (quantized)
High-accuracy, temperature-stable, eight octave range (-2V to +6V), can be calibrated to any keyboard
Six bi-polar CV inputs (-5V to +5V)
Two gate inputs for automated Learning and Freezing
Electrical and Mechanical Specifications

16HP Eurorack format module
0.98” (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header
Power consumption
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)
Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V
Gate inputs
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings
