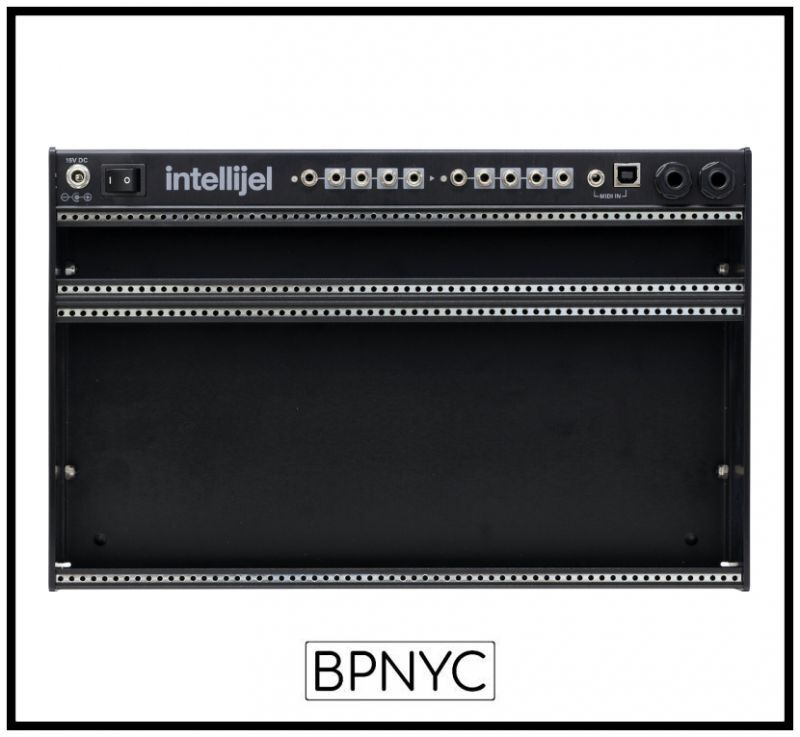

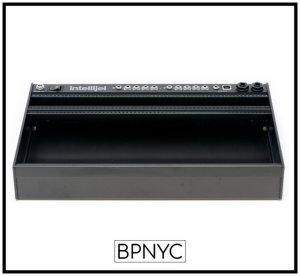

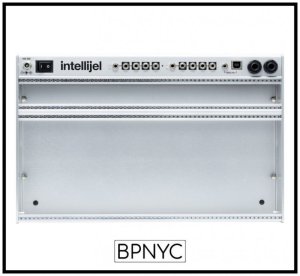

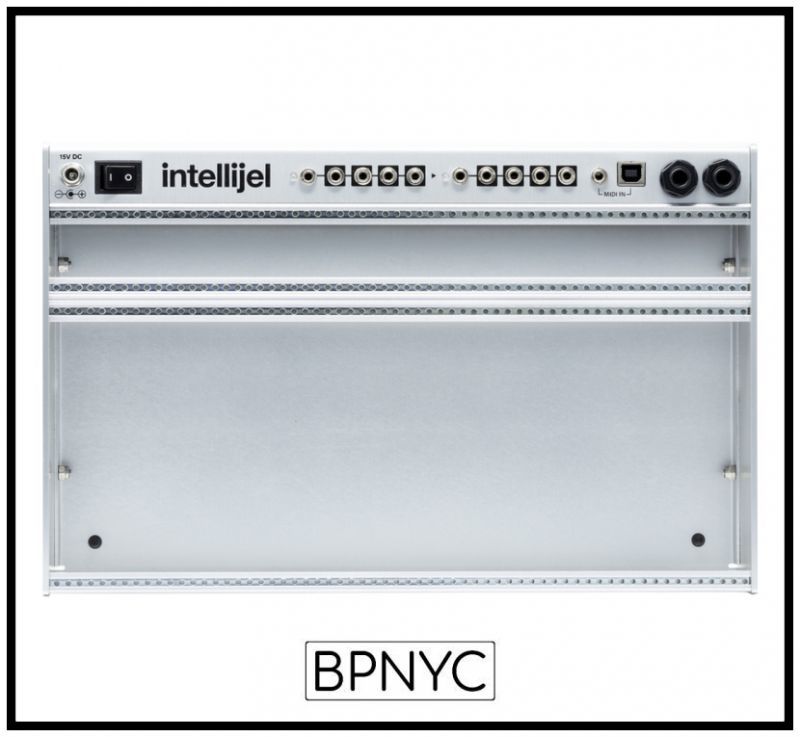

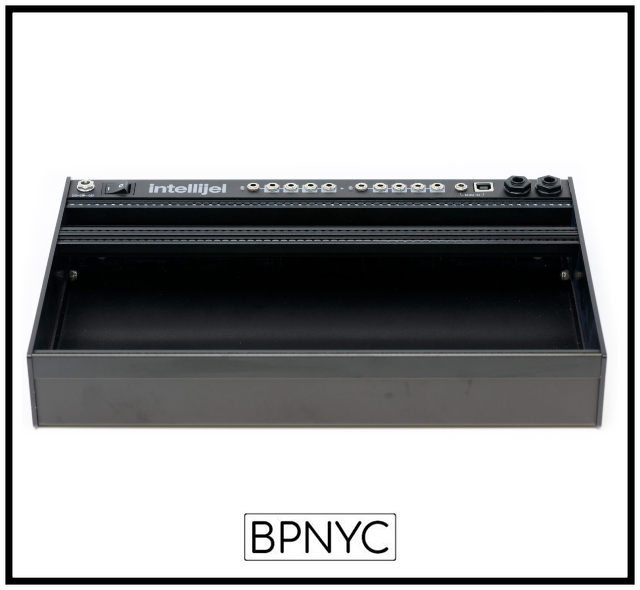

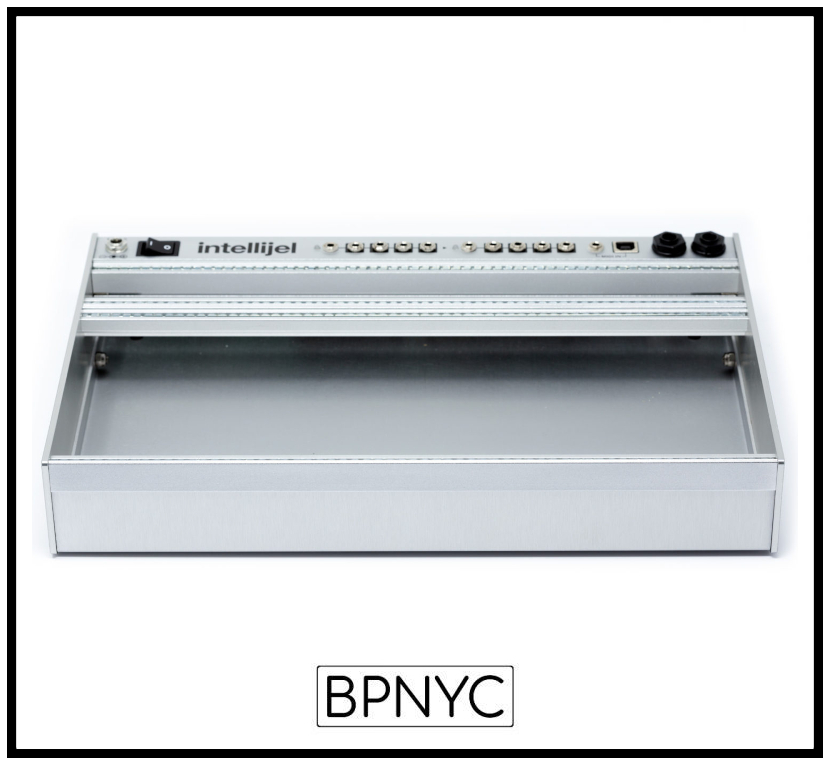

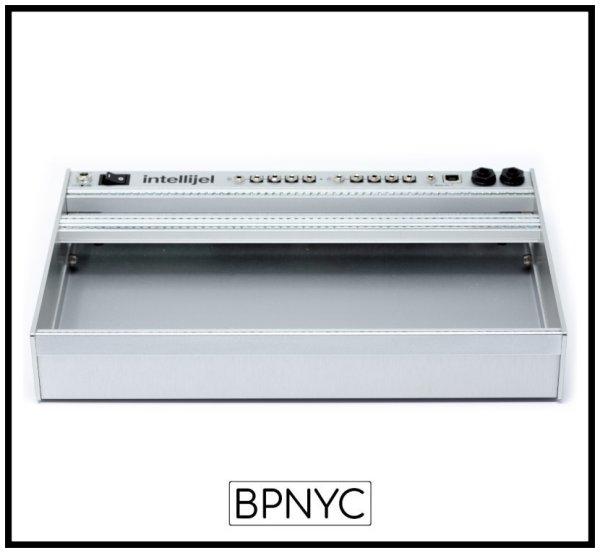

Intellijel Palette Eurorack Case 4Ux62HP Powered

Your Palette case is the ideal solution for your space conscious and portable needs. At about the same size as a small laptop, your Palette fits comfortably on your desktop; in your backpack; at your favourite coffee shop; in your jam space; or pretty much anywhere else you might desire to play. Your imagination is the only limit. With 62hp of rack space, you can piece together powerful but focused mini systems and control surfaces. Intellijel's 1U row and built-in i/o ports add a ton of extra utility to bring the most out of your eurorack modules. Truly a palette for the sonic artist.

Features

  • One 62 hp row of Eurorack (3U) module space.
  • One 62 hp row of Intellijel (1U) module space.
  • Built in dual buffered multiple with bi-polar led level indicators.
  • Expansion jacks for MIDI and balanced audio.
  • Threaded M3 strips for mounting modules.
  • High spec 40 Watt power supply capable of powering up to 12 modules with +12 V output at 1200 mA, -12 V output at 1200 mA and +5 V output at 500 mA.

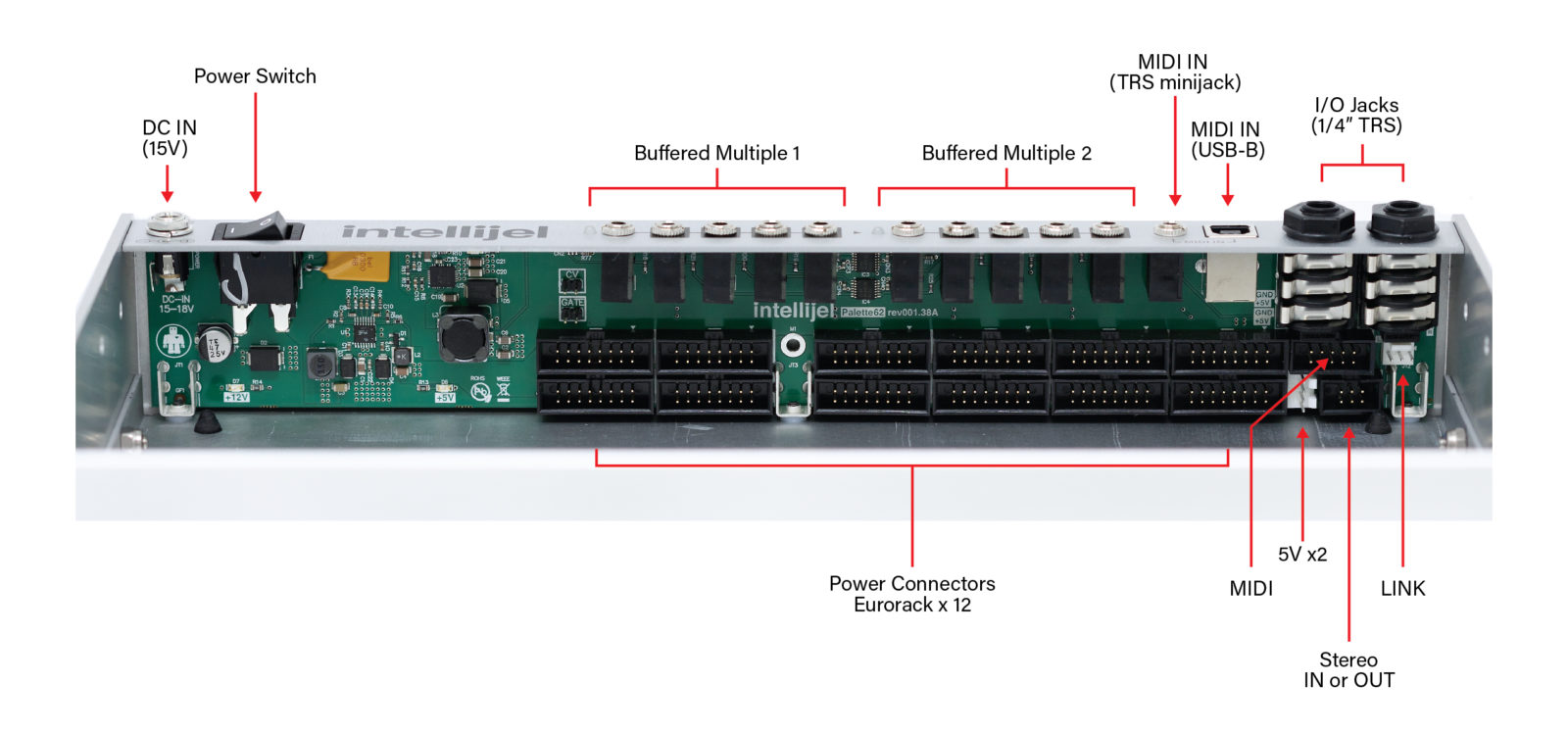

Utilities panel

  • Dual 1:4 buffered multiple.
  • Two 1/4″  balanced audio jacks that can be connected to the Stereo Line Out 1UPedal I/O 1U or Mixup.
  • ⅛” (3.5mm) MIDI Input that can be connected to µMIDI 1U.
  • USB port that connects to the µMIDI 1U and other future modules.
  • Rocker switch and barrel plug for power entry.

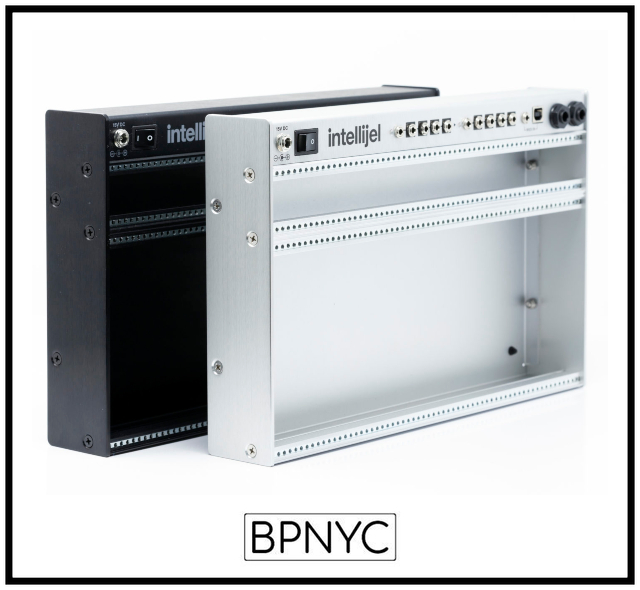

Construction

  • Anodized aluminum.
  • Aluminum extruded rails with steel threaded inserts
  • Rubber feet to protect your desktop.
  • Rear mounted power supply for maximum module depth

Includes

  • 40W Meanwell AC/DC adapter with right angled connector
  • 3FT North American IEC power cable
  • ⅛” (6.35mm)  TRS to 5-Pin Din Midi Adaptor

Specs + Downloads

62 HP324.4mm x 204.4mm x 51.3mm
1.36 kg w/ AC Adaptor
Palette PSU+12V output at 1.2A
-12V output at 1.2A
+5V output at 500mA
Module Depth45.5mm (37.4mm at each 1HP edge)
Manual

Manual (2019.07.25)



他の写真

Intellijel Palette Eurorack Case 4Ux62HP Powered

販売価格: 48,900円

重さ: 4lb
