Audio pre amp with envelope follower

INTRODUCTION

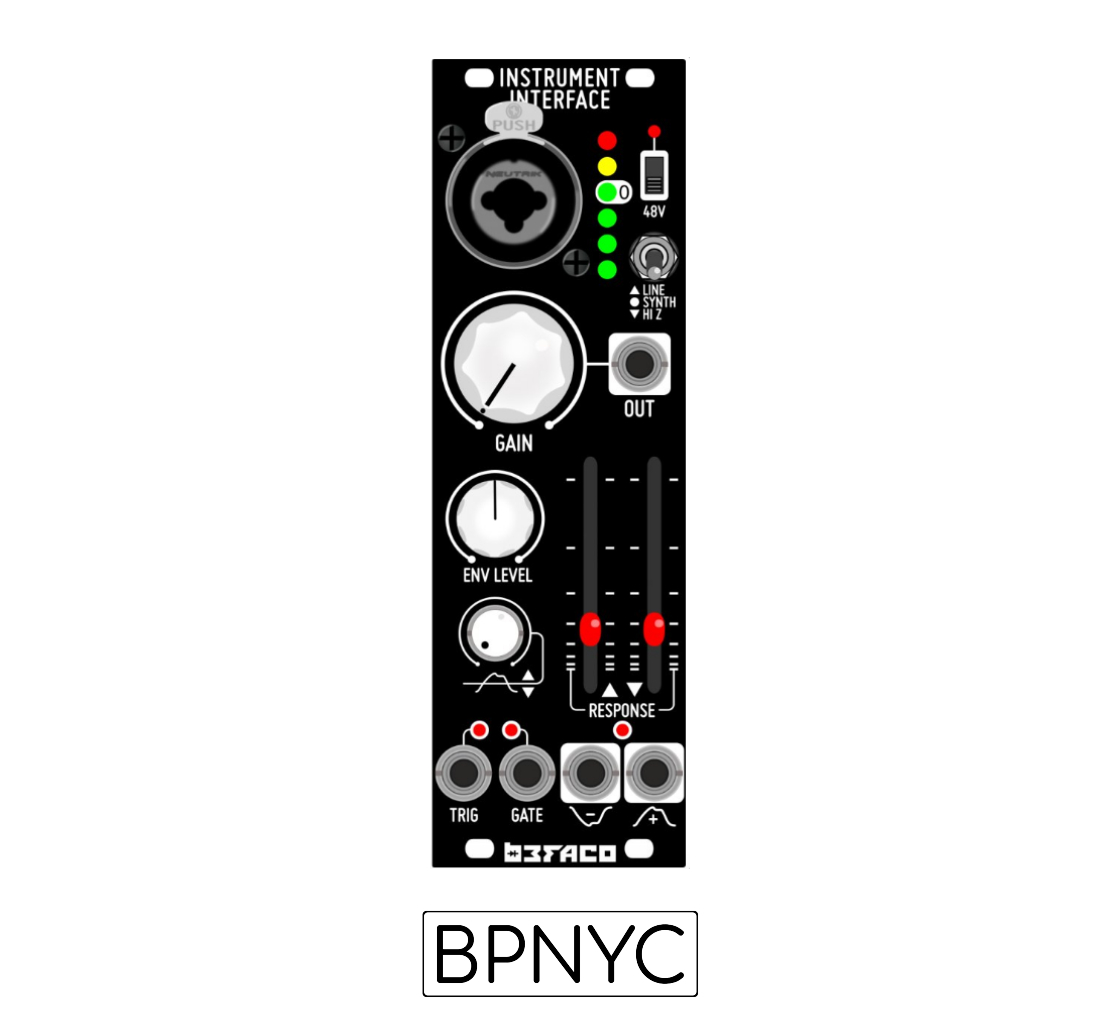

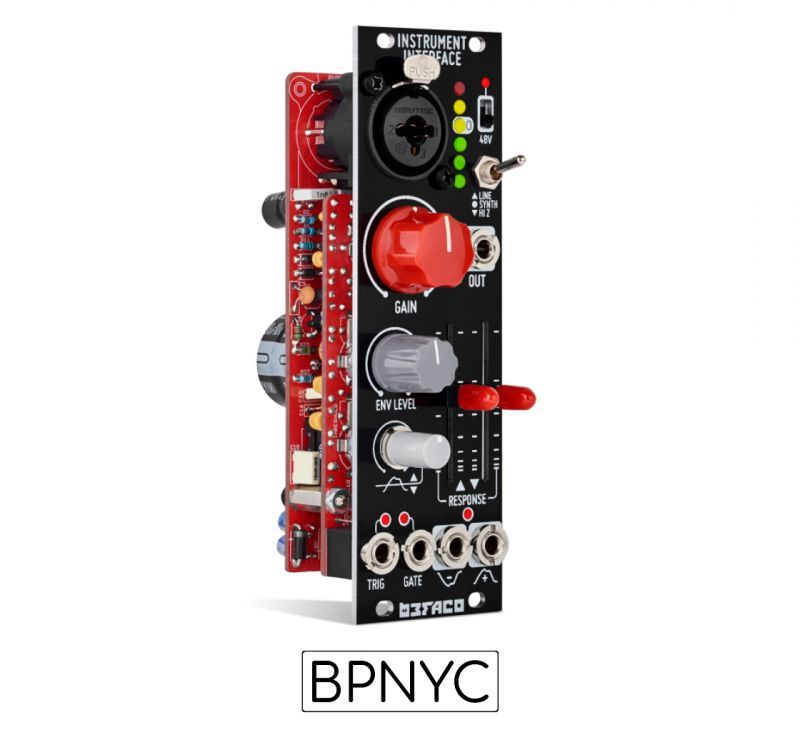

Instrument Interface is an eurorack pre-amp capable to bring any type of audio signal to modular levels thanks to its amplification circuit.
The module can drive regular and condenser microphones (+48V Phantom Powered) as well as Instrument and Line signals with a very low distortion ratio.
Going further from the regular re-amp operation, Instrument Interface offers some additional extra functions like a Trig/Gate extractor and Envelope Follower circuits, allowing you to use the character of your audio signal in more creative ways

FEATURES

- Neutrik combo input

- Phantom power selector

- Input impedance selector

- Separated Audio en envelope level controls.

- Envelope follower with atack and decay control

- Gate and trigger extractor with threshold selector.

SPECS

- Current needs: +12V: 26mA, -12V: 12mA

– Width: 8 HP

– Depth: 30 mm

– Aluminium, heat-treated front panel

– Designed, kits prepared and completed modules assembled in Barcelona
