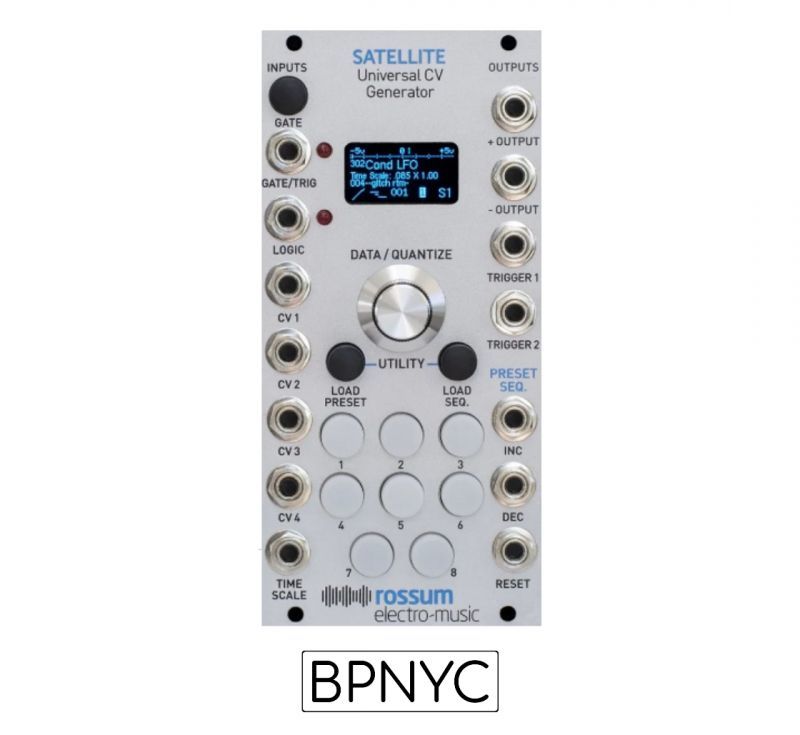

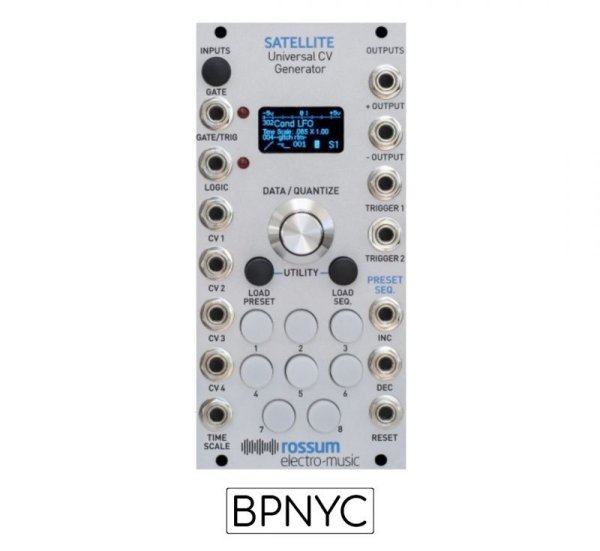

Satellite is a compact 12HP module that can be loaded with all (or a subset) of the presets and preset sequences from a Rossum Electro-Music Control Forge or other Satellite and then function as a completely stand-alone CV generator. Once the presets and preset sequences are transferred from the other module (via a patch cord connection), Satellite no longer requires any connection to the module.

With one or more Satellites, you can take advantage of all of your Control Forge presets and sequences in multiple cabinets or even different systems.

Multiple Satellites can be programmed from the same Control Forge and synced together via their Gate inputs to create complex polyphonic sequences and modulation contours.

In addition to direct connection with a Control Forge or other Satellite, presets and preset sequences can also be loaded via audio file archives that have been saved from a Control Forge or Satellite. And since those files can be posted online and downloaded, it’s a great way to share and exchange presets.

Satellite Specifications
PRESETS

500

PRESET SEQUENCES

200

SEQUENCE STEPS

20,000 Dynamically Allocated

INPUTS

Gate/Trig

1x 3.5mm mono socket
100kΩ Input Impedance
1.6V threshold

Logic

1x 3.5mm mono socket
100kΩ Input Impedance
1.6V threshold

CV 1

1x 3.5mm mono socket
100kΩ Input Impedance
-5V to +5V

CV 2

1x 3.5mm mono socket
100kΩ Input Impedance
-5V to +5V

CV 3

1x 3.5mm mono socket
100kΩ Input Impedance
-5V to +5V

CV 4

1x 3.5mm mono socket
100kΩ Input Impedance
-5V to +5V

Time Scale CV

1x 3.5mm mono socket
100kΩ Input Impedance
-5V to +5V

Preset Sequencer Dec

1x 3.5mm mono socket
100kΩ Input Impedance
1.6V threshold

Preset Sequencer Inc

1x 3.5mm mono socket
100kΩ Input Impedance
1.6V threshold

Preset Sequencer Reset

1x 3.5mm mono socket
100kΩ Input Impedance
1.6V threshold

OUTPUTS

+ Output

1x 3.5mm mono socket
<1Ω Output Impedance
-5V to +5V

– (Inverted) Output

1x 3.5mm mono socket
<1Ω Output Impedance
-5V to +5V

Trigger 1

1x 3.5mm mono socket
1kΩ Output Impedance
10V
Selectable Width

Trigger 2

1x 3.5mm mono socket
1kΩ Output Impedance
10V
Selectable Width

POWER REQUIREMENTS

+/-12V via 16-pin, Doepfer-style connector

CURRENT DRAW

125mA +12V, 25mA -12V (maximum)

DIMENSIONS

12HP (W); Panel to power connector (with connector plugged in) 25mm (D)

SUPPLIED ACCESSORIES

1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide
