2hp MMF　次回入荷分

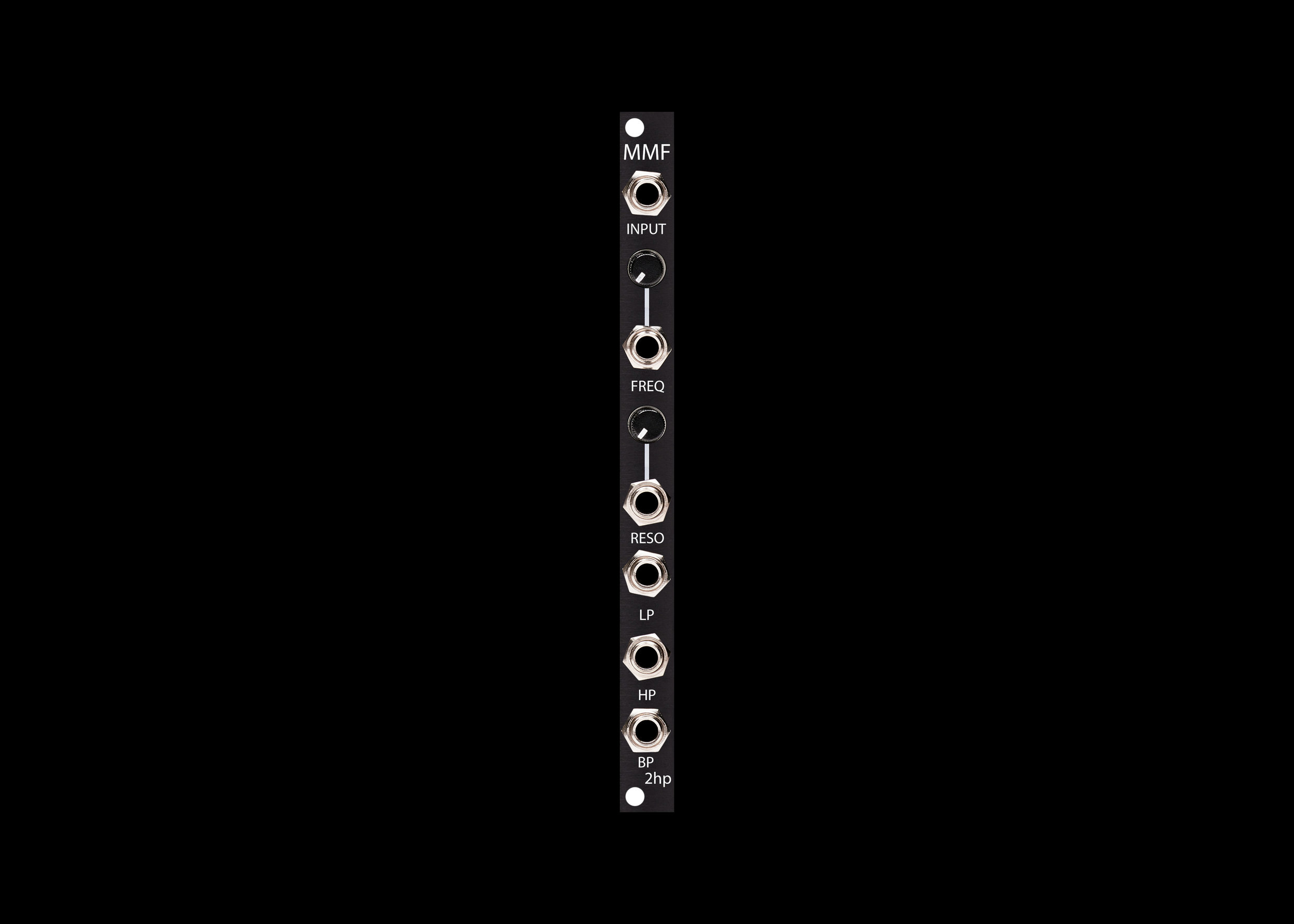

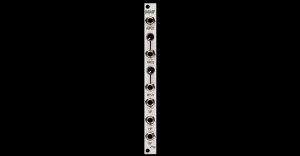

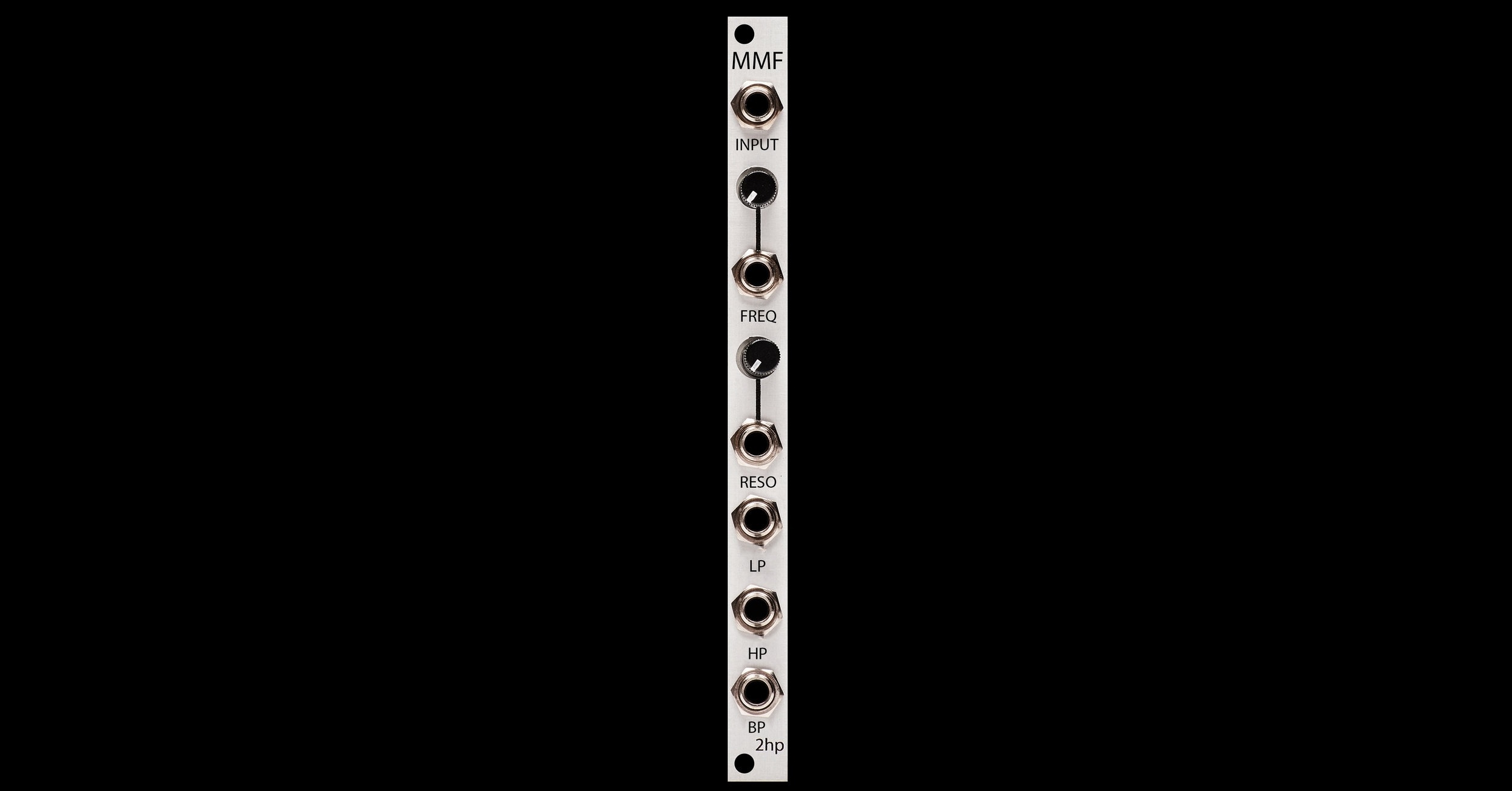

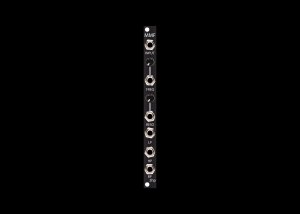

MMF is an analog, multimode filter with a 12dB per octave slope. Its sonic character swings all the way from classic low pass to squelchy acid lines. Simultaneous outputs of low pass, high pass, and band pass filter types are provided allowing for many variations of the input signal. Whether you’re looking for smooth and creamy, or resonant and wild, MMF can go there.

... Voltage controlled multi mode filter

... Analog filter topology

... 12dB per octave slope

... Low pass, high pass, and band pass outputs

Specifications

Width: 2HP

Depth: 42mm (Skiff Friendly)

Power: +12V: +55mA, -12V: -55mA
