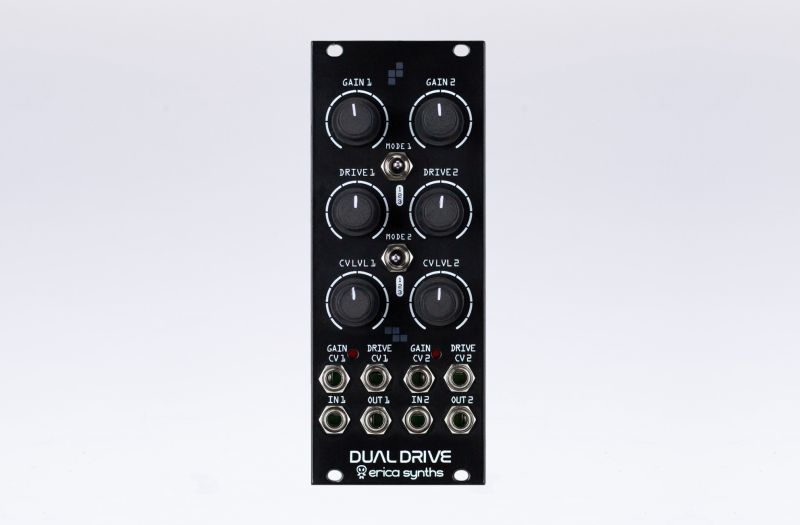

Erica Synths Dual Drive

For extreme, distorted drums Dual Drive module is a must! The module features two identical overdrive sections with adjustable Gain and Drive level, each with three flavors of overdrive. CV control over Gain and Drive adds more expression, while built in limiter prevents output signal to run into undesired clipping. Furthermore, the output of the first section is normalled to the input of the second, so you automatically get extreme, versatile dual overdrive circuit. The module can be used in the stereo appliations as well and it's not limited for drums only - it will turn any sound source into roaring monster.

Features
...Two identical overdrive circuits
...Manual GAIN and DRIVE controls
...CV control with an attenuator over GAIN and DRIVE
...Mode switch for selecting one of three overdrive flavours
...Output signal limiter
...Drive level LEDs

Audio output level
-5V...+5V

CV level (full span)
-5V...+5V

Power Consumption
58mA@-12V

Module width
10HP

Module depth
50mm

英語マニュアル

＊ Erica Synths 各商品はお取り寄せのため納期は約1ヶ月になります事をご了承ください...
