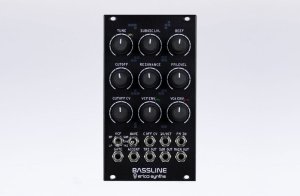

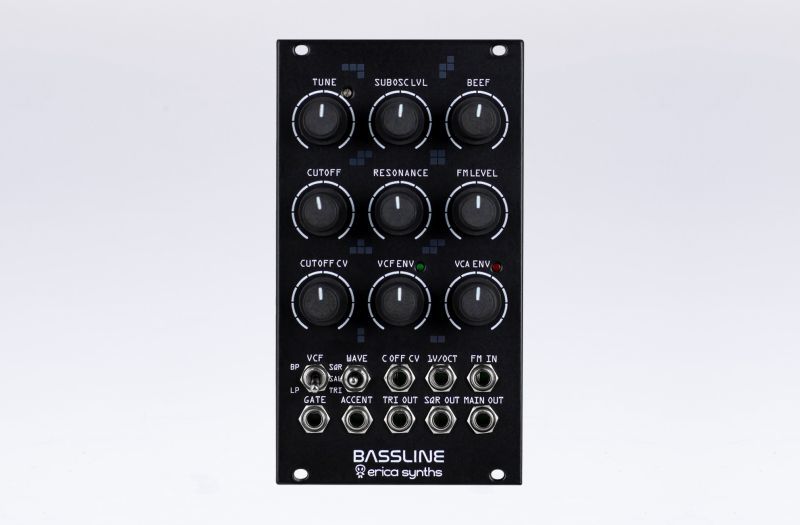

Erica Synths Bassline 次回入荷分

Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads. It features AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and unique features - transistor based suboscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from one oscillator. Accent provides more expression to the bassline, by adding volume and opening the VCF slightly.

Features
...Fully analogue circuit
...Great 1V/oct tracking
...Simultaneous Triangle, Square and Master outputs
...Accent input
...Transistor-based suboscillator
...BBD-based VCO detune emulation
...Integrated VCF and VCA decay envelopes
...LP/BP VCF
...External VCO FM and VCF cutoff CV inputs

Pitch range
C0-C8.el

Audio output level
-5...+5V

CV level (full span)
-5V-+5V

Power consumption
+110mA, -70mA

Module width
14HP

Module depth
35mm

英語マニュアル

＊ Erica Synths 各商品はお取り寄せのため納期は約1ヶ月になります事をご了承ください...
