Replacement US Standard Tailpiece Mounting Studs (NO ANCHORS)Gold

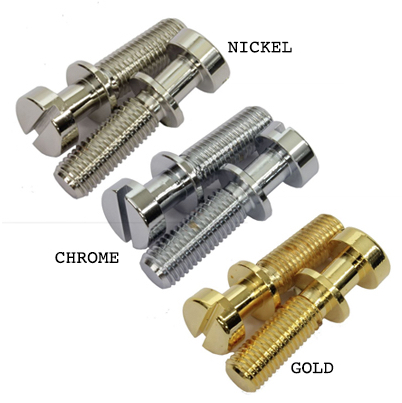

Chrome Metric Replacement Stop Tailpiece Studs

Description
To fit the cuffs on the TOWNER Down Tension Bar, the stop tailpiece studs should be no wider than 0.265 inches at the neck (see “G” in image above).

Gibson’s Memphis Reissue Guitars have a wider neck posts width and are US Standard threads.

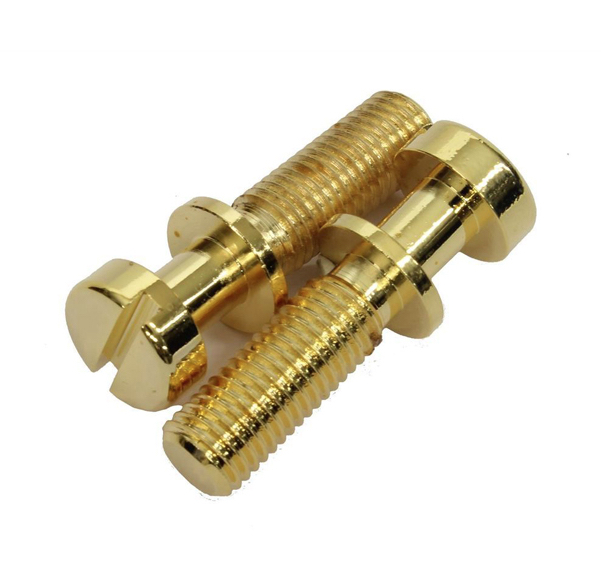

Plated steel studs
Mounting studs (U.S. SAE 5/16 – 24)
Same size as what is currently used by Gibson
Overall Length 1 7/16″ ( 36.2mm)
Threaded section length 7/8″ (22mm)
Fits tailpiece with ears thickness of 5/16″ (8mm) and under

Weight 1.4 oz
Dimensions 3 x 2 x 2 in
