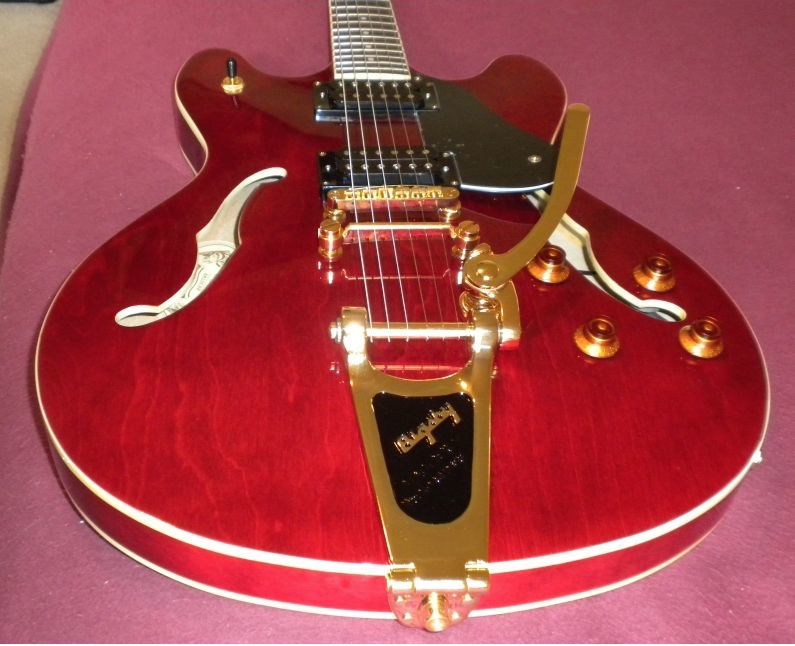

BIGSBY® B6 Kit with TOWNER System Gold

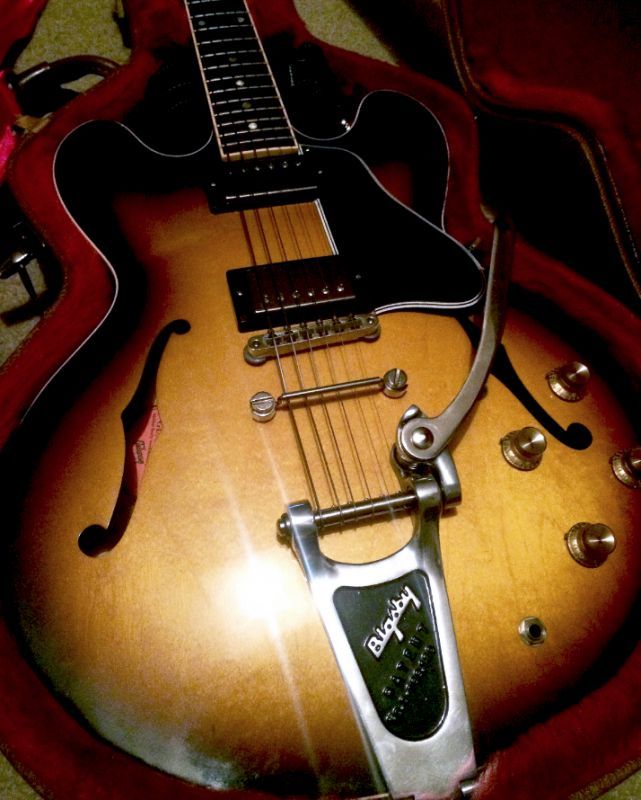

BIGSBY® B6 with the TOWNER Down Tension Bar manages your sustain controlling your break angle.

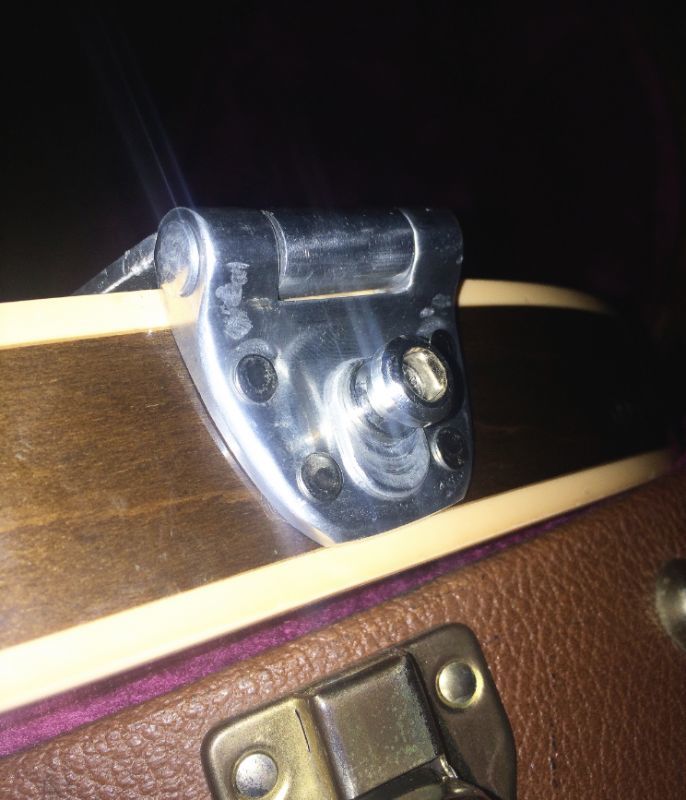

The TOWNER Hinge Plate Adaptor retains the hinge plate to the guitar with a #8 2″ screw.

BIGSBY® B6 *recommended for ES-335 style guitar models.

Description

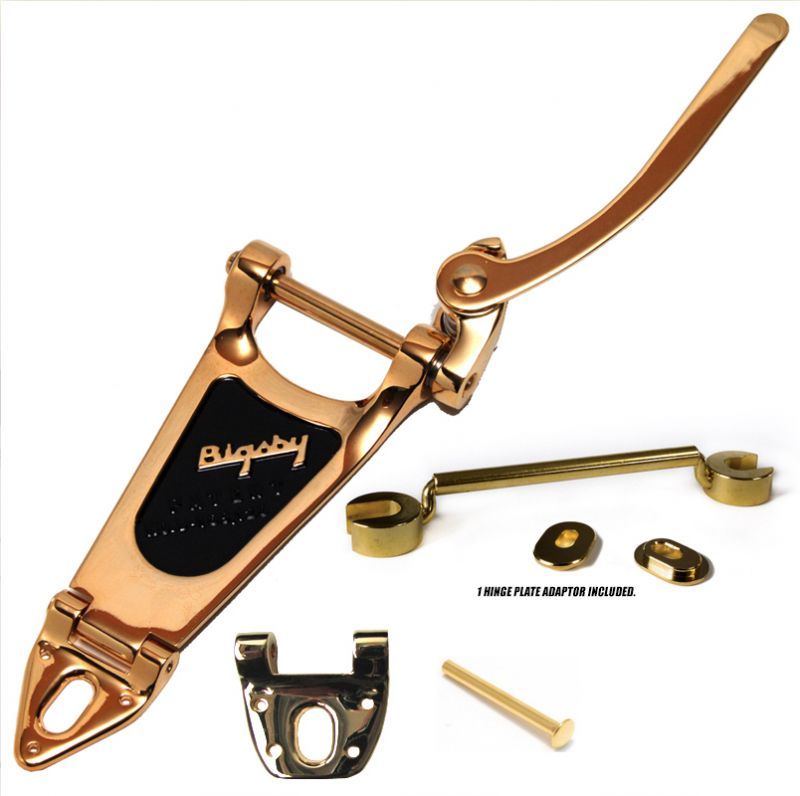

“BIGSBY® B6 Kit with TOWNER System Gold”

The BIGSBY® B6 is preferred for ES-335 style guitar models because the B6 is longer and suits the longer ES-335 style guitar bodies.
The BIGSBY® B6 will come to you already modified for your convenience.

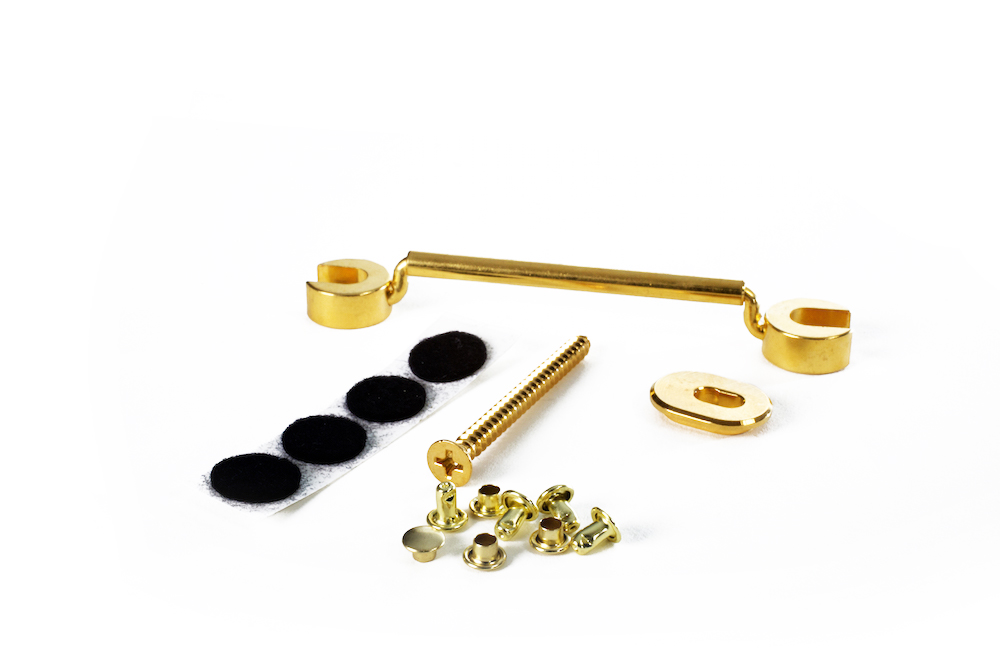

The TOWNER System provides a screw-less system and innovation of string control with the down tension bar and the hinge plate adaptor provides a flat surface for all strap button and strap lock buttons.
The BIGSBY® Hinge Plate and Hinge Pin are included.

*NOTES:

• Gibson Memphis Reissues and other Gibson Reissues sometimes have larger neck posts on the tailpiece studs, they should be NO wider than 0.265 inches.
If they are wider than 0.265 inches you will need to purchase different tailpiece mounting studs.

• ‘Some’ ES-347’s have the studs set lower on the guitar body.
If so, use the TOWNER B3 Kit because the studs are set further back on the guitar.

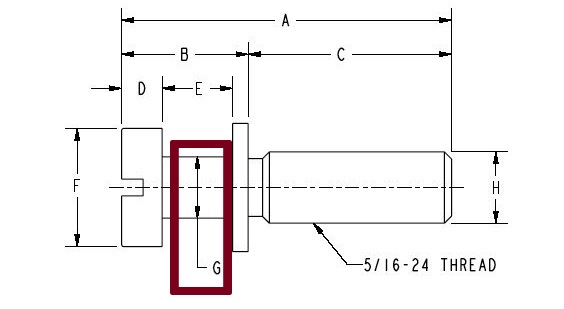

• CHECK WIDTH of STUD NECK POST:

Measure the neck width of your studs, they should be NO wider than 0.265 inches.
If they are wider than 0.265 inches you will need to purchase different tailpiece mounting studs.

(*The TOWNER Down Tension Bar is designed to fit the neck width of stock GIBSON Guitar stud posts.)

If you buy the complete TB6 Kit we will put the rivets in the hinge plate for you!!

Additional information
Weight 16 oz
Dimensions 9.5 x 5 x 2.5 in
