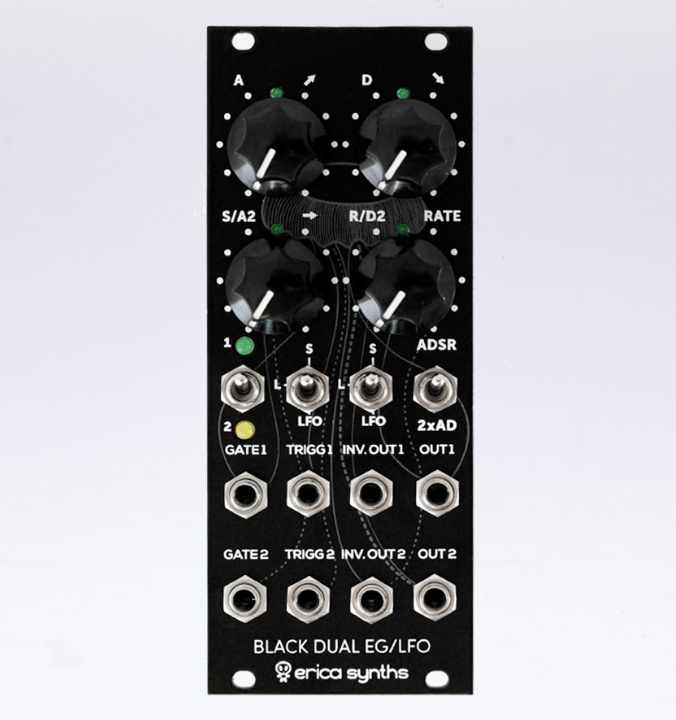

Erica Synths Black Dual EG/LFO

Two full ADSR EGs, two unique LFOs with plenty of features just in 10HP!

We managed to put two full ADSR envelope generators, you can adjust one by one or two simultaneous AD/ASR envelope generators and unique, not seen before functionality LFO in just 10HP! This saves a lot of rack space, you can use for other Black Series modules!

Features:
2xADSR envelope or 2xASR envelope
2xLFO
Draw your own LFO shape!
Gate and Trigger inputs
Direct and Inverter outputs
Long/Short EG switch
Full ADSR looping
LFO key follow function
Each step activity indication LEDs
Diode protection on reversed power supply
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

Technical specifications-
EG Output signal level: 0 – +10V
LFO output signal level: -5V – +5V
LFO rate: 0,2Hz – 30Hz
Sustain level: 0 – +10V
Max Attack time: 0,125’’(S), 2’’(L)
Max Decay time: 0,125’’(S), 1’’(L)
Max Release time: 0,350’’(S), 5’’(L)
Power consumption: +25mA, -15mA
Module width: 10HP
Module depth: 25mm
