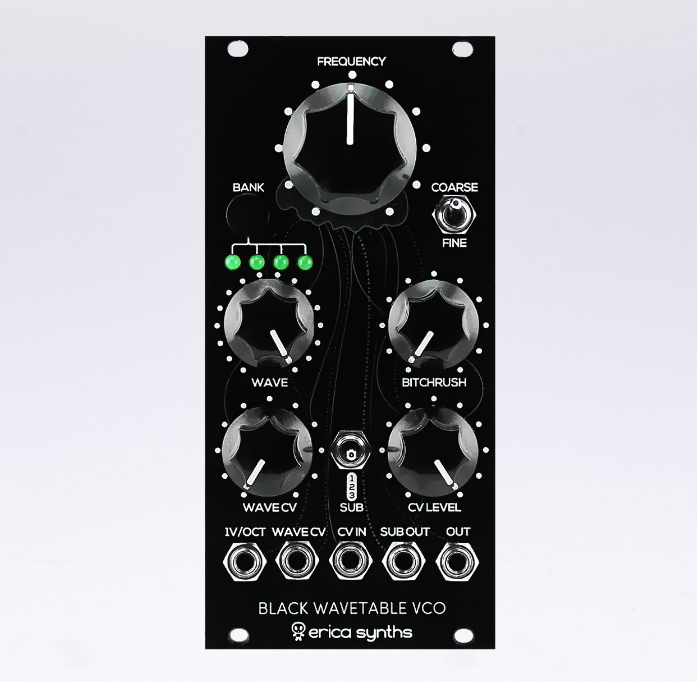

Erica Synths Black Wavetable VCO

Black Wavetable VCO is compact, fat sounding wavetable VCO that features 16+ banks of selected waves: classical synths, FM synths, Erica modular, vowels and others.

The VCO has separate -1 and -2 octaves suboscillator output, built in VCA and wave morphing feature for more pleasant sound. Additional ROM chips (sold separately) with extra wavetables are available to adapt the module to your style of making music.
Features:
16 wavetables of 16 waves
Additional ROM chips with extra waves
VC wavesurf
VC bank surf
Manual and VC bitcrush
Built in VCA
Wave morphing
Suboscillator output
3 suboscillator waves (-1 and -2 actaves)
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

Technical specifications-
Output signal level: -5V – +5V
Frequency range: 30Hz – 5kHz
CV Input level: -10mV – +10mV
Power consumption: +48mA, -12mA
Module width: 12HP
Module depth: 25mm
