Erica Synths Fusion Delay/Flanger/Vintage Ensemble 要予約

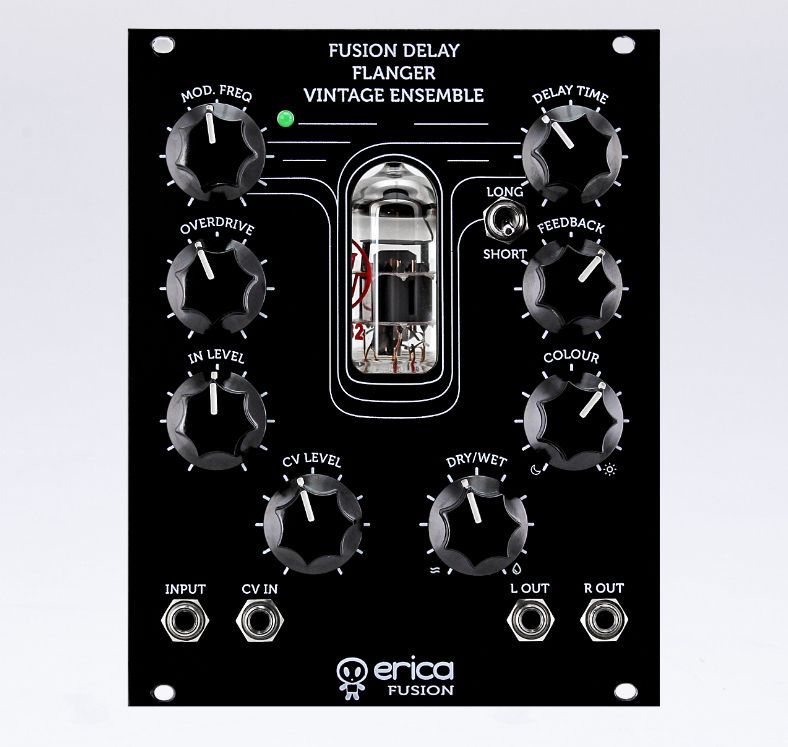

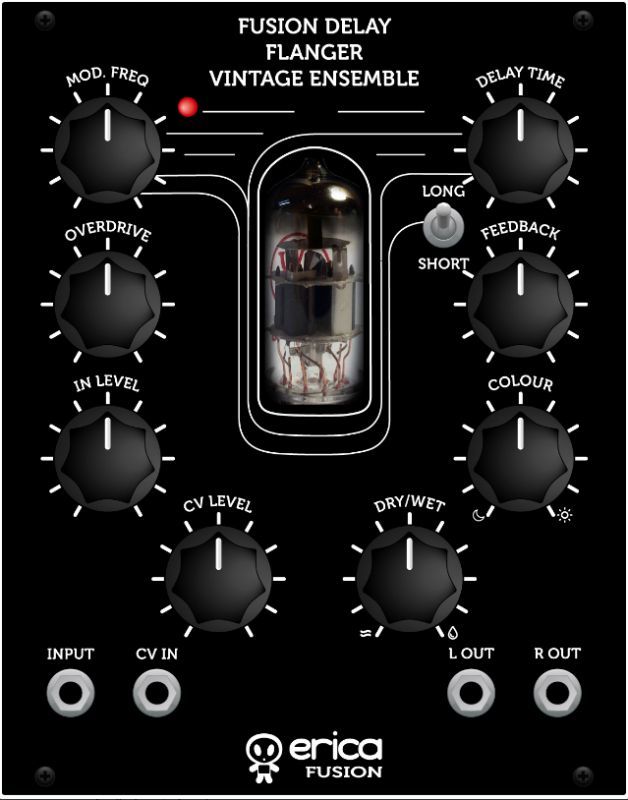

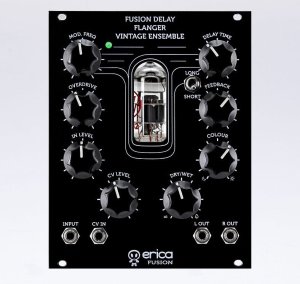

Erica Synths Fusion Delay/Flanger/Vintage Ensemble module is distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and feedback path for extra thickness of sound.
For more flexibility, lowpass filtering is fully adjustable from none to extreme. Special feature, not found in eurorack, is Vintage Stereo Ensemble – effect that’s common on vintage synthesizers to create moving and thick spatial sound from a monaural tone generator, be it FM, DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal.
Price: 375EUR
+ 21% VAT for individual customers in EU without EU VAT registration number + shipping
Technical specifications:
Audio input signal level
up to 20V ptp
Max delay time SHORT setting
20ms
Max delay time LONG setting
200ms
LFO range
0.1Hz – 30Hz
Power supply
bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU
Power consumption
Tube heater PSU configuration: 35mA@+12V, 20mA@-12V, 300mA@6VAC
Eurorack PSU configuration: 35mA@+12V, 170mA@-12V (NB – start-up power consuption for few seconds is +-250mA)
Module width
20HP
Module depth
35mm
For more flexibility, lowpass filtering is fully adjustable from none to extreme. Special feature, not found in eurorack, is Vintage Stereo Ensemble – effect that’s common on vintage synthesizers to create moving and thick spatial sound from a monaural tone generator, be it FM, DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal.
Price: 375EUR
+ 21% VAT for individual customers in EU without EU VAT registration number + shipping
Technical specifications:
Audio input signal level
up to 20V ptp
Max delay time SHORT setting
20ms
Max delay time LONG setting
200ms
LFO range
0.1Hz – 30Hz
Power supply
bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU
Power consumption
Tube heater PSU configuration: 35mA@+12V, 20mA@-12V, 300mA@6VAC
Eurorack PSU configuration: 35mA@+12V, 170mA@-12V (NB – start-up power consuption for few seconds is +-250mA)
Module width
20HP
Module depth
35mm
Erica Synths Fusion Delay/Flanger/Vintage Ensemble 要予約
販売価格: 69,102円 [通常販売価格: 69,800円]
重さ: 1lb
