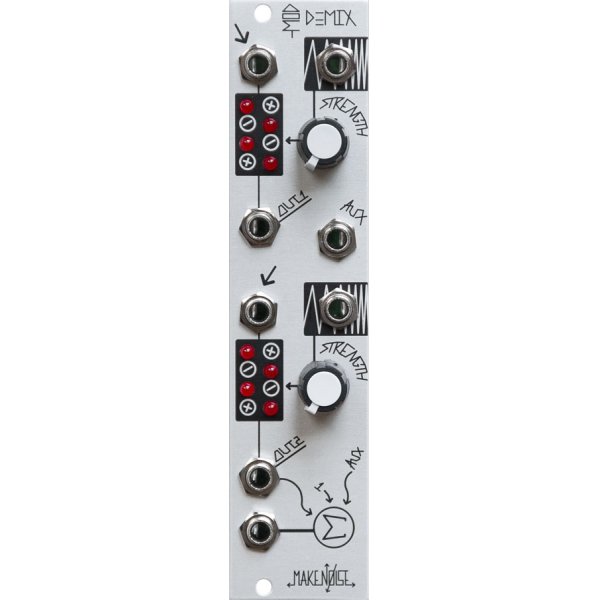

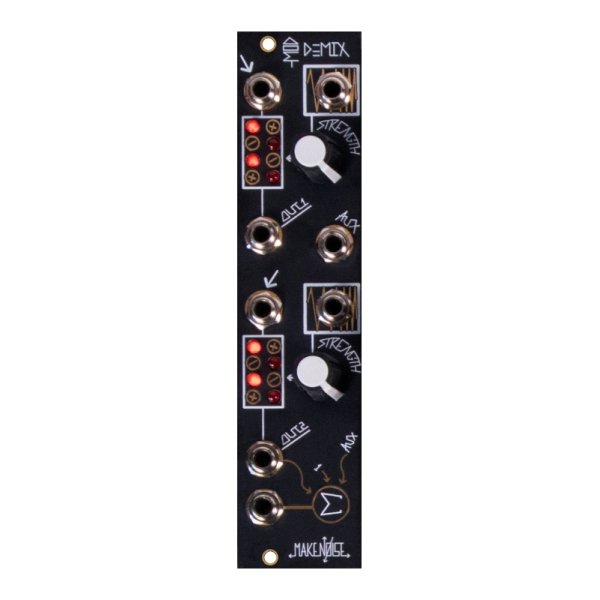

modDemix
The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.

Unique balanced modulator circuit turns OFF around zero volts at the Carrier/ Control INput, making the circuit behave well as a VCA

STRENGTH is a Combo Knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control setting level, with signal patched to STRENGTH CV IN, it works as an attenuator, setting the strength of the modulation

Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer

AUXiliary IN allows for the stacking of multiple modDemix and/ or Optomix to create larger mixes

Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod

MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module

Pairs well with MATHS and Optomix

Specifications
Width:
6hp
Max Depth:
24mm
Power:
30mA@ +12V 30mA @ -12V
