Rotating Clock Divider　専用ブレイクアウトモジュール

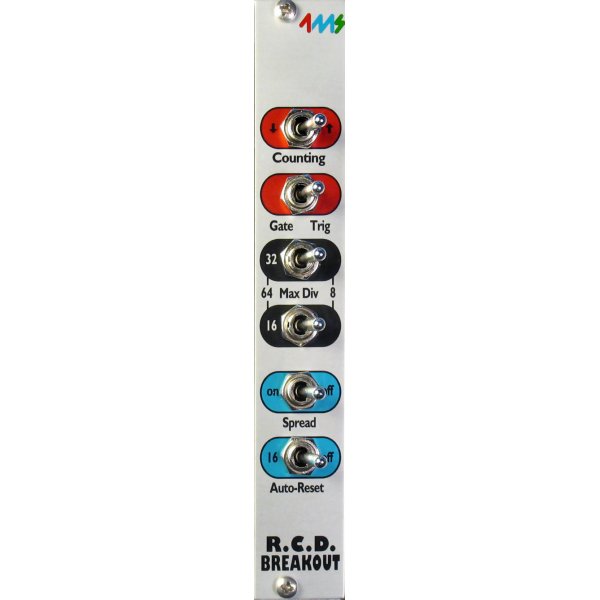

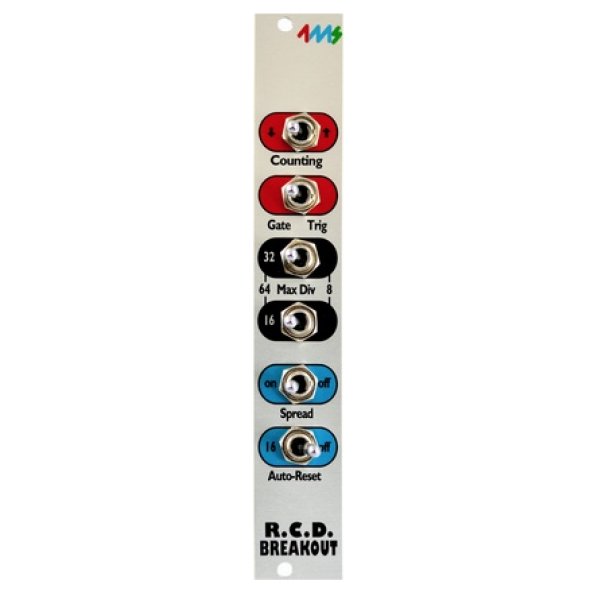

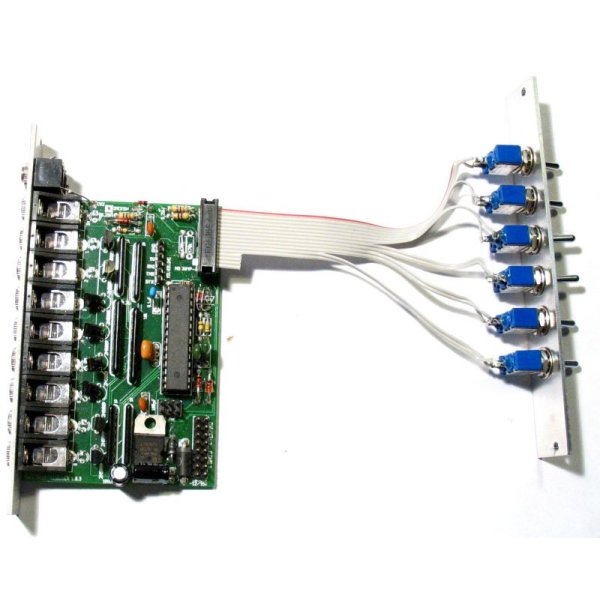

The RCD Breakout adds features to the Rotating Clock Divider module. Six switches allow you to set the maximum Divide-by amount, Gate or Trigger mode, Counting mode, Spread mode, and Auto-Reset. The RCD Breakout requires the RCD to function, and does not use any extra power.

Features
Gate Counting: Down/Up
Gate/Trigger mode
Divide range up to Divide-by-64
Spread mode: Spread mode causes the output to "spread" evenly amongst the entire max division range (see manual).
Auto-reset: 16/off


Module size:
The RCD is 4HP and 48mm (1.85")

Power consumption:

+12V rail: __mA
+5V rail: not used
-12V rail: not used
