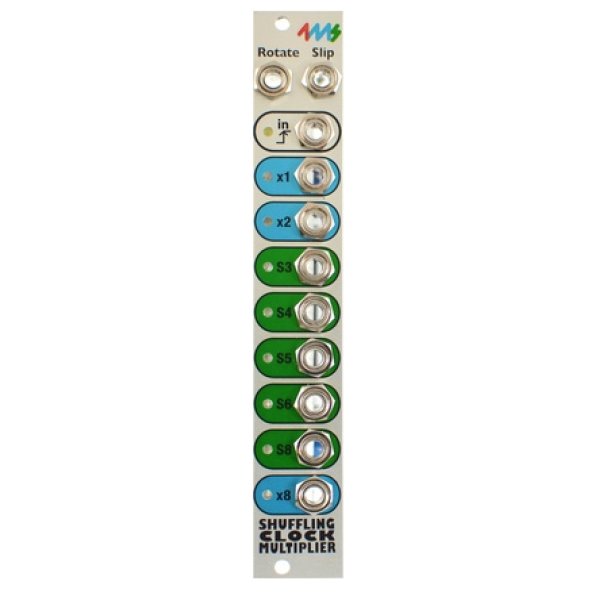

The Shuffling Clock Multiplier (SCM) produces eight multiplied clock tempos from a single input clock, ranging from x1 to x8 (x32 by using the Breakout). Some of the outputs can be shuffled/swung. The amount of shuffle is controlled by a CV Slip jack. A Rotate CV jack re-assigns the multiplication number of each jack. More features of the SCM can be controlled by the SCM Breakout.
Features:
Multiply-by-1 to Multiply-by-32, on 8 output jacks
Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)
Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects
CV Rotate jack to shift multiply-by amount on all jacks
CV Slip causes particular beats to land ahead in time
Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast

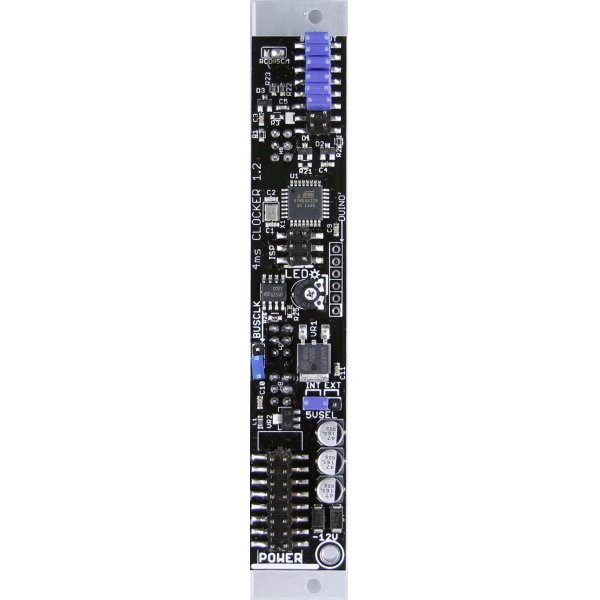

ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code
Maximum input frequency 3kHz

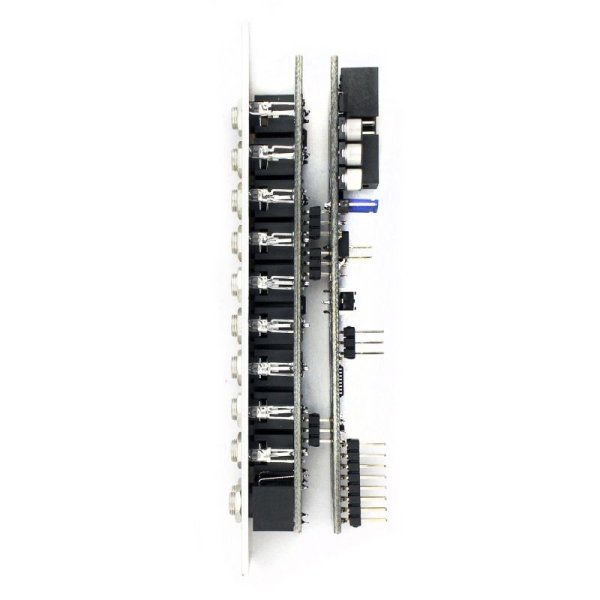

Module size:
The SCM is 4HP and 35mm (1.39") deep
Power consumption:
5VSEL Jumper set to INT:
33mA maximum power draw from +12V rail
0mA max on the +5V rail
4mA maximum power draw on the -12V rail
5VSEL Jumper set to EXT:
19mA maximum power draw on the +12V rail
14mA max on the +5V rail
4mA maximum power draw on the -12V rail
