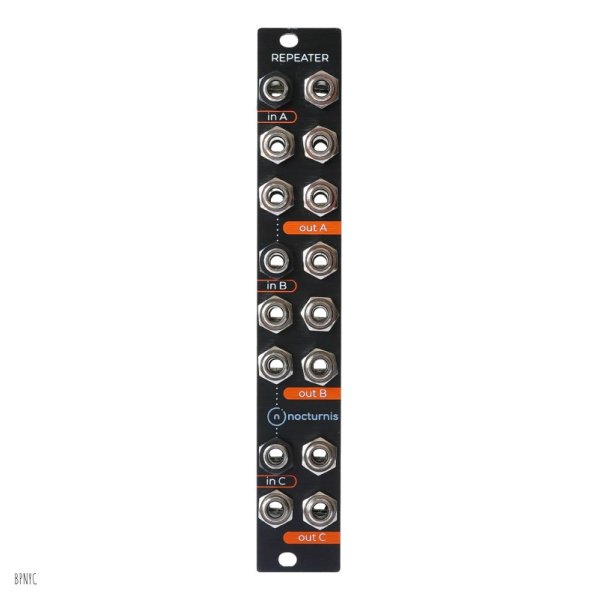

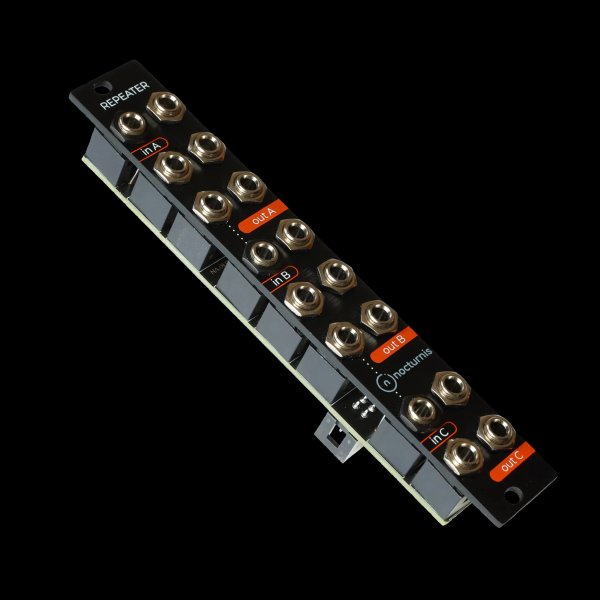

4 HP 3 channel 13 output buffered mult

FEATURES

Buffered mult

The module works as a "buffered mult", suitable for signals such as control signals, oscillator 1V/oct, audio, clock pulses, etc., anything that needs to be duplicated within your patch and remain stable and free from glitches even when new connections are being made.

Three input channels

The module accepts signals on three input jacks, each driving a number of outputs.

Thirteen outputs

The input signals are replicated to a total of thirteen output jacks, with five outputs each for channels A and B, and three for channel C.

Buffering

All the outputs are individually buffered by opamps to ensure independent operation. A resistor at each output sits within the feedback loop, which prevents a voltage drop that would otherwise depend on the impedance of the inputs of the modules connected to.

Internal connections

The channels are internally connected through separate opamp buffers, so that if nothing is connected as input to channel B or C, channel A will be duplicated to channel B and C, without having to go through extra patch cables.

Compact design

At a width of 4 HP, the module has been designed to be compact while providing as many jacks as can be reasonably fitted without the patch cables getting in the way of each other.

High quality presentation

The module has a black anodized aluminum panel with three color print and high quality controls and jacks. Delivered in a stylish black box with power cable and mounting hardware included.

4 HP

25 mm deep

30 mA +12V

30 mA -12V

0 mA 5V
