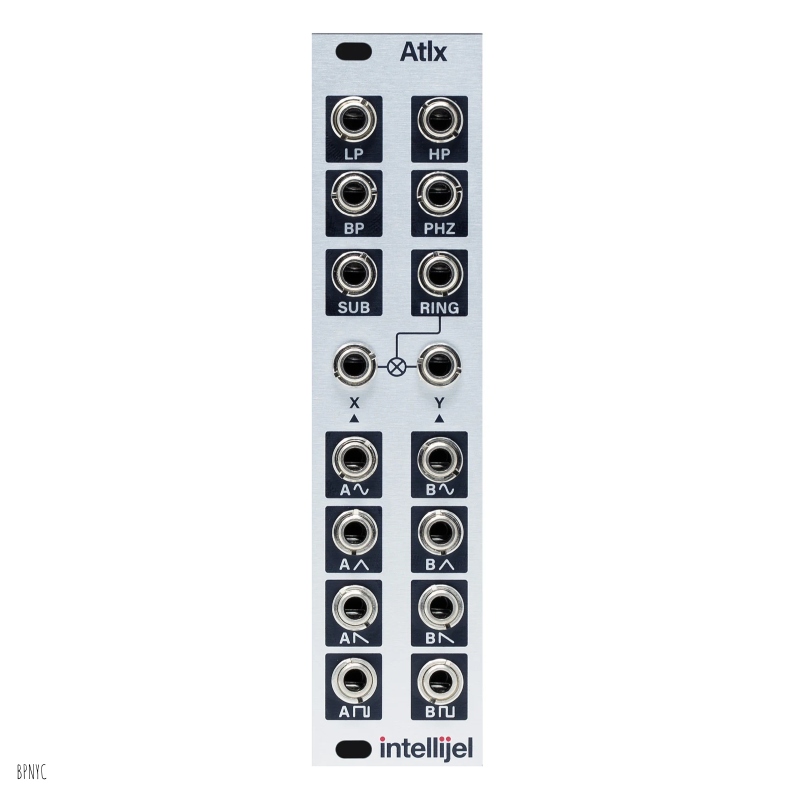

Atlx

Atlantix Expander

Patching Heaven

Adds 14 dedicated ouputs and a Ring Mod to the already powerful Atlantix module.

The Atlx expander provides 16 additional jacks to the Atlantix, including: dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing and connections to other modules.

Filter Outs

Lowpass
Highpass
Bandpass
Phazor

Ring Mod

X In
Y In
RING Out

Oscillators A/B Outs

Sine
Triangle
Saw
Square (w/ PWM on A)
Sub Square (A only)
